Lithium Battery Terminals

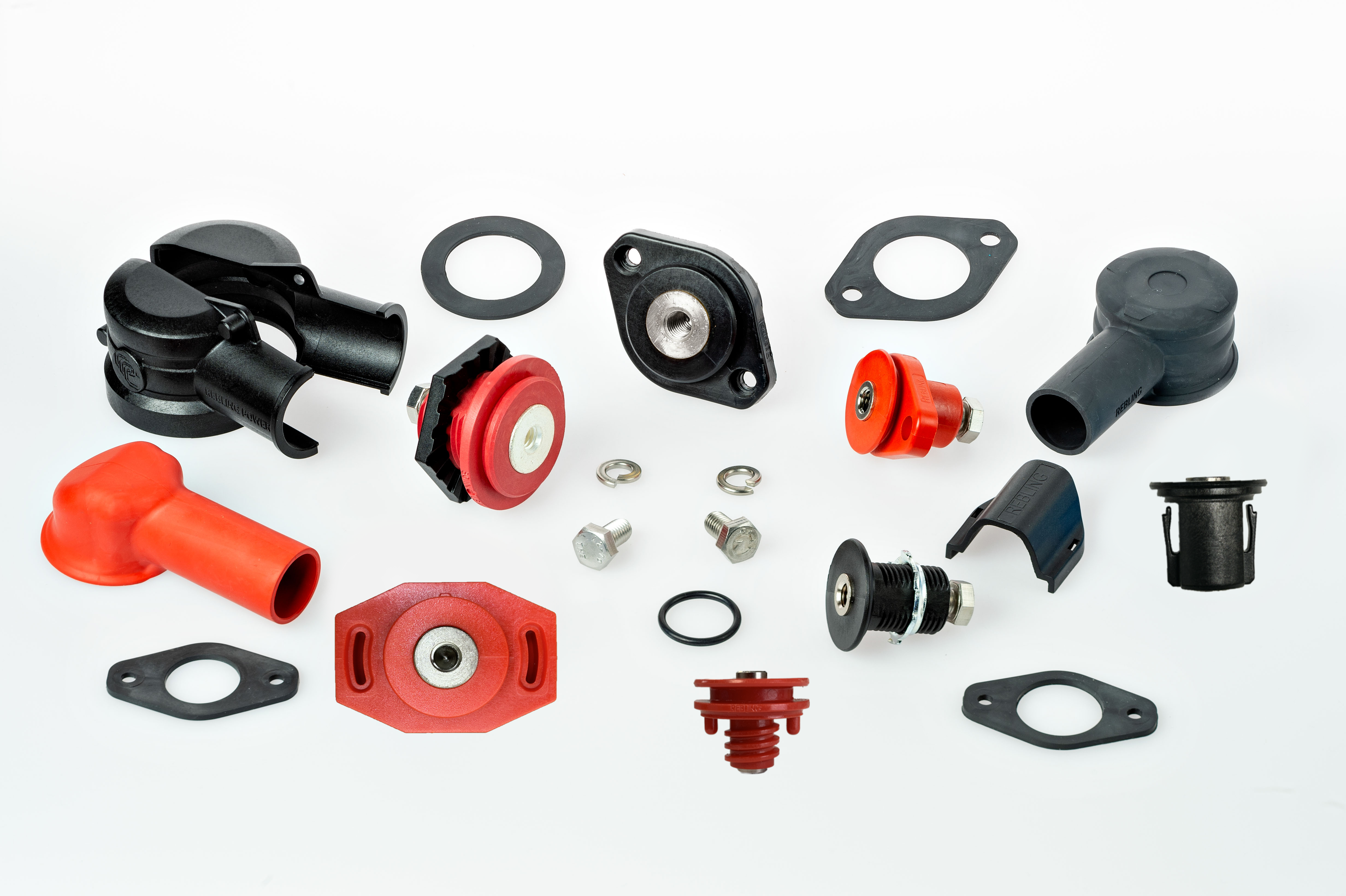

Lithium Battery Connectors Wherever you find a battery module larger than a loaf of bread, you will find Rebling’s terminals. Equipping your design with these watertight, single-pole, wrench disconnect battery terminals will enable system integrators to easily incorporate your power modules into the MicroGrid, Reserve Power, Vehicle Electrification or APU systems the end-user requires, regardless of battery chemistry. Whether you are coupling battery modules in series for a stationary power application, a liquid-cooled motive power system, a single SLI module, a telecom or data center reserve power system or simply bringing DC power from the inside to the outside of a panel, our terminals, covers and accessories are designed with your application in mind. Rebling feed-throughs are the lowest cost terminals for 100 Ah to 10 KwH lithium batteries.






Lithium Battery Connectors

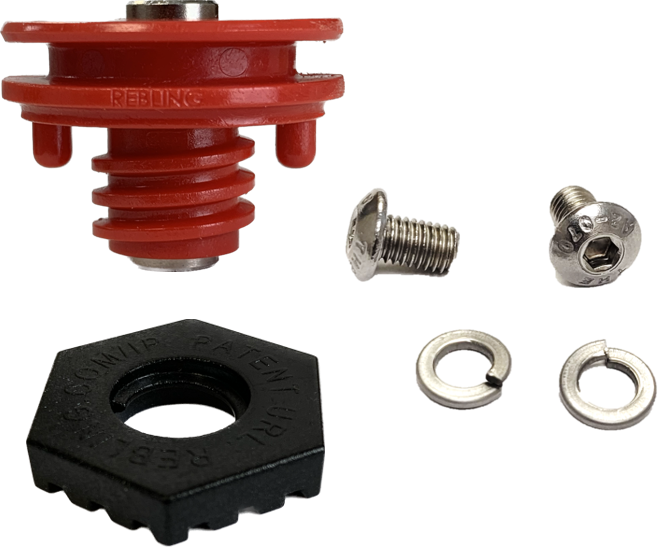

100 amp TFT-style Lithium Battery Terminal

Our TFT-style terminal (without mounting ears) is the most economical, smallest footprint, simplest environmental seal, battery terminal which can reduce connector costs on a single microgrid energy storage system by $2,000 and offers a battery module designer the protection options of snap-on rigid or flexible covers. This 100 amp terminal is available with or without Fixed-Orientation Ridges, can accommodate 8 AWG to 2 AWG (8 mm2 to 34 mm2) cables, and will have snap-on Flexible and Rigid Covers. Unlike our SFT-style Terminal, the TFT-style Terminal does not require panel mounting screws, because it has molded-in mounting pegs. These cylindrical molded pegs enable the TFT to resist the tightening torque the user will apply to the terminal’s M5 electrical connection bolts.

Learn More ← Performance, dimensions, accessories, and P/Ns → Datasheet







Lithium Battery Connectors

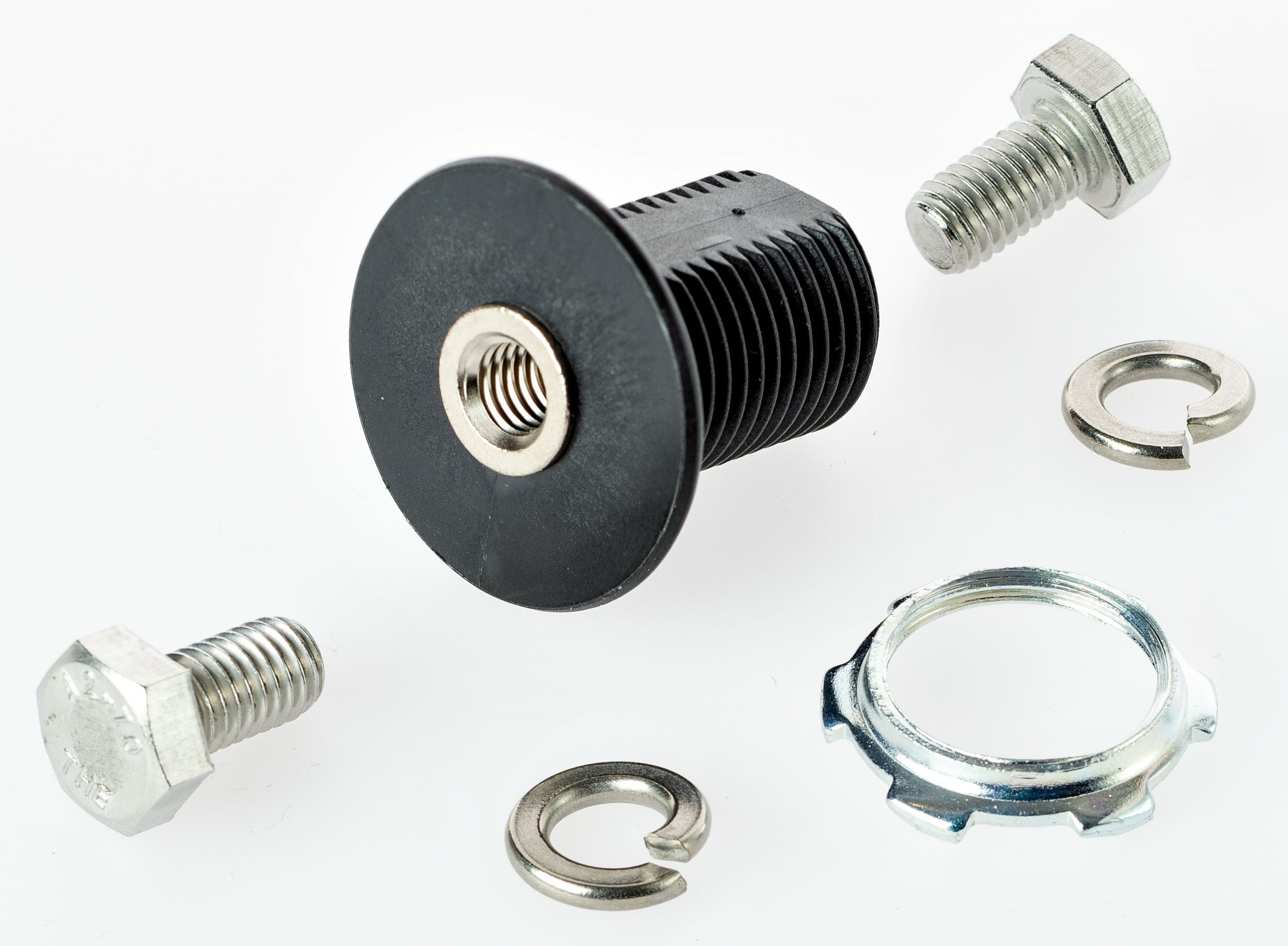

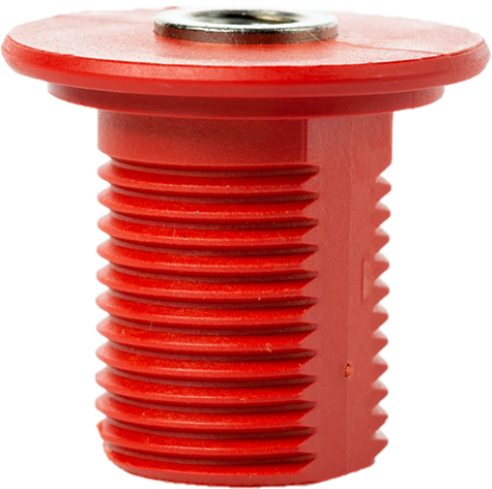

250 amp LFT-style Lithium Battery Terminal

Our LFT-style terminal (without mounting ears) is the most economical, smallest footprint, simplest environmental seal, battery terminal which can reduce connector costs on a single microgrid energy storage system by $2,000 and offers a battery module designer the protection options of snap-on rigid or flexible covers. The brass core of our LFT is available with nickel plating for harsh environments and stays cool even at extreme charge or discharge rates. Equipping your design with these watertight, single pole, wrench disconnect, battery terminals will enable system integrators to easily incorporate your power modules into the MicroGrid, Reserve Power, Vehicle Electrification or APU systems the end-user requires, regardless of battery chemistry.

Learn More ← Performance, dimensions, accessories, and P/Ns → Datasheet






Lithium Battery Connectors

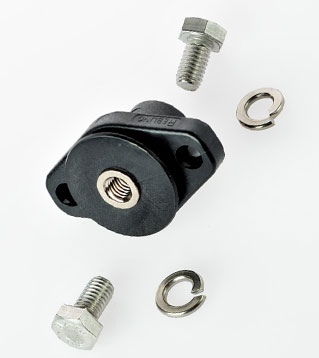

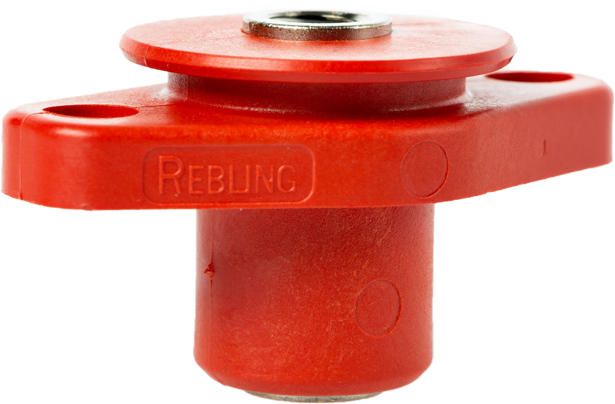

250 amp SFT-style Lithium Battery Terminal

Our SFT-style terminal (with mounting ears) has performance characteristics identical to our LFT-style terminal but is specially designed for mounting onto thin or weak panels. The SFT can also reduce the costs of a single microgrid energy storage system by $2,000 and can accept the same snap-on rigid or flexible covers as our LFT-style terminal. The brass core is available with nickel plating for harsh environments and remains cool at extreme charge or discharge rates. Equipping your design with these watertight, single pole, wrench disconnect, battery terminals will enable system integrators to easily incorporate your modules into the MicroGrid, Reserve Power, Vehicle Electrification or APU systems the end-user requires, regardless of battery chemistry.

Learn More ← Performance, dimensions, accessories, and P/Ns → Datasheet






Lithium Battery Connectors

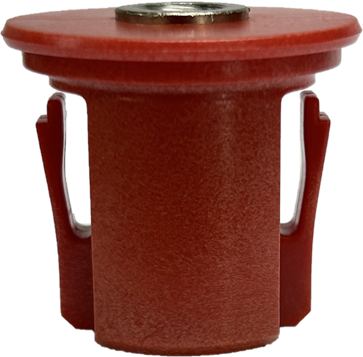

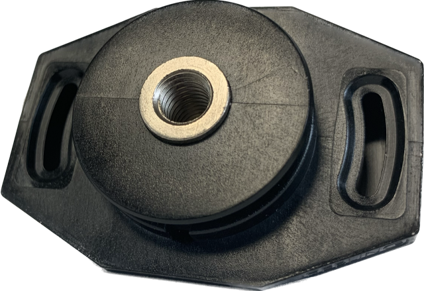

The Top Seal Terminal saves the OEM $15 of material and labor on each battery produced and reduces each battery's volume by 200 cc. The Top Seal eliminates 20 inches (500 mm) of cable + 4 crimp lugs + production labor from each battery. The Top Seal is designed for OEMs transitioning from manufacturing hundreds of batteries annually to scaling up to production levels ranging from tens of thousands to hundreds of thousands per year.

Our 250 amp Top Seal Terminal uses the same nickel-plated brass conductor, accepts the same rigid and flexible covers, and has the same performance characteristics as Rebling’s 250 amp SFT-style feed-through terminal. This terminal is intended for lithium battery OEMs which are packaging their cell packs inside molded plastic or aluminum cases that are 1 to 20 times the size of an automotive starter battery.

The Top Seal Terminal enables the OEM to attach the terminal to the lithium cell pack first, place the cell pack into the battery case, place the lid onto the battery case (allowing the terminals to poke through clearance holes in the lid), attach the lid to the terminals with flat-head sheet metal screws then screw, glue or weld the battery lid to the battery case. The Top Seal Terminal reduces the amount of labor and eliminates two cables which the OEM previously used to attach the terminals.

The “Arc of Forgiveness” feature allows the terminal to be mis-rotated by 30 degrees and still align with the screw holes in the battery lid. It also includes an “Orientation Key” feature which high precision OEMs can use to aid in alignment.


Learn More ← Performance, dimensions, accessories, and P/Ns → Datasheet






Lithium Battery Connectors

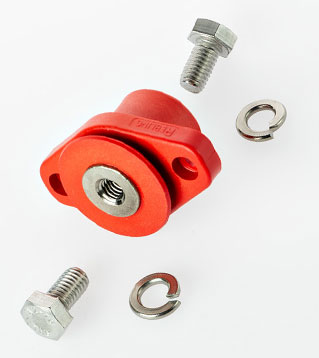

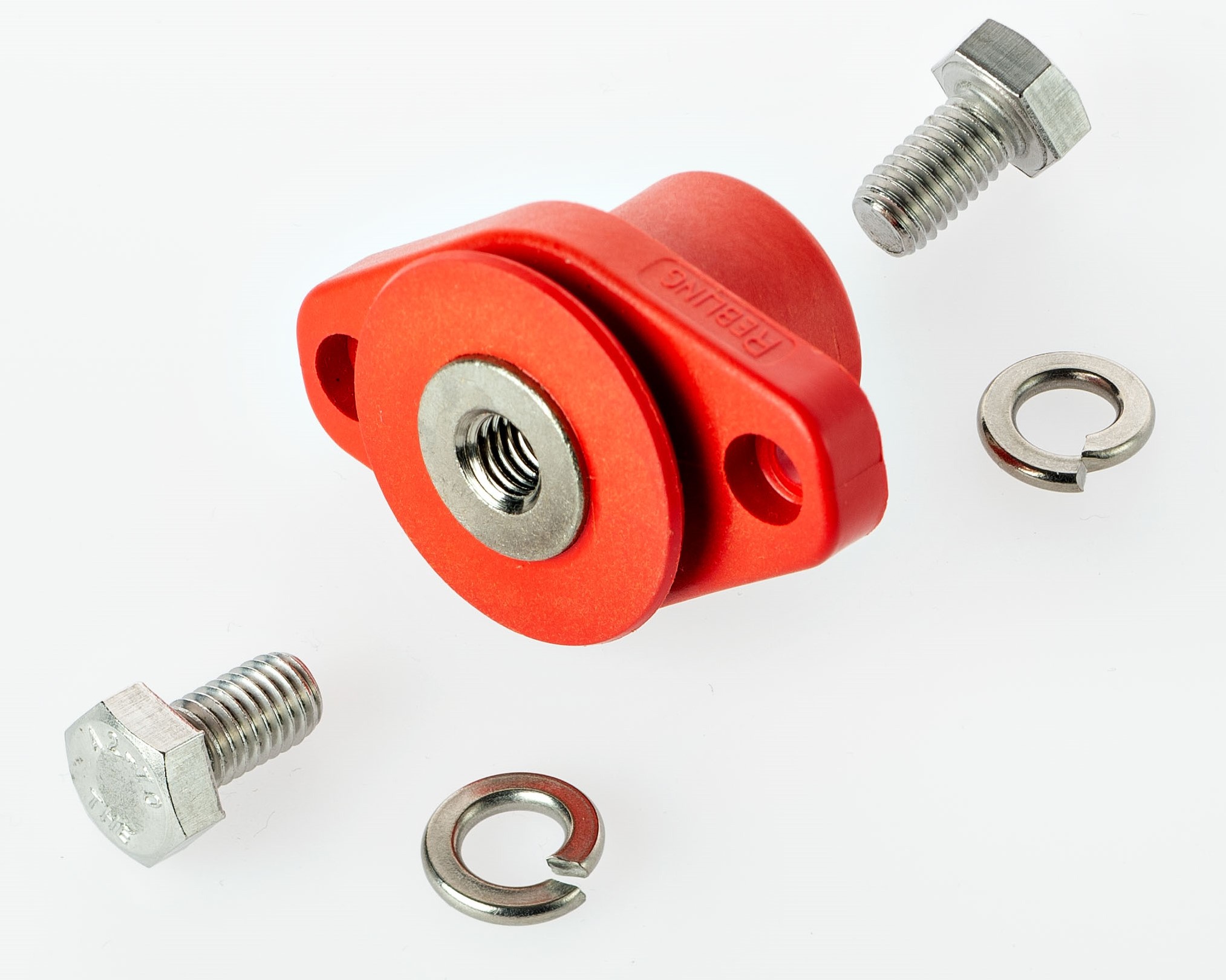

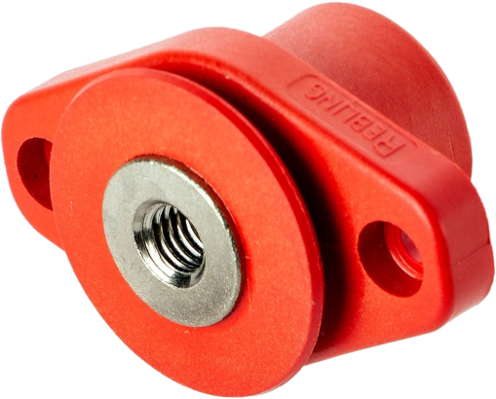

500 amp MFT-style Lithium Battery Terminal

Our MFT-style terminal (with mounting ears) provides 500 amp continuous current performance, the ability to be mounted to panels of any material or thickness, and retains the same 2,000 volt rating, IP68 sealing capability, and nickel plating option as the lower power members of our battery terminal family. The MFT can accept the same snap-on rigid or flexible covers as our LFT and SFT-style terminals. Equipping your design with these watertight, single pole, wrench disconnect, battery terminals will enable system integrators to easily incorporate your modules into the MicroGrid, Reserve Power, Vehicle Electrification or APU systems the end-user requires, regardless of battery chemistry.

Learn More ← Performance, dimensions, accessories, and P/Ns → Datasheet






Lithium Battery Connectors

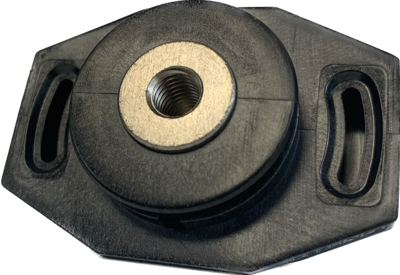

The Top Seal Terminal saves the OEM $15 of material and labor on each battery produced and reduces each battery's volume by 200 cc. The Top Seal eliminates 20 inches (500 mm) of cable + 4 crimp lugs + production labor from each battery. The Top Seal is designed for OEMs transitioning from manufacturing hundreds of batteries annually to scaling up to production levels ranging from tens of thousands to hundreds of thousands per year.

Our 500 amp Top Seal Terminal uses the same nickel-plated brass conductor, accepts the same rigid and flexible covers, and has the same performance characteristics as Rebling’s 500 amp MFT-style feed-through terminal. This terminal is intended for lithium battery OEMs which are packaging their cell packs inside molded plastic or aluminum cases that are 1 to 20 times the size of an automotive starter battery.

The Top Seal Terminal enables the OEM to attach the terminal to the lithium cell pack first, place the cell pack into the battery case, place the lid onto the battery case (allowing the terminals to poke through clearance holes in the lid), attach the lid to the terminals with flat-head sheet metal screws then screw, glue or weld the battery lid to the battery case. The Top Seal Terminal reduces the amount of labor and eliminates two cables which the OEM previously used to attach the terminals.

The “Arc of Forgiveness” feature allows the terminal to be mis-rotated by 30 degrees and still align with the screw holes in the battery lid. It also includes an “Orientation Key” feature which high precision OEMs can use to aid in alignment.

Learn More ← Performance, dimensions, accessories, and P/Ns → Datasheet






Lithium Battery Connectors

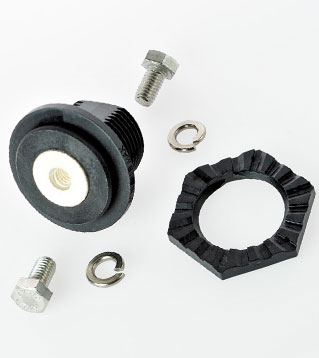

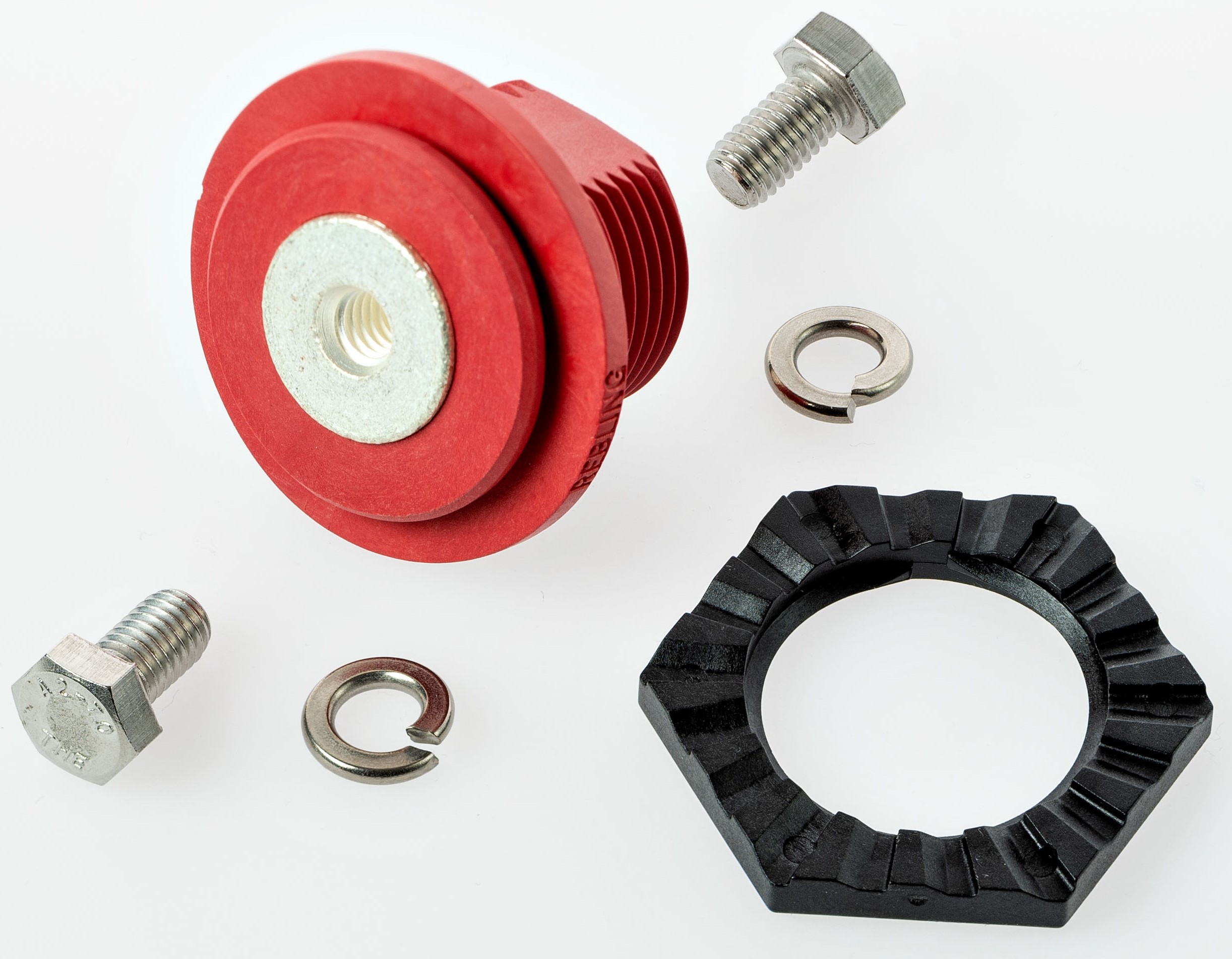

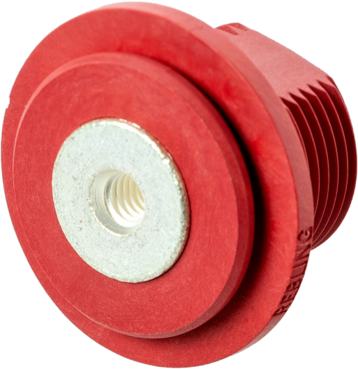

750 amp BFT-style Lithium Battery Terminal

Our 750 amp BFT-style terminal (without mounting ears) consists of a nickel-plated brass core which stays cool at 750 amps of continuous current or when charge and discharge currents hit short term peaks of 4,000 amps. These small footprint terminals are designed for the temperature-sensitive environment of lithium battery cells and the charging rates of ultracapacitors and supercapacitors. Equipping your power module with these watertight, single-pole, wrench disconnect, brass battery terminals will facilitate the incorporation of your modules into cutting edge GenSet, APU or Vehicle Electrification systems

Learn More ← Performance, dimensions, accessories, and P/Ns → Datasheet






Lithium Battery Connectors

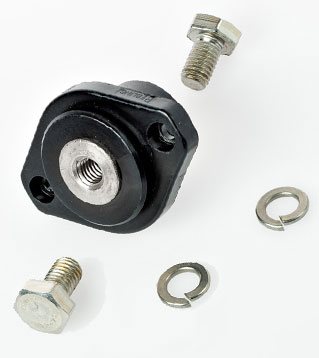

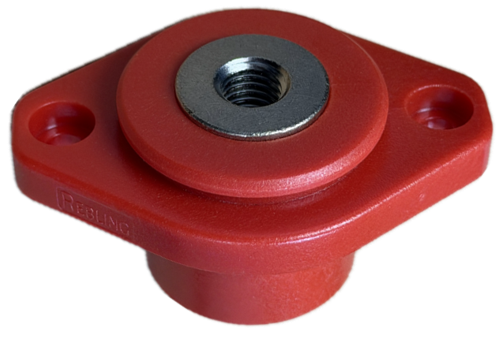

750 amp XFT-style Lithium Battery Terminal

Our 750 amp XFT-style terminal (with mounting ears) has performance characteristics identical to our BFT-style 750 amp terminal but is specially designed for mounting onto thin or weak panels. The XFT-style 750 amp terminal’s nickel-plated brass core stays cool at 750 amps of continuous current or for short term peaks of 4,000 amps. These terminals are designed for the temperature-sensitive environment of lithium battery cells and the charging rates of ultracapacitors and supercapacitors. Equipping your power module with these watertight, single-pole, wrench disconnect, brass battery terminals will facilitate the incorporation of your modules into cutting edge GenSet, APU or Vehicle Electrification systems.

Learn More ← Performance, dimensions, accessories, and P/Ns → Datasheet






Lithium Battery Connectors

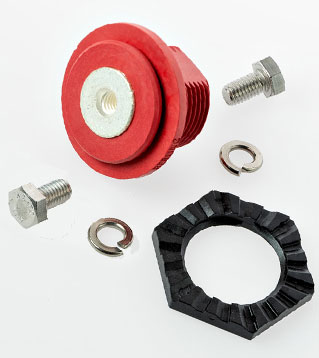

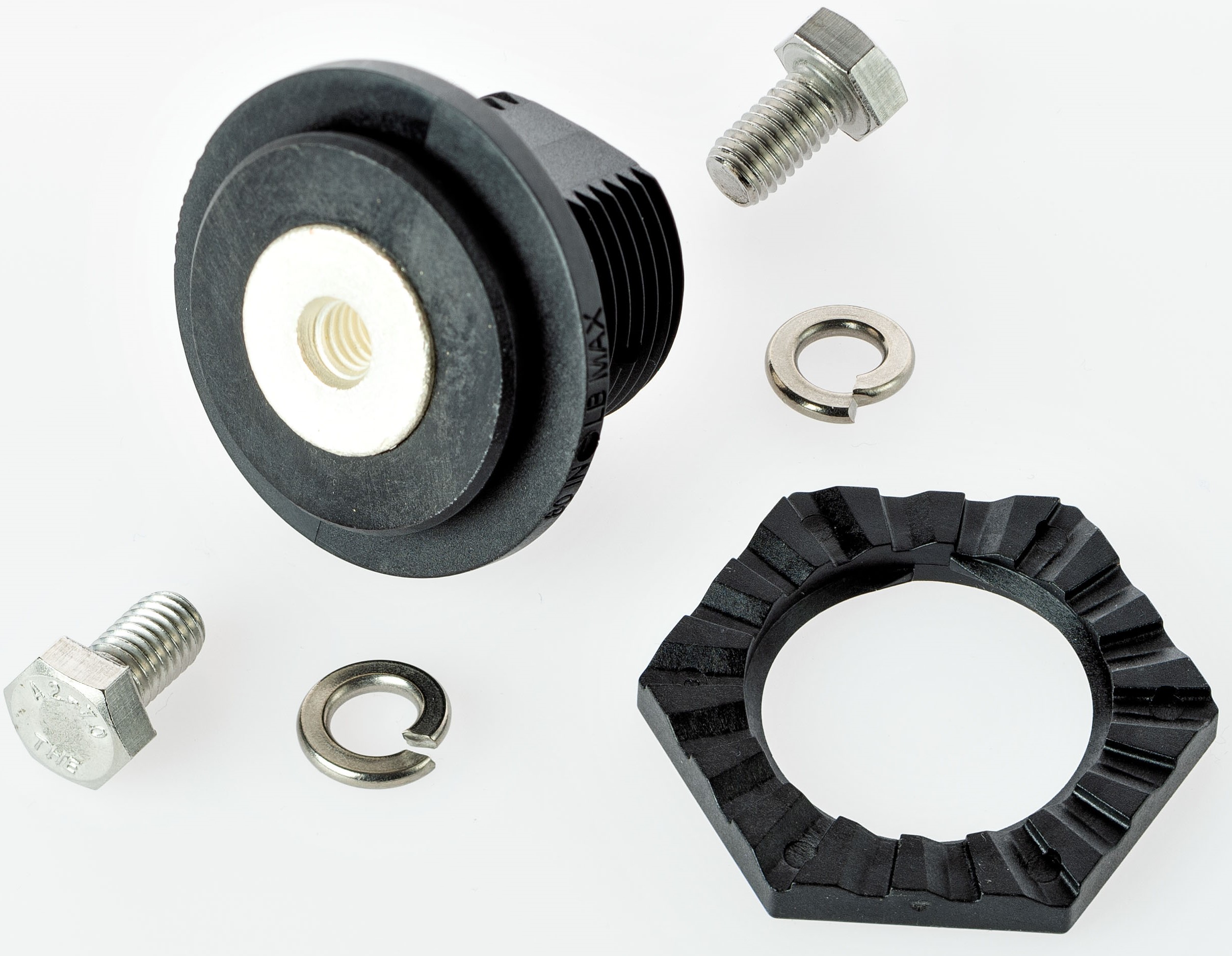

1,000 amp BFT-style Lithium Battery Terminal

Our 1,000 amp BFT-style terminal (without mounting ears) consists of a nickel-plated copper core which stays cool at 1,000 amps of continuous current or when charge and discharge currents hit short term peaks of 5,000 amps. These small footprint terminals are designed for the temperature-sensitive environment of lithium battery cells and the charging rates of ultracapacitors and supercapacitors. Equipping your power module with these watertight, single-pole, wrench disconnect, copper battery terminals will facilitate the incorporation of your modules into cutting edge EV, APU, Fuel Cell and Weapons Systems.

Learn More ← Performance, dimensions, accessories, and P/Ns → Datasheet






1,000 amp Connector

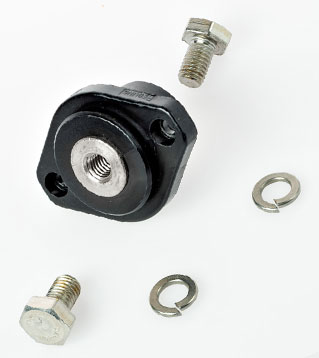

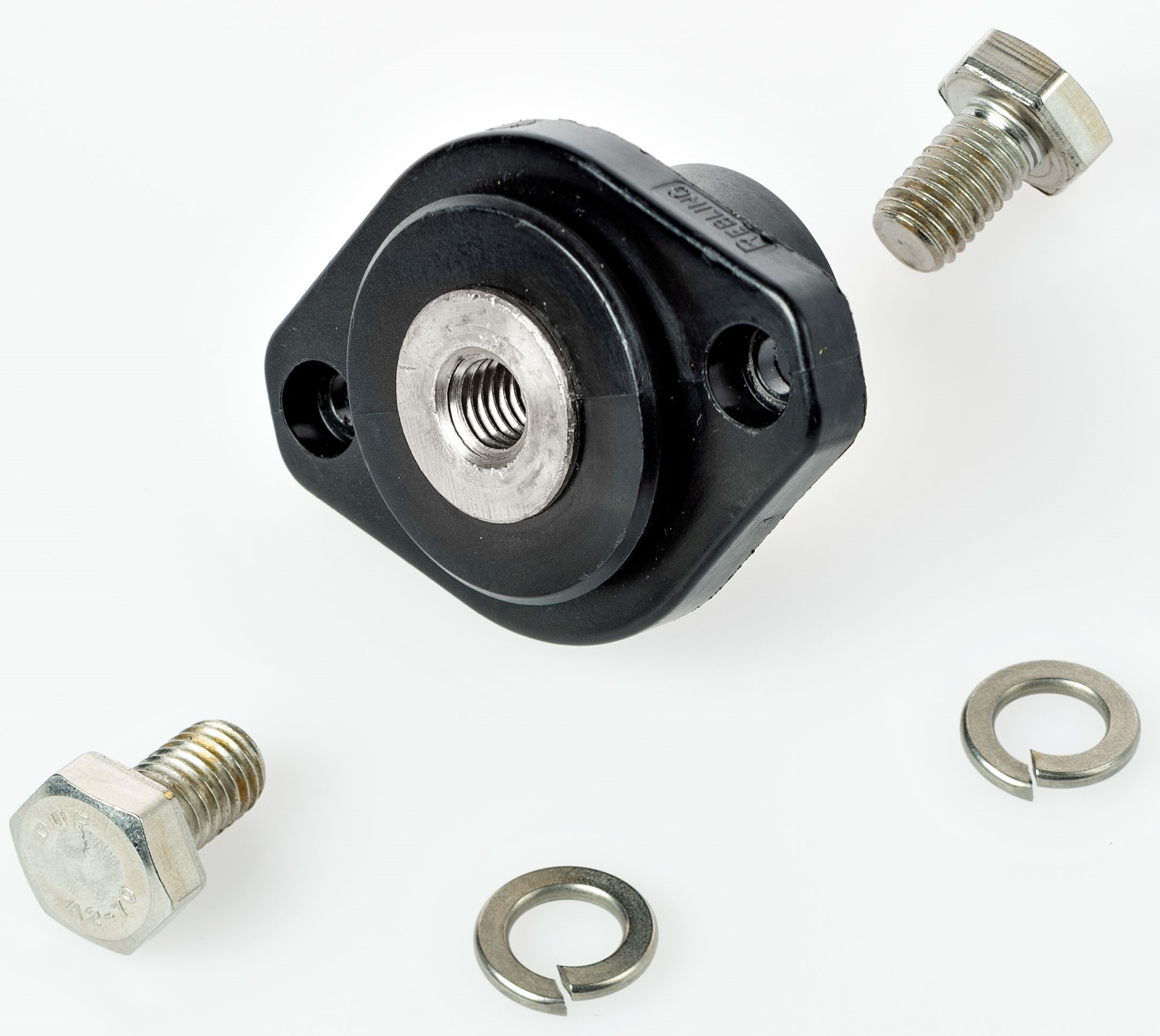

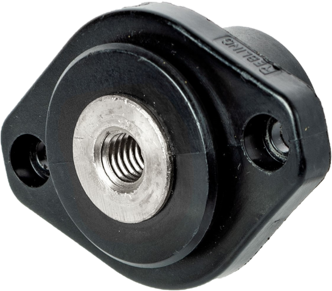

1,000 amp XFT-style Lithium Battery Terminal

Our 1,000 amp XFT-style terminal (with mounting ears) has performance characteristics identical to our 1,000 amp BFT-style terminal but is specially designed for mounting onto thin or weak panels. The 1,000 amp XFT-style terminal’s nickel-plated copper core stays cool at 1,000 amps of continuous current or at short term peaks of 5,000 amps. These terminals are designed for the temperature sensitive environment of lithium battery cells and the charging rates of ultracapacitors and supercapacitors. Equipping your power module with these watertight, single pole, wrench disconnect, copper battery terminals will facilitate the incorporation of your modules into cutting edge EV, APU, Fuel Cell, and Weapons Systems.

Learn More ← Performance, dimensions, accessories, and P/Ns → Datasheet
