500 amp MFT-style Lithium Battery Terminal

Product Information

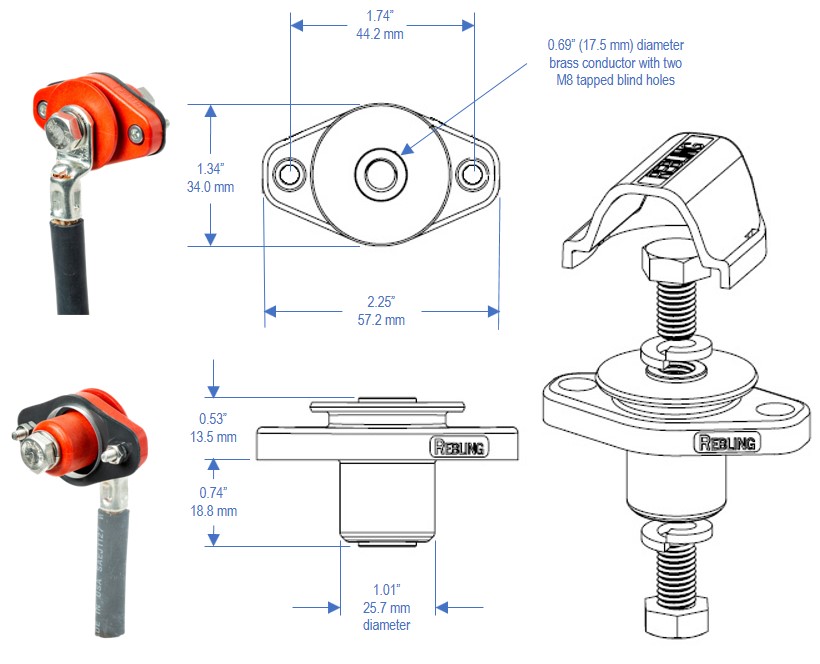

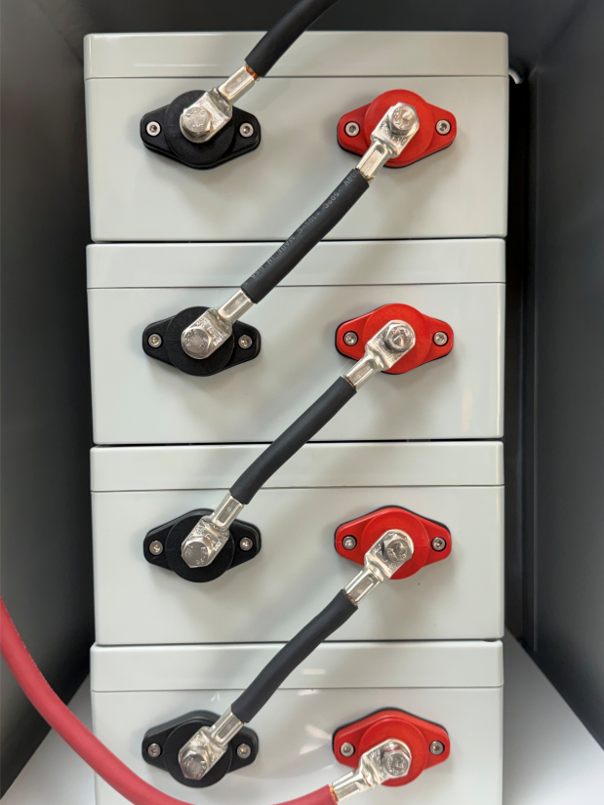

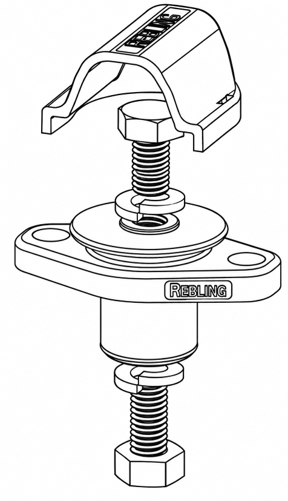

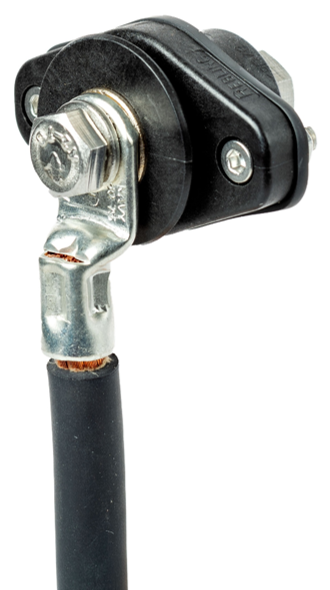

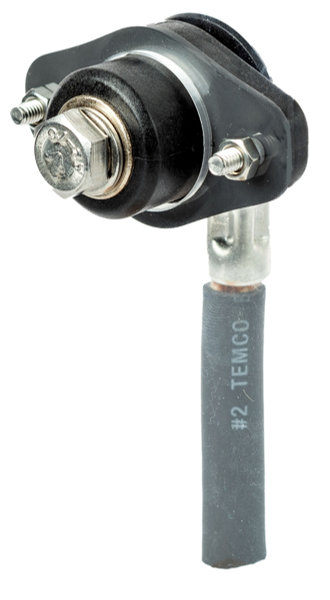

Our MFT-style terminal (with mounting ears) provides 500 amp continuous current performance, the ability to be mounted to panels of any material or thickness, and retains the same 2,000 volt rating, IP68 sealing capability, and nickel plating as the lower power members of our battery terminal family. The MFT can accept the same snap-on rigid or flexible covers as our LFT and SFT-style terminals. Equipping your design with these watertight, single pole, wrench disconnect, battery terminals will enable system integrators to easily incorporate your modules into the MicroGrid, Reserve Power, Vehicle Electrification, or APU systems the end-user requires, regardless of battery chemistry.

Nickel Plated Terminal Kit		MFT-P-B Black		MFT-P-R Red		MFT-P-E Blue
Short Rigid Snap-On Cover		698A1789-S-B Black		698A1789-S-R Red		698A1789-S-E Blue
Long Rigid Snap-On Cover		698A1789-L-B Black		698A1789-L-R Red		698A1789-L-E Blue
Flexible Snap-On Cover		713A1806-B Black		713A1806-R Red		713A1806-E Blue

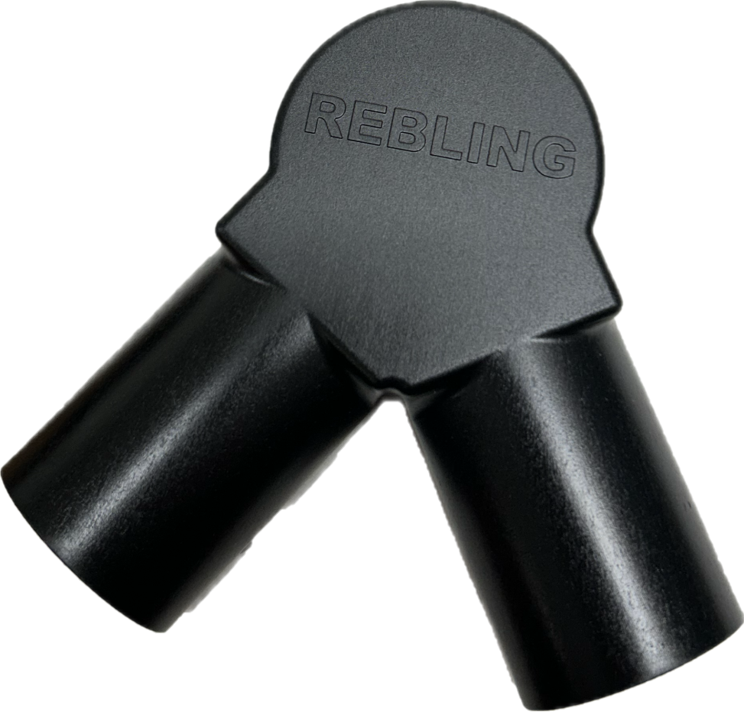

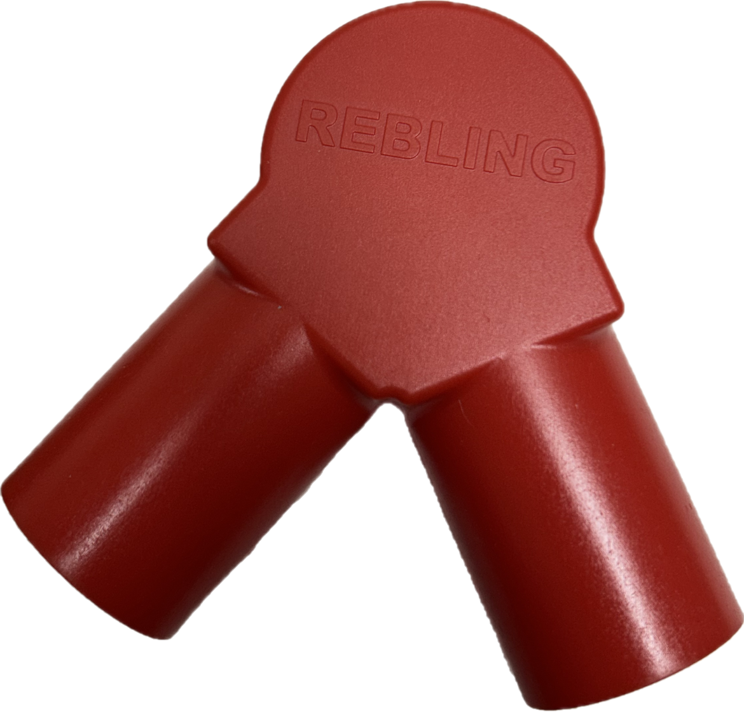

Angled Covers for Two Cables		850A1991-B Black		850A1991-R Red

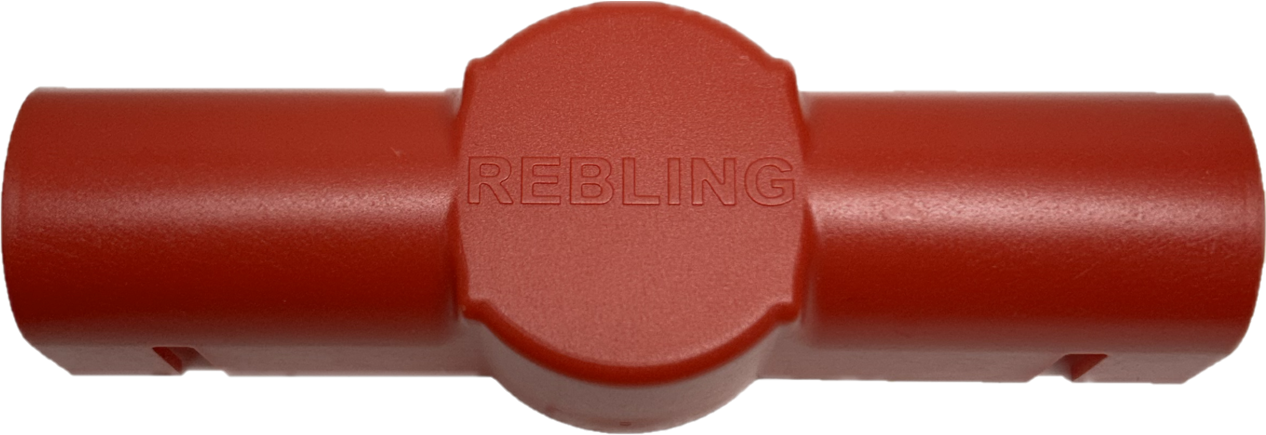

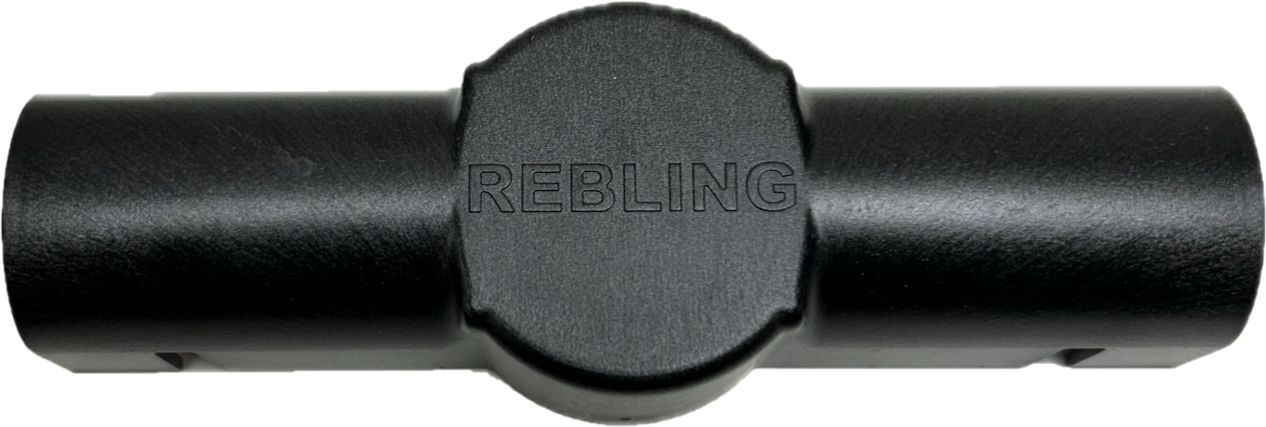

Straight Covers for Two Cables		850A1992-B Black		850A1992-R Red
Gasket		716A1815 Black
