Avionics / MIL-Spec Battery Receptacles


Rebling is the only manufacturer in the world certified to produce high-current DC connectors for flying vehicles (military, commercial, passenger, cargo, fixed wing, rotary wing, RPAs/Drones). Rebling’s technology, quality, and reliability can be summed up in one statement: “35 billion air miles per year without a failure.” All the models of our two-pole, avionics-grade, quick disconnect, bulkhead-mounted receptacles are designed to mate with our 7007, 7013, 7016, and 7017 avionics-grade, cable-mounted plugs.

The members of our avionics family of connectors conform to and are QPL’d to Mil Specs MS25182, MS3509, Mil-PRF-18148, Mil-E-18148, Mil-E-81099 and are available under Rebling’s Cage Code 30525. 81099 and are available with a variety of termination options and in a variety of colors. These same Style 1 receptacles are offered with threaded, right-angle terminal adapters which are explained on our Receptacles with Rear Adapters page and can be used with the gaskets shown on our Gaskets page. A Style 1 receptacle has a smaller footprint than a Style 2 receptacle but the contact centerlines are identical and both Style 1 and Style 2 receptacles mate with the exact same cable-mounted plugs. Both Style 1 & Style 2 fall under the 7002 Series Battery Receptacles.

If your application is ground-based (not on a flying vehicle) and requires the same level of reliability and tool-less connect and disconnect capabilities, see our "Double Pole Cable-to-Panel" product page for a Commercial version of this Avionics connector. Our Commercial grade receptacle has six color-coded mechanical keying combinations which can be used to differentiate various voltage or current levels to prevent errors by your system assembly, operations or maintenance personnel.

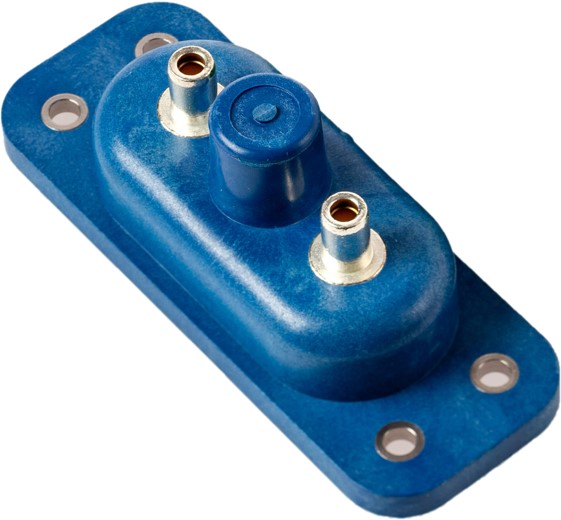

7002 Receptacle

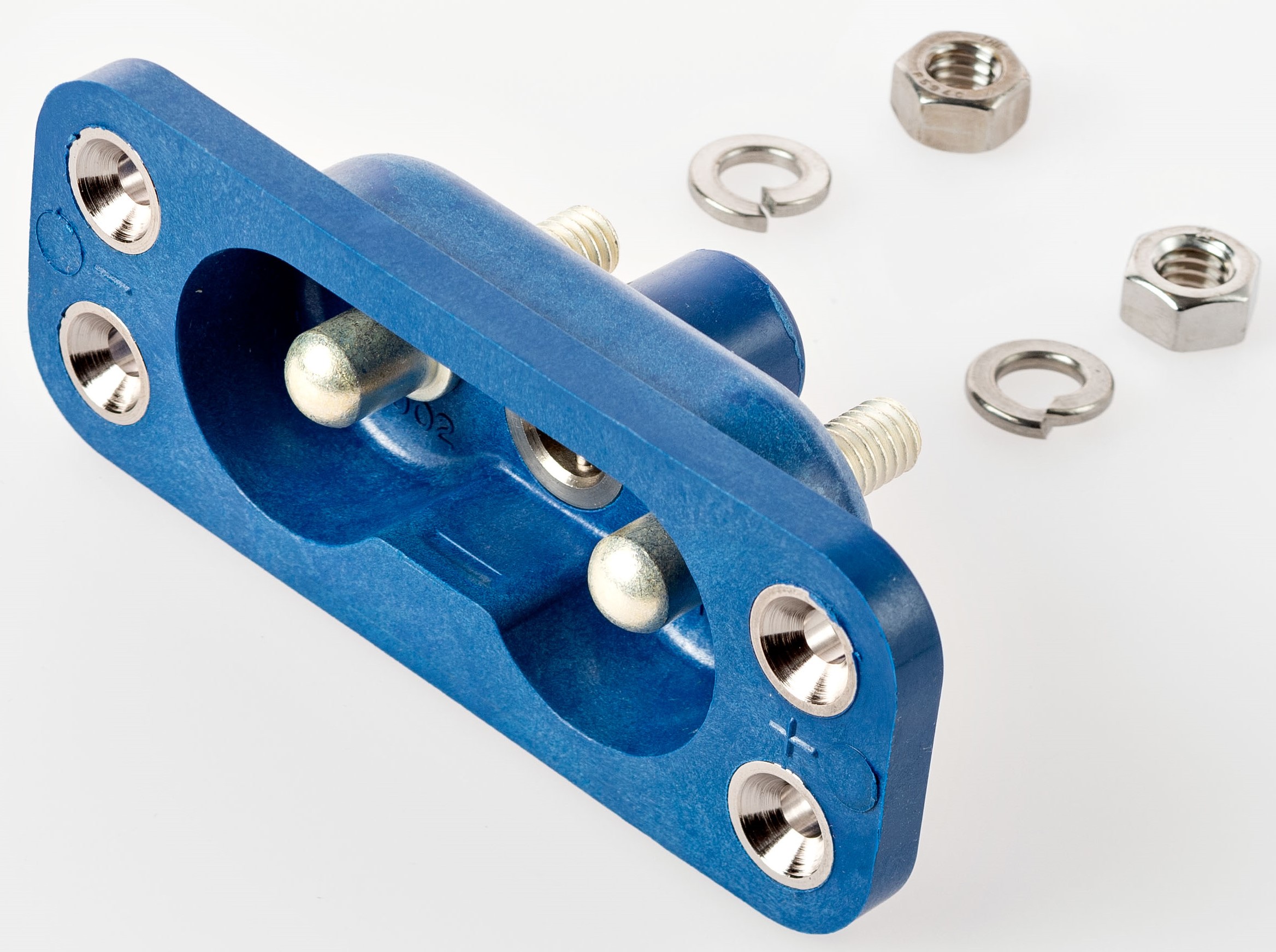

Style 1 Avionics / MIL-Spec Battery Receptacle

These two-pole, bulkhead-mounted, non-keyable receptacles are QPL’d to Mil Specs MS25182, MS3509, Mil-PRF-18148, Mil-E-18148, Mil-E-81099 and are available under Rebling’s Cage Code 30525. 81099 and are available with a variety of termination options and in a variety of colors. These receptacles are offered with threaded, right-angle terminal adapters.

Learn More ← Performance, dimensions, accessories, and P/Ns  Datasheet






 7002 Receptacle

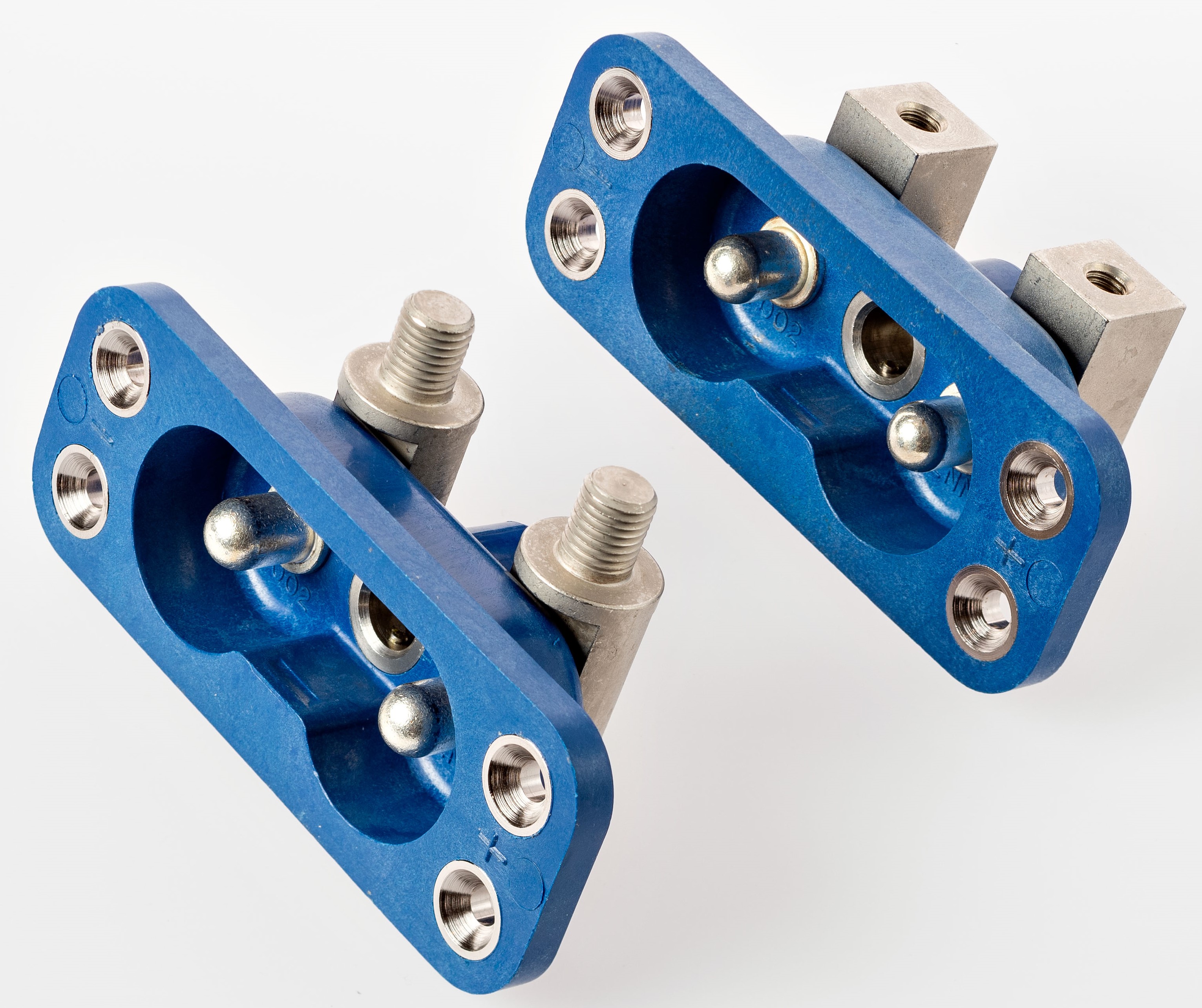

Style 1 Avionics / MIL-Spec Battery Receptacle - w/ Rear Adapters

The members of Rebling’s family of avionics bulkhead-mounted receptacle connectors conform to and are QPL’d to Mil Specs MS25182, MS3509, Mil-PRF-18148, Mil-E-18148, and Mil-E-81099 and are available under Rebling’s Cage Code 30525. The receptacles highlighted on this datasheet are those which have right-angle adapters as the termination configuration at the rear of the receptacle. Receptacles with different profiles and different rear termination options can be found on other datasheets.

Learn More Performance, dimensions, accessories, and P/Ns  Datasheet

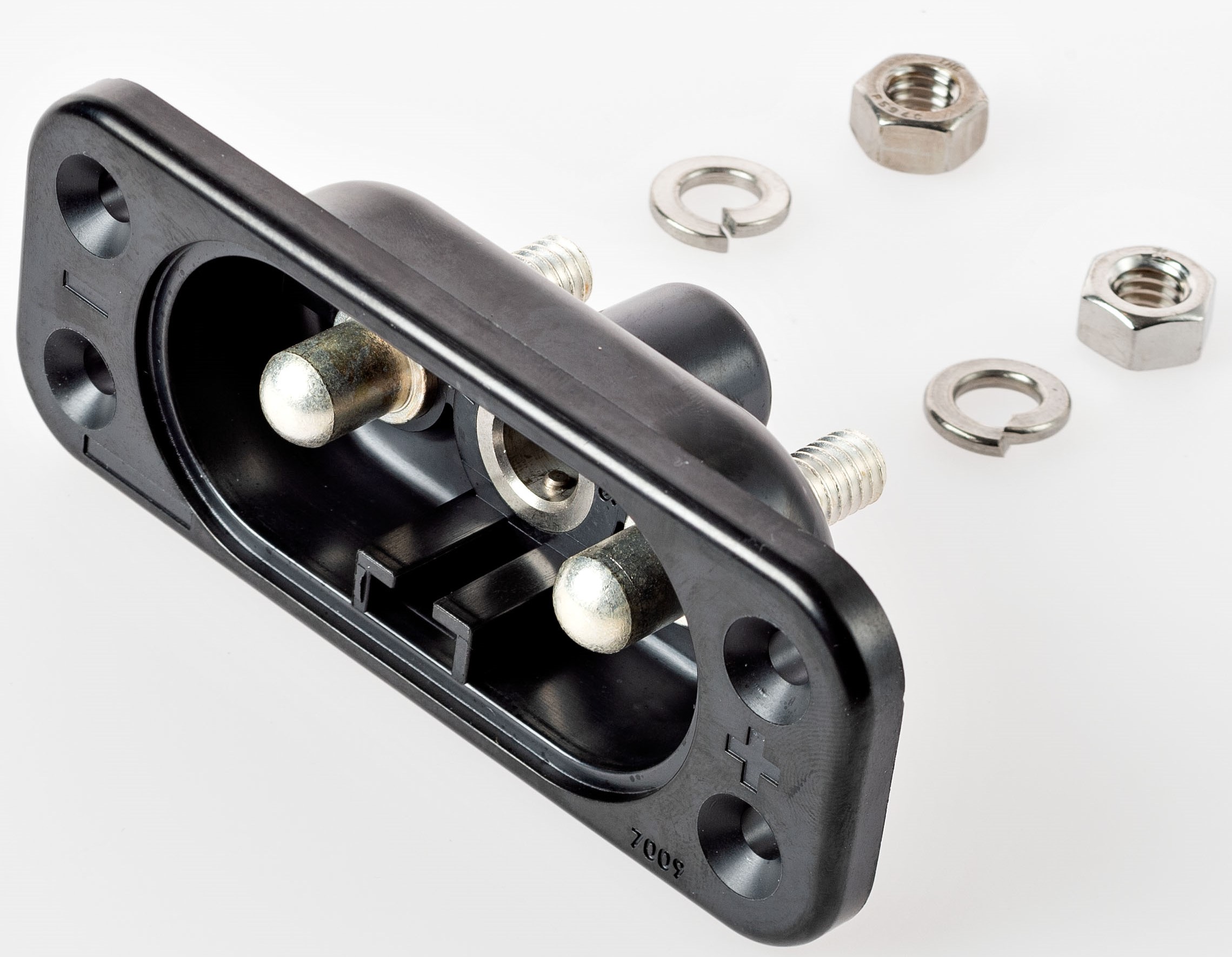

7009 Receptacle

Style 1 Avionics / MIL-Spec High-Temperature Battery Receptacle

To address the heightened demand in non-avionics applications for high current, high voltage DC connectors, Rebling has coupled its time-proven quick disconnect technology with commercial-grade manufacturing techniques to offer a family of bulkhead-mounted receptacles with features required by OEMs in the markets we serve (motive power, stationary power, engine starting, auxiliary power, and renewable power). These two-pole bulkhead-mounted receptacles are designed to mate with our commercial-grade, cable-mounted plug connectors.

Learn More Performance, dimensions, accessories, and P/Ns Datasheet

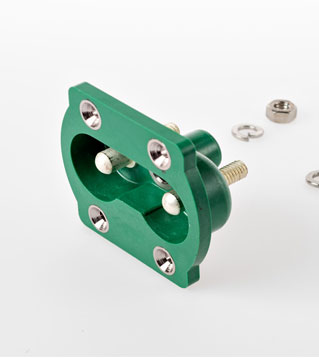

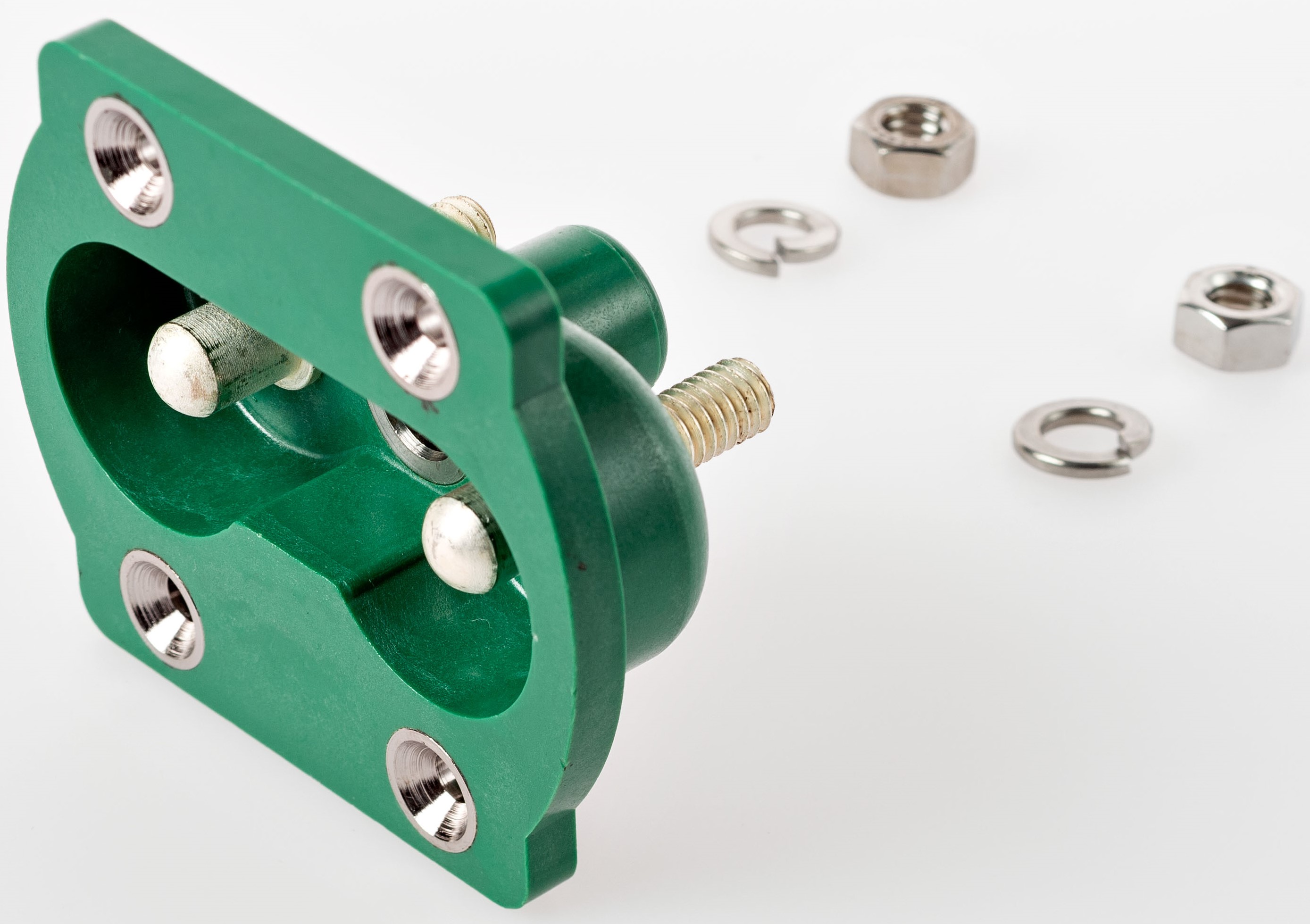

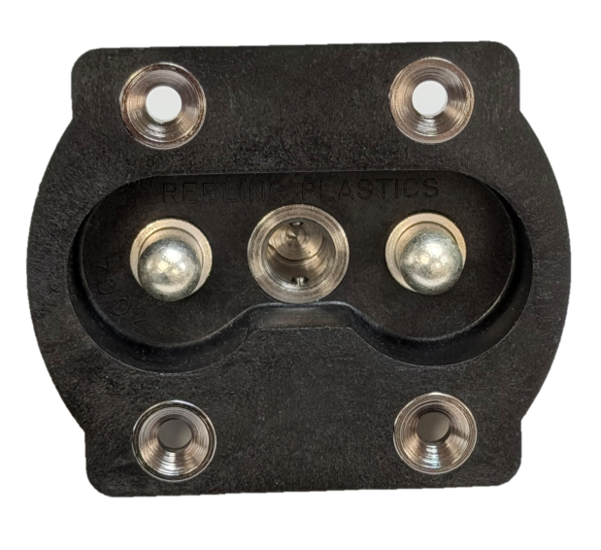

Style 2 Avionics / MIL-Spec Battery Receptacle

The members of Rebling’s family of avionics bulkhead-mounted receptacle connectors conform to and are QPL’d to Mil Specs MS25182, MS3509, Mil-PRF-18148, Mil-E-18148, and Mil-E-81099 and are available under Rebling’s Cage Code 30525. The receptacles highlighted on this datasheet are those which are of the Style 2 variety. Receptacles with Style 1 different profiles and different rear termination options can be found on other datasheets.

Learn More ← Performance, dimensions, accessories, and P/Ns  Datasheet

Available exclusively through our authorized distributor, Flame Enterprises.

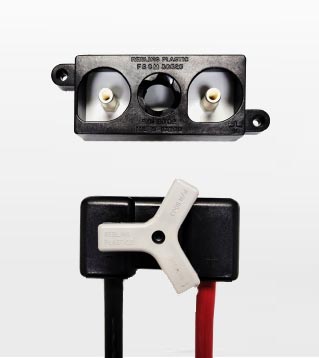

8002 Receptacle and 8003 Plug

The 8002 panel-mounted Receptacle and the 8003 cable-mounted Plug were defined in 1954 by MIL-B-83769 & MS3349-3 and were adopted on the C-130 transport plane in 1957. The configuration and MIL SPECs of these connectors were superseded in 1960 by MIL-PRF-18148 which established Rebling's Style 1 Avionics Receptacles and Plugs as the new Avionics Battery connection standard.

Learn More ← Performance, dimensions, accessories, and P/Ns  Datasheet

Available exclusively through our authorized distributor, Flame Enterprises.
