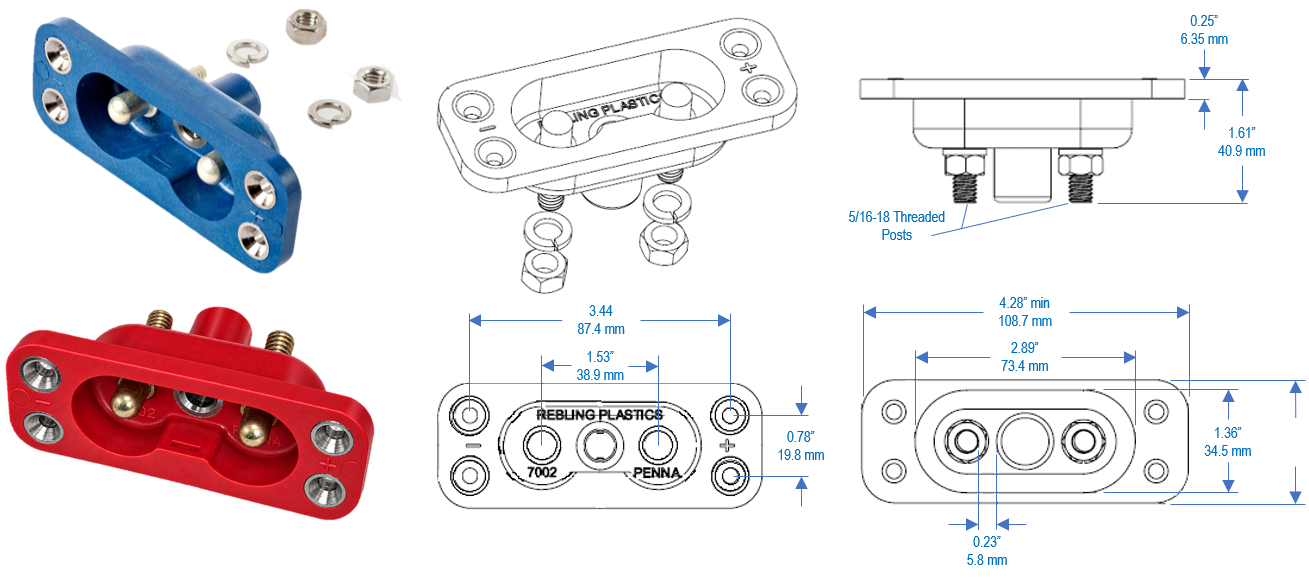

Style 1 Avionics / MIL-Spec Battery Receptacle - Threaded Posts

For complete technical information: Threaded Posts Datasheet

ELECTRICAL:

Rated Current 750 amps
Peak Current 1,500 amps
Rated Voltage 750 volts
Withstand Voltage 2,500 volts
Max Contact Resistance 60 μΩ

MECHANICAL:

Max Cable Size 3/0 (80 mm2)
Mechanical Shock 50 Gs (3 axes)
Vibration
 10 Gs (3 axes)

ENVIRONMENTAL:

Flammability UL94V-0
Sealing
 IP68
Operating Temp -85℃ to +71℃

Product Information

Receptacle
Kits		 7002-5-20
Threaded Posts, Gasket,
Pink		 7002-5-30G
Threaded Posts, Green		 7002-7
Threaded Posts,
Blue
  7002-9
Threaded Posts,
Black		   7002-27
Threaded Posts, Keyway,
Blue		   7002-5-20G
Threaded Posts, Gasket,
Green
    7002-5-30
Threaded Posts, Pink		   7002-5-30G-1
Threaded Posts, Special Packaging, Extra Hex Nuts, Green


Gasket 700222-1
Gasket with Dust-Cover (black)		 643A1625
EMI Conductive Gasket (black)


Backshell 644A1626
1.49" inside depth		 644A1627
2.49" inside depth


Mating Plug 7007
4-Wire Cable Mounted Plug for Parallel Connections (Round Handle)		 7013
2-Wire Cable Mounted Plug
(T Handle)
  7016
2-Wire Cable Mounted Plug
(T or Round Handle)		 7017
2-Wire Cable Mounted Plug
(T or Round Handle)
