Double Pole Cable to Panel (EMI Shielded)


To meet the EMI and ESD requirements of certain electrified vehicles, energy storage systems,s or control system applications, Rebling offers its two-pole, quick- disconnect EMI-shielded connectors. Our patented Panel-mounted EMI receptacle (7009-51) is created using a multiple-stage injection molding process which surrounds the receptacle’s silver-plated copper pins with non-conductive black plastic which is, in turn, surrounded by conductive gray plastic.

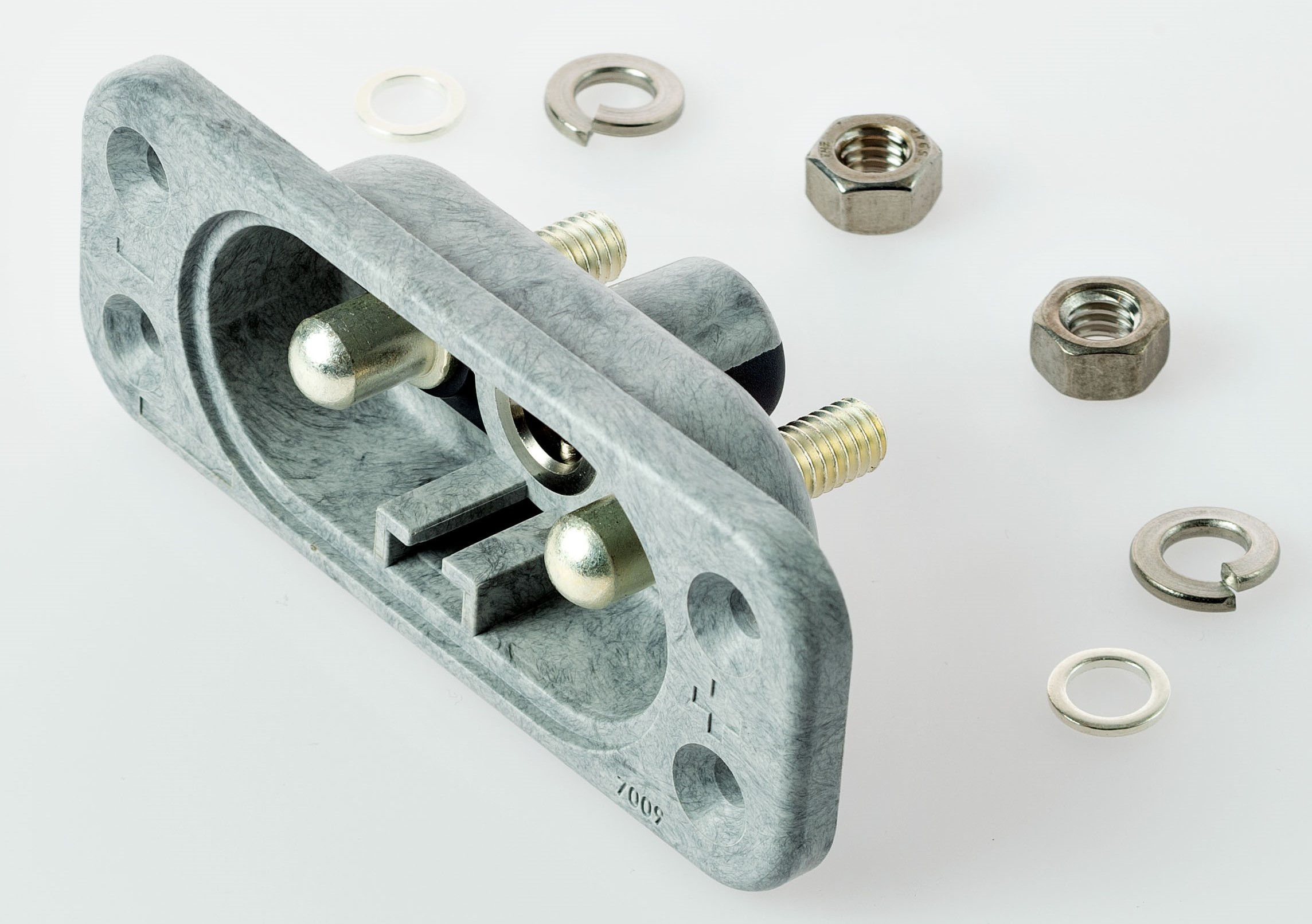

7009-51 EMI Bulkhead Receptacle

7009-51 EMI Receptacle

Our patented Panel-mounted EMI receptacle (7009-51) is created using a multiple-stage injection molding process which surrounds the receptacle’s silver-plated copper pins with non-conductive black plastic which is, in turn, surrounded by conductive gray plastic. The conductive gray plastic of the Panel-mounted receptacle is grounded to the metal Panel as well as to the conductive gray plastic backshell of the cable-mounted plug connector (7020-E) via a conductive gasket (643A1625). The EMI receptacle and plug are not keyable but can be used with the optional magnetic HVIL switch (643A1757).


Learn More ← Performance, dimensions, accessories, and P/Ns → Datasheet

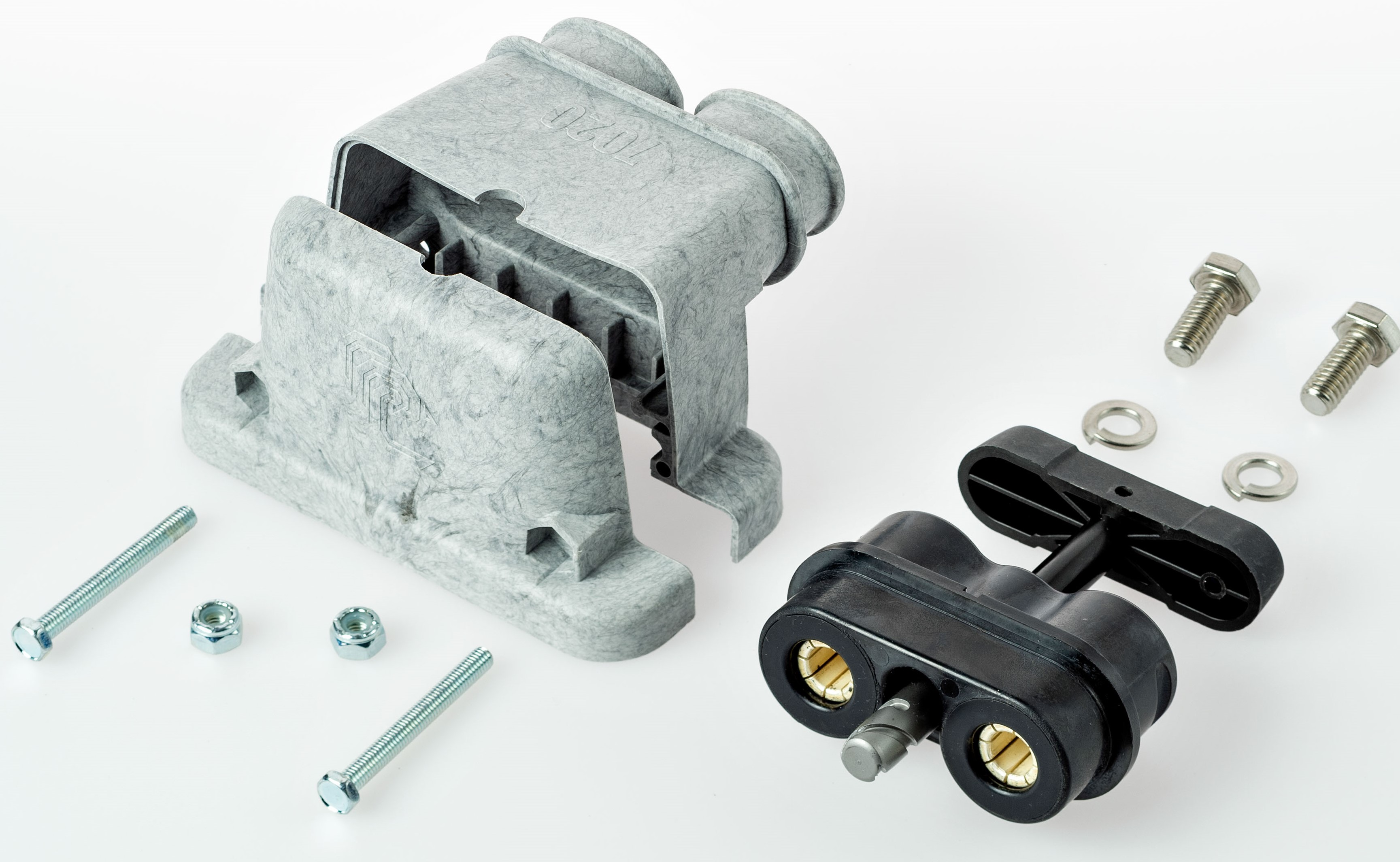

7020 Cable Mounted Plug

7020-E EMI Cable-Mounted Plug

The conductive grayplastic of the Panel-mounted receptacle is grounded to the metal Panel as well as to the conductive gray plastic backshell of the cable-mounted plug connector (7020-E) via a conductive gasket (643A1625). The EMI receptacle and plug are not keyable but can be used with the optional magnetic HVIL switch (643A1757).


Learn More ← Performance, dimensions, accessories, and P/Ns → Datasheet
