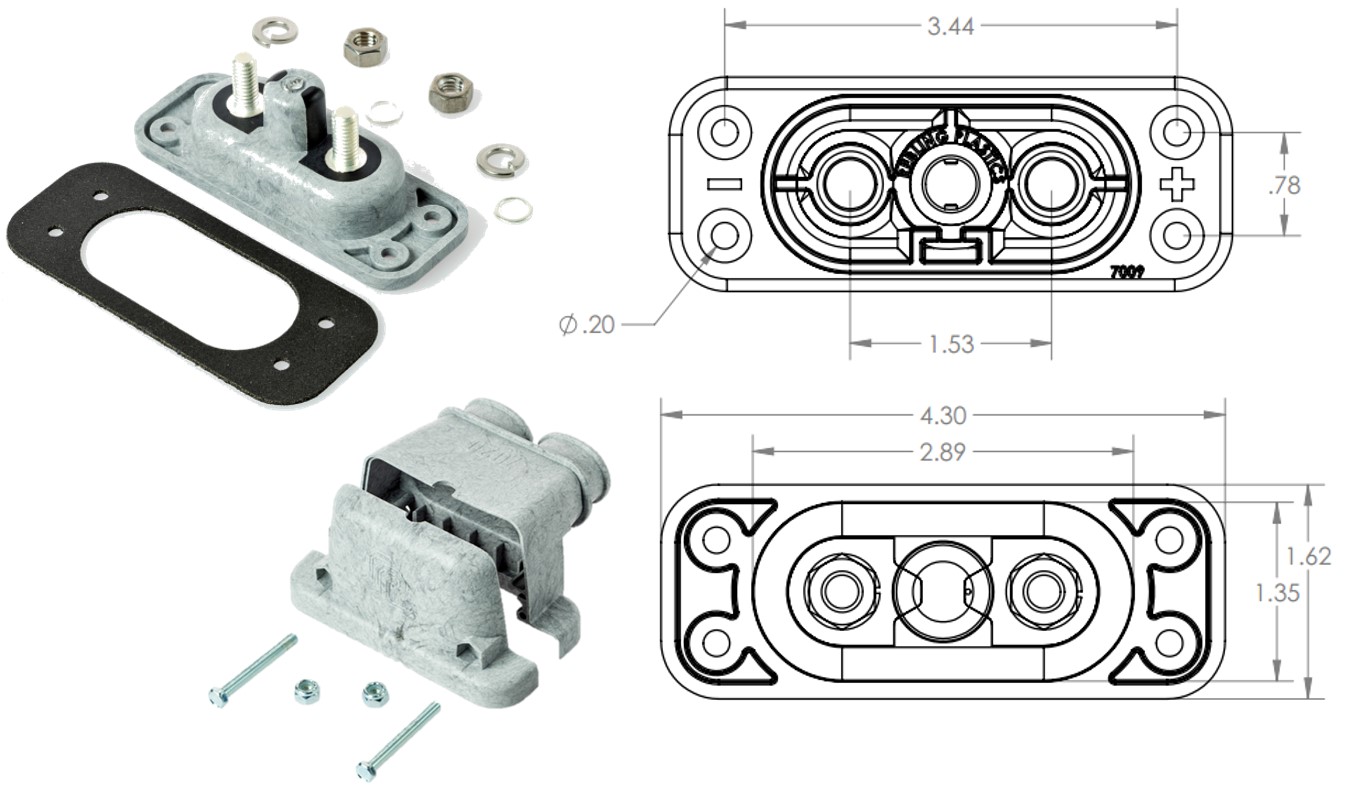

7009-51 EMI Receptacle

7009-51 EMI Receptacle

For complete technical information: Download Datasheet




ELECTRICAL:

Rated Current 400 amps
Peak Current 2,200 amps
Rated Voltage 1,000 volts
Withstand Voltage 4,00 volts
Contact Resistance 70 µΩ


MECHANICAL:

Max Cable Size 4/0 (110 mm2)
Mechanical Shock 50 Gs (3 axes)
Vibration 10 Gs (3 axes)


ENVIRONMENTAL:

Flammability per UL94 V-0
Sealing IP68
Operating Temp -40℃ to +90℃



Product Information


Receptacle
7009-51
EMI Panel-Mounted Receptacle





HVIL Switch &
Magnet Kit

643A1757
HVIL Switch & Magnet Kit
643A1647
HVIL Magnet
  643A1650
HVIL Switch



Gasket 643A1625
Conductive EMI Gasket




Plug
Kit
7020-E
EMI Cable Mounted Plug Kit
