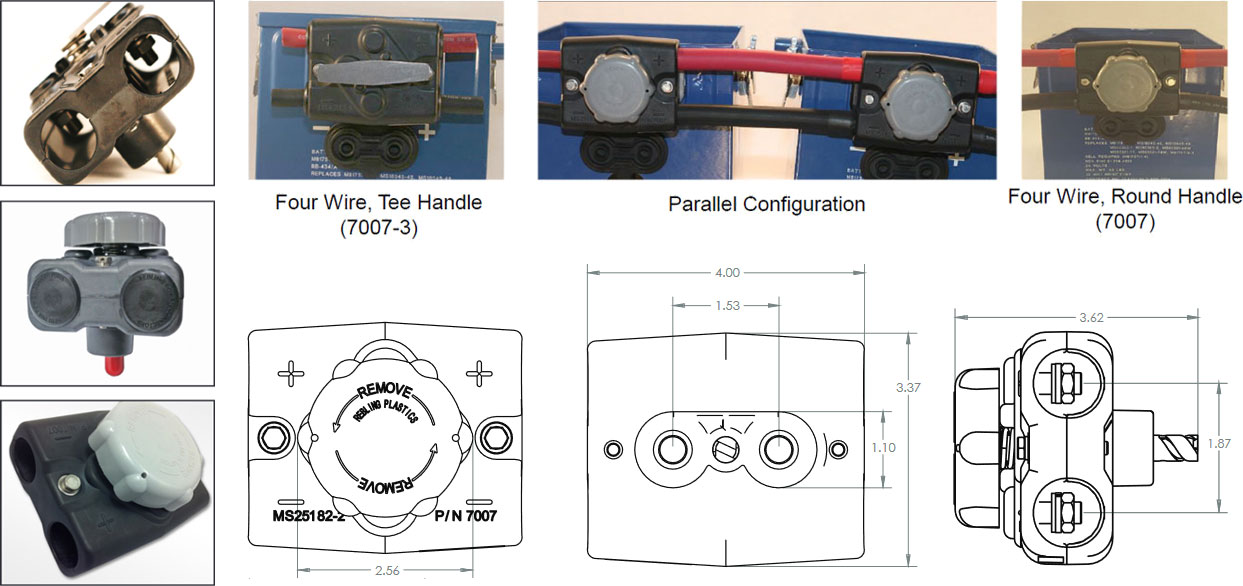

7007 Four-Wire Cable-Mounted Avionic Plug (MS25182-2)

For complete technical information: Download Datasheet


ELECTRICAL:

Rated Current 750 amps
Rated Voltage 750 volts
Withstand Voltage 2,500 volts
Max Contact Resistance 60 μΩ

MECHANICAL:

Max Cable Size 4/0 (110 mm2)
Mechanical Shock 50 Gs (3 axes)
Vibration
10 Gs (3 axes)

ENVIRONMENTAL:

Flammability UL94V-0
Sealing
IP68
Operating Temp -85℃ to +71℃

Product Information


Plug
Kit

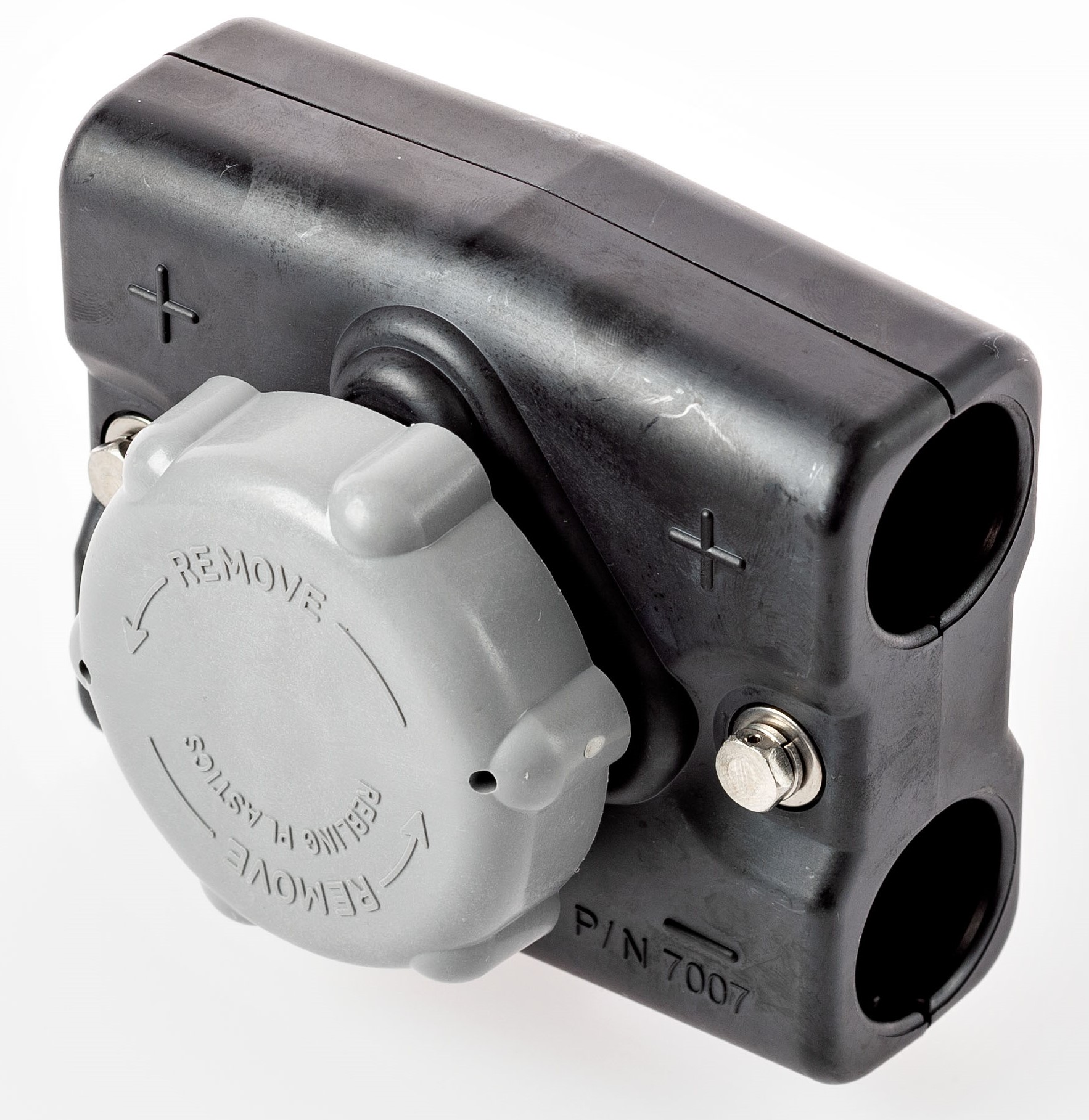

{modal url="images/7007Large.jpg" title="7007 Avionic Plug" description="MS25182-2" width="500"}

7007
Round-Handle
Cable Mounted
Plug Kit (MS25182-2)





Black
Rubber
Grommet
653A1659-0
Solid Plug




Mating
Receptacle
7002-9
Threaded posts, Black

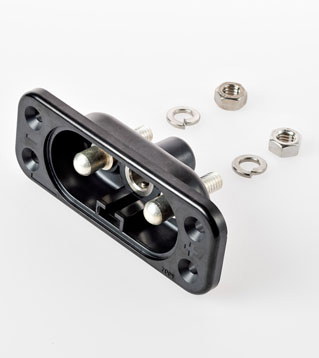

  7009-3
Threaded Posts, Black
7009-7
Threaded Posts, Brown







7009-51
EMI shielded,
Threaded Posts, Grey
7002-3
Hollow Posts, Blue
7002-5-20
Threaded Posts, with Gasket, Pink







7002-5-30
Threaded posts, Pink
7002-5-30G
Threaded Posts, Green
7002-7
Threaded Posts, Blue





7002-37
Blank Receptacle, Grey
