Battery Vent Caps & Breather Valves

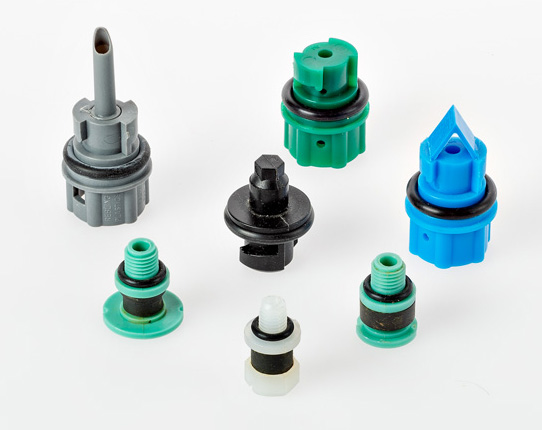

Rebling manufactures a line of vent caps used in a range of power storage cell technologies. These removable battery vent caps seal the electrolyte within the cell and allow venting of the internal pressure of the cell at prescribed pressure ranges. While various configurations and battery venting pressures are available, the basic construction of these battery vent caps is shown in the photo.

By varying the geometry of this design, the vent relief pressure range can be changed to suit Customer requirements. Battery venting pressures ranging from a low of 2 psi to over 35 psi are available.

Ni-Cad Aircraft Battery Vent Caps
Rebling’s battery vent caps were originally designed for commercial Ni-Cad aircraft batteries. The standard battery vent cap configurations are appropriate for most applications. However, Rebling also introduced a line of battery vent caps that minimize electrolyte leakage in aerobatic applications including roll maneuvers. These aerobatic aircraft vents are similar to the standard line with the addition of deflectors or snorkels that extend below the electrolyte level within the cell when inverted.

Ultracapacitor Vent Caps
With the recent proliferation of Ultracapacitor usage in high current applications, battery OEMs have been ramping up to produce these devices with similar manufacturing techniques. Rebling has been working to provide solutions to these new battery vent caps, including Ultracapacitor vent caps. Some of these technologies and chemistries require specialized battery venting pressures. Rebling can customize its standard battery vent cap designs to accommodate the needs of Ultracapacitors.


TOP FEATURES 700240 & 700250

  • One piece molded construction
  • EPDM O-ring and sleeve
  • For use on nickel-cadmium battery cells
  • P/N 700240 conforms to M81757/2B
  • P/N 700250 conforms to MIL-B-81757/10;
  • MS3510-1 and MS75046-1
  • One qualified products list


  • Reduced electrolyte leakage
  • Automatic venting of battery gases at 2-10 psi
  • For use on nickel-cadmium battery cells
  • Meets proposed standard MS3510-B
  • One piece molded nylon construction with
  • baffle sonically welded to the body
  • EPDM O-ring and sleeve


  • Vents at 2-10 psi (custom pressures available)
  • Reduced weight
  • Small profile outside the cell
  • Chemically resistant nylon body fits existing cells
  • Bayonet type fitting
