Battery Swap Connectors

Battery Swap Connectors

For complete technical information: Download Datasheet




ELECTRICAL:

Rated Current 500 amps
Peak Current 3,000 amps
Rated Voltage 1,000 volts
Withstand Voltage 4,000 volts
Contact Resistance 70 µΩ


MECHANICAL:

Max Cable Size 250MCM (130 mm2)
Mechanical Shock 50 Gs (3 axes)
Vibration 10 Gs (3 axes)


ENVIRONMENTAL:

Flammability per UL94 V-0
Operating Temp -40℃ to +140℃

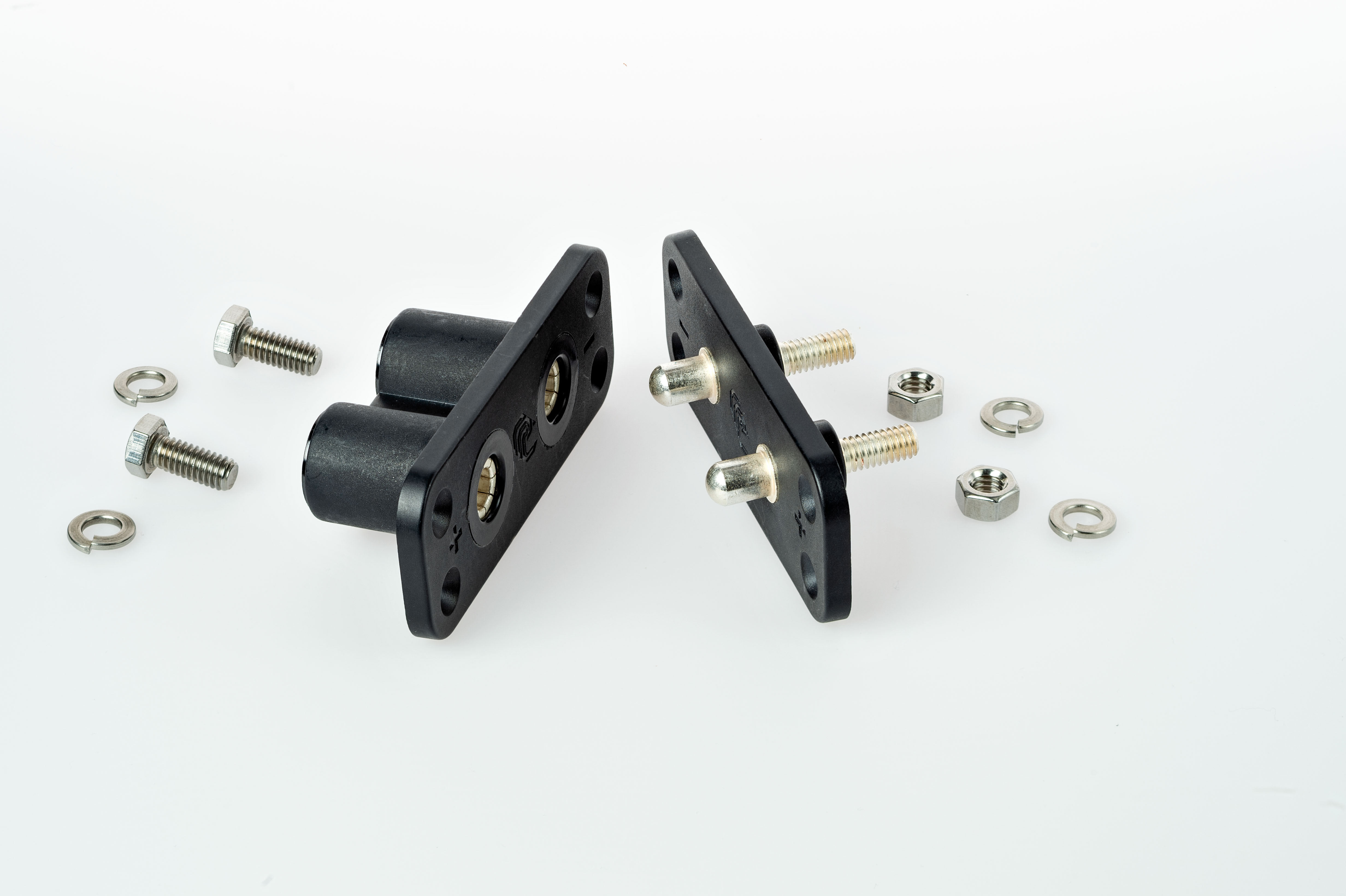

Product Information

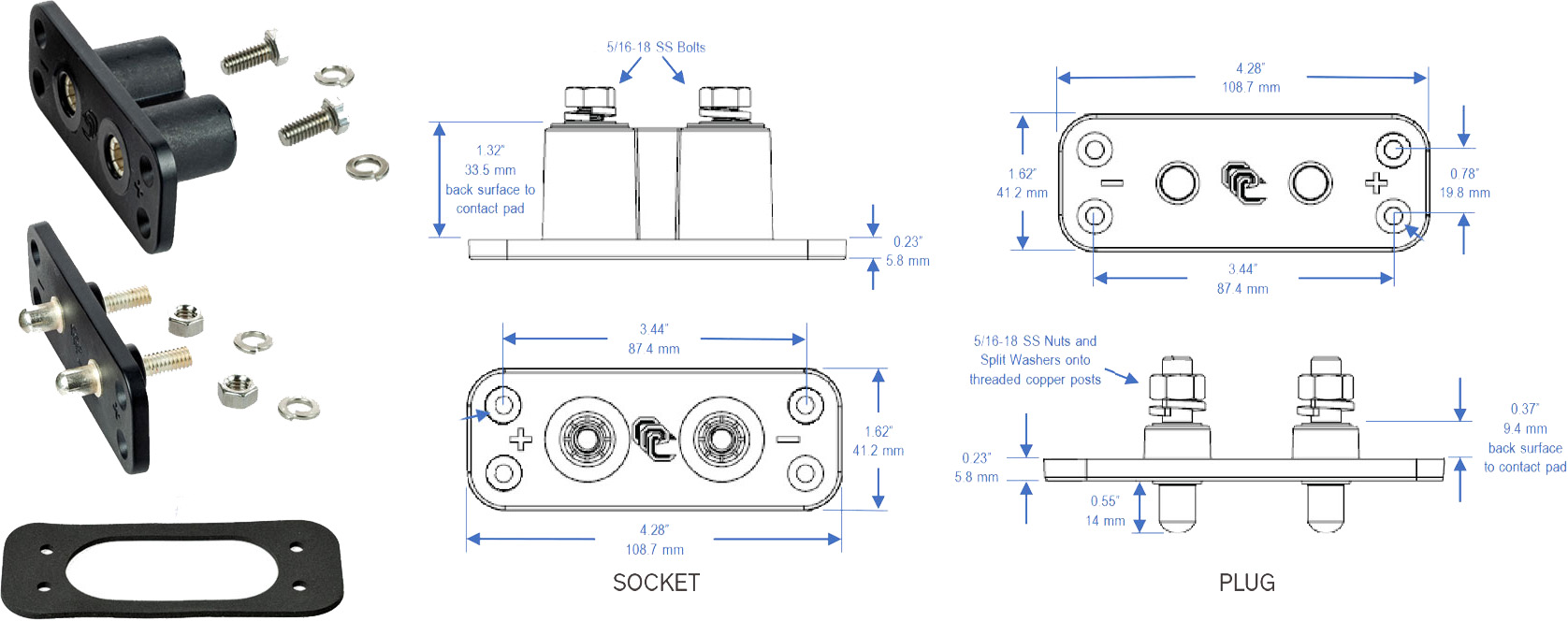

Pin
Kit
654A1679
Battery Swap Pin Connector Kit




Socket
Kit
654A1680
Battery Swap Socket Connector Kit




Gasket 100A1112
Gasket for Pin & Socket Connectors
