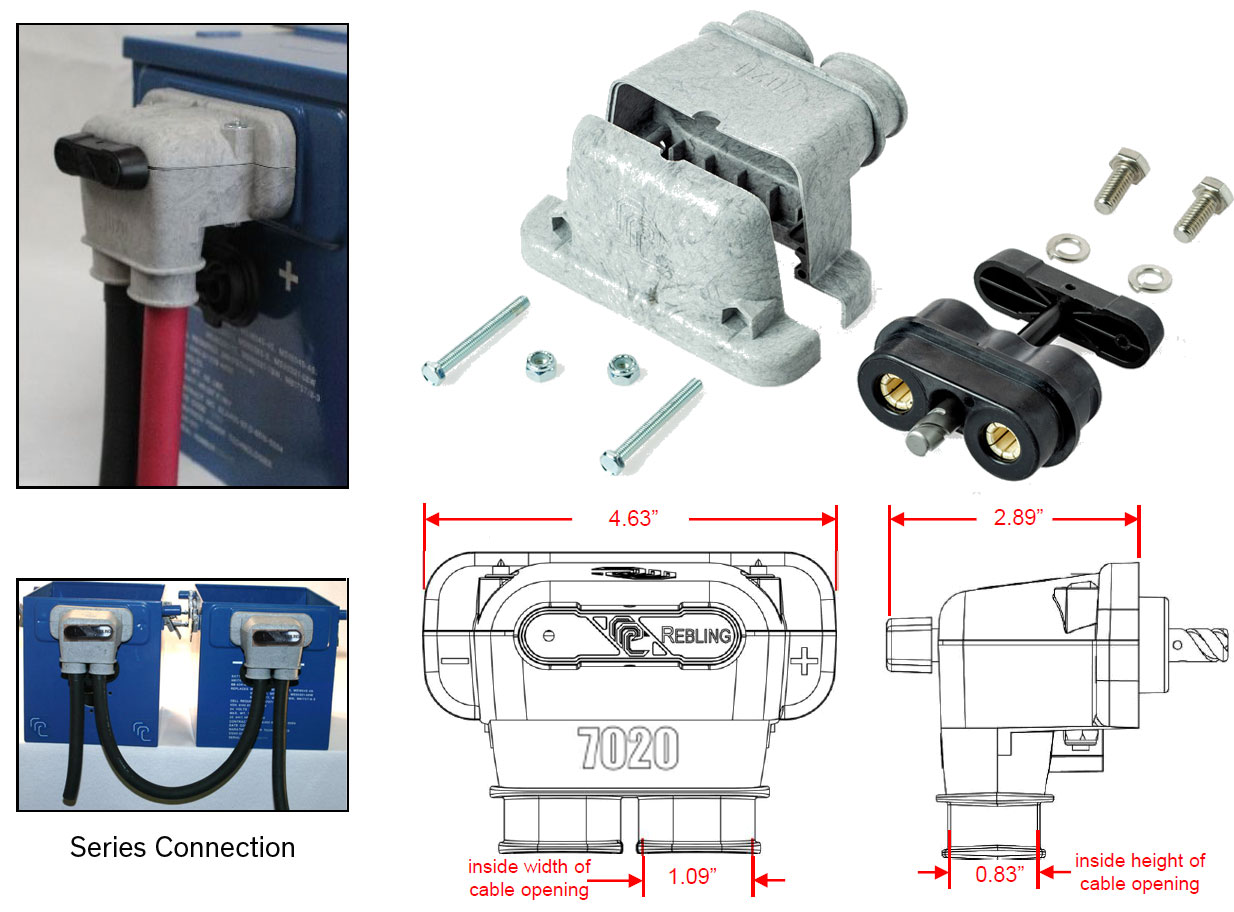

7020-E EMI Cable-Mounted Plug

For complete technical information: Download Datasheet

ELECTRICAL:

Rated Current 400 amps
Peak Current 2,200 amps
Rated Voltage 1,000 volts
Withstand Voltage 4,000 volts
Max Contact Resistance 70 μΩ

MECHANICAL:

Max Cable Size 4/0 (110 mm2)
Mechanical Shock 50 Gs (3 axes)
Vibration
 10 Gs (3 axes)

ENVIRONMENTAL:

Flammability UL94V-0
Sealing
 IP55
Operating Temp -40℃ to +90℃

Product Information

Plug
Kit		 7020-E
EMI Cable Mounted Plug Kit


HVIL Switch & Magnet Kit 643A1757
HVIL Switch & Magnet Kit		   643A1647
HVIL Magnet 		   643A1650
HVIL Switch


Gasket 643A1625
Conductive EMI Gasket


Mating
Receptacle
 7009-51
EMI Panel-Mounted Receptacle
