Style 1 Avionics

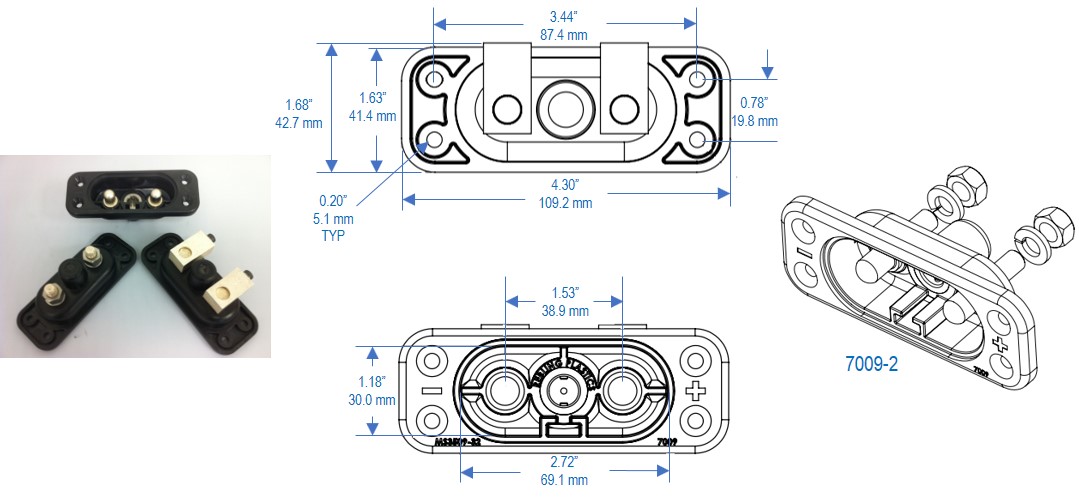

MIL-Spec Battery Receptacle - High-Temperature

For complete technical information: Download Datasheet

ELECTRICAL:

Rated Current 750 amps
Peak Current 1,500 amps
Rated Voltage 750 volts
Withstand Voltage 2,500 volts
Max Contact Resistance 60 μΩ

MECHANICAL:

Max Cable Size 4/0 (110 mm2)
Mechanical Shock 50 Gs (3 axes)
Vibration
 10 Gs (3 axes)

ENVIRONMENTAL:

Flammability UL94V-0
Sealing
 IP68
Operating Temp -40℃ to +140℃

Product Information

Receptacle
Kit

7009-3
Threaded Posts, Black		 7009-7
Threaded Posts, Brown		 7009-51
EMI Shielded,
Grey


Gasket 700222-1
Gasket with Dust-Cover (black)		 643A1625
EMI Conductive Gasket (black)


Backshell

644A1626
1.49" inside depth

 644A1627
2.49" inside depth


Mating Plug

7007
4-Wire Cable Mounted Plug for Parallel Connections (Round Handle)

 7013
2-Wire Cable Mounted Plug
(T Handle)


7016
2-Wire Cable Mounted Plug
(T or Round Handle)

 7017
2-Wire Cable Mounted Plug
(T or Round Handle)
