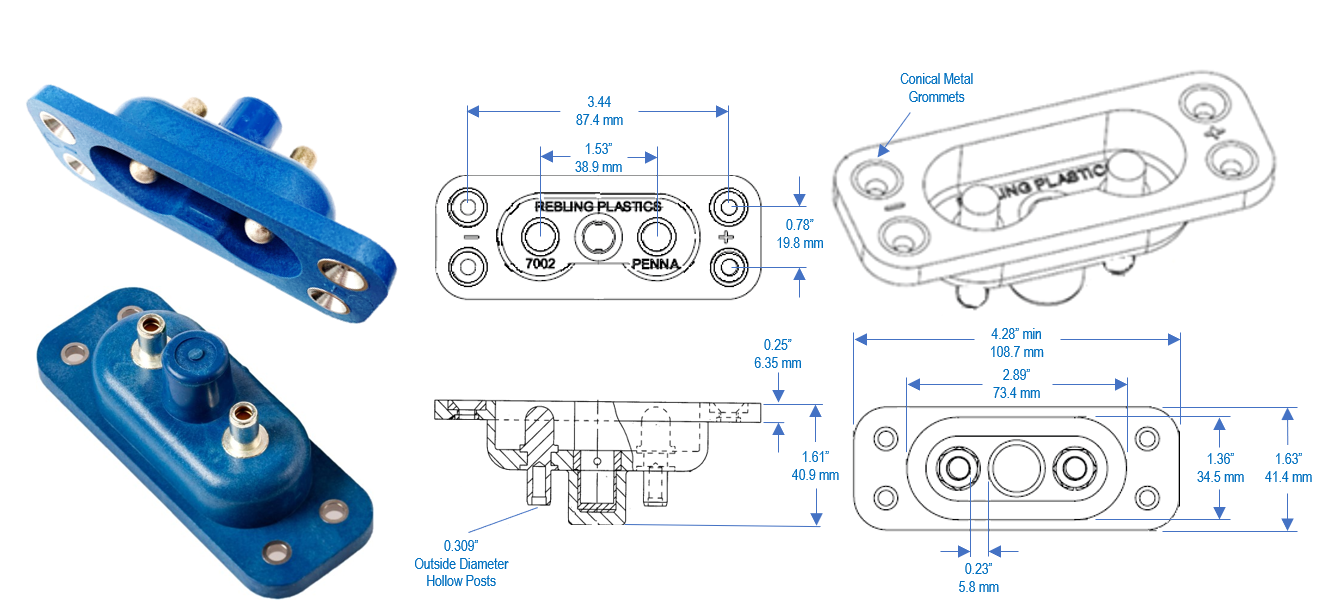

Style 1 Avionics / MIL-Spec Battery Receptacle - Hollow Posts
For complete technical information: Hollow Posts Datasheet
|
ELECTRICAL:
|
MECHANICAL:
|
ENVIRONMENTAL:
|
Product Information |
||||||
| Receptacle Kit |
 |
7002-3 Hollow Posts, Drive Pins, Blue |
7002-1G Hollow Posts, Drive Pins, Green |
7002-1 Hollow Posts, Drive Pins, Pink |
||
| 7002-31 Steel Hollow Posts, Drive Pins, Black |
||||||
| Gasket |  |
700222-1 Gasket with Dust-Cover (black) |
 |
643A1625 EMI Conductive Gasket (black) |
||
| Backshell |  |
644A1626 1.49" inside depth |
 |
644A1627 2.49" inside depth |
||
| Mating Plug |  |
7007 4-Wire Cable Mounted Plug for Parallel Connections (Round Handle) |
 |
7013 2-Wire Cable Mounted Plug (T Handle) |
||
 |
7016 2-Wire Cable Mounted Plug (T or Round Handle) |
 |
7017 2-Wire Cable Mounted Plug (T or Round Handle) |
|||
