Style 2 Avionics / MIL-Spec Battery Receptacle

For complete technical information: Download Datasheet


ELECTRICAL:

Rated Current 750 amps
Peak Current 1,500 amps
Rated Voltage 750 volts
Withstand Voltage 2,500 volts
Max Contact Resistance 60 μΩ

MECHANICAL:

Max Cable Size 3/0 (80 mm2)
Mechanical Shock 50 Gs (3 axes)
Vibration
10 Gs (3 axes)

ENVIRONMENTAL:

Flammability UL94V-0
Sealing
IP68
Operating Temp -85℃ to +71℃

Product Information


Receptacle
Kit

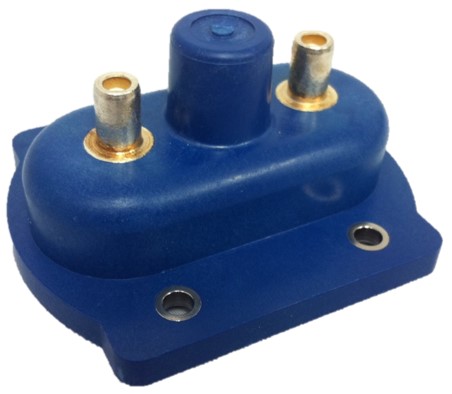

7002-4
Hollow Posts, Blue

  7002-8
Threaded Posts, Blue

    7002-6G
Threaded Posts, Green
  7002-10
Threaded Posts, Black

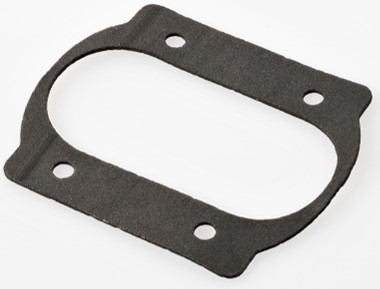

Gasket   023A1169
Elastomer, Black


Mating Plug 7007
4-Wire Cable Mounted Plug for Parallel Connections (Round Handle)
7013
2-Wire Cable Mounted Plug
(T Handle)

  7016
2-Wire Cable Mounted Plug
(T or Round Handle)
7017
2-Wire Cable Mounted Plug
(T or Round Handle)
