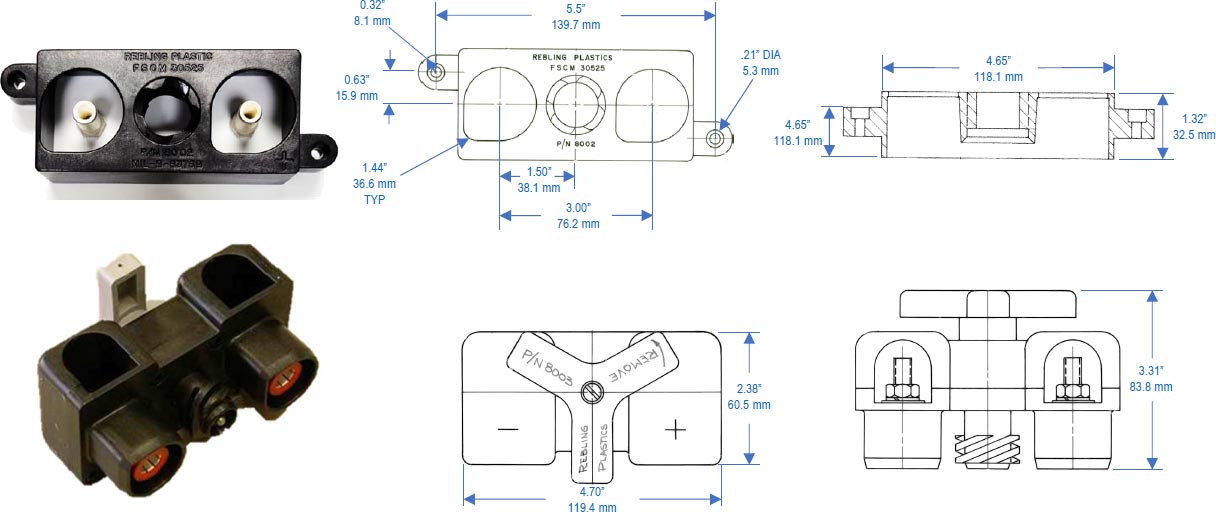

8002 / 8003 Receptacle Housing

8002 / 8003 Receptacle Housing

For complete technical information: Download Datasheet




ELECTRICAL:

Rated Current 750 amps
Peak Current 1,500 amps
Rated Voltage 750 volts
Withstand Voltage 2,500 volts
Contact Resistance 60 µΩ


MECHANICAL:

Max Wire Size 3/0 (80 mm2)
Mechanical Shock 50 Gs (3 axes)
Vibration 10 Gs (3 axes)


ENVIRONMENTAL:

Flammability per UL94 HB
Sealing IP68
Operating Temp -85℃ to +71℃



Product Information


Receptacle

8002-1
Red
8002-2B
Black

Plug 8003
Plug


Kits 8002-ADPT
2 each in Poly Bag:
• 10-32x 3/4 screws
• #10 Split Washers
• 098A1190 Contacts
098A1190
Pin Contact, Copper (Silver-Plated)
