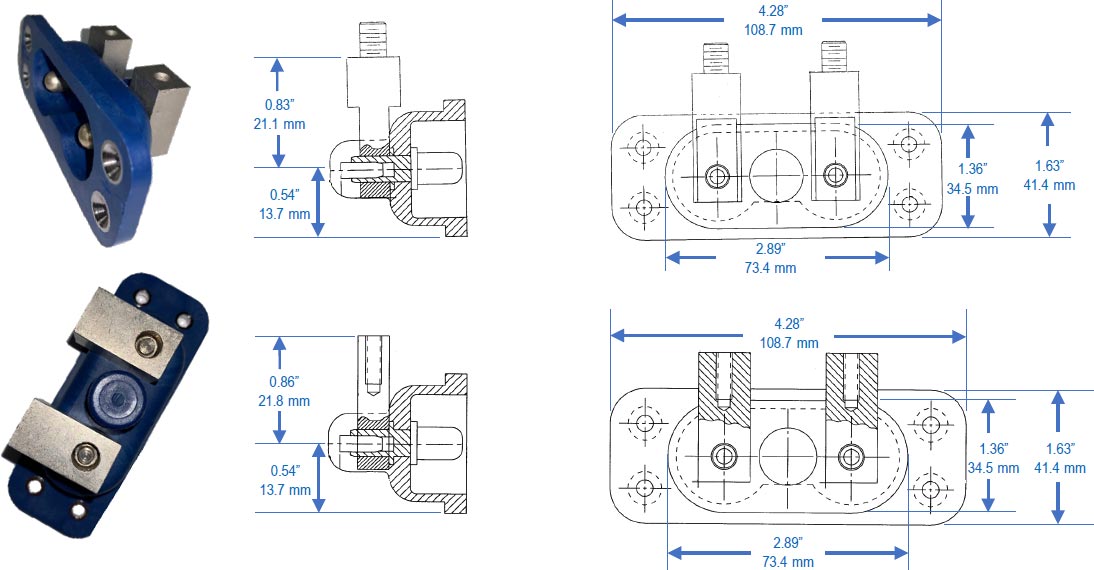

Style 1 Avionics / MIL-Spec Battery Receptacle - w/ Rear Adapters

Style 1 Avionics / MIL-Spec Battery Receptacle - w/ Rear Adapters

For complete technical information: Download Datasheet




ELECTRICAL:

Rated Current 750 amps
Peak Current 1,500 amps
Rated Voltage 750 volts
Withstand Voltage 2,500 volts
Contact Resistance 60 µΩ


MECHANICAL:

Max Cable Size 3/0 (80 mm2)
Mechanical Shock 20 Gs (3 axes)
Vibration 10 Gs (3 axes)


ENVIRONMENTAL:

Flammability per UL94 V-0
Sealing IP68
Operating Temp -85℃ to +71℃



Product Information


Receptacle
Kit
7002-3-101
10-32 x 0.56" Threads, 0.87" Depth
7002-3-104
10-32 x 0.56" Threads, 0.69" Depth
7002-3-107
M10-1.25 x 0.38" external threads, 0.83" Depth
  7002-30-109
10-32 x 0.56" Threads, 1.00" Depth
7002-37
Blank Receptacle,
Grey


Gasket 700222-1
Gasket with Dust-Cover (black)
643A1625
EMI Conductive Gasket (black)


Backshell 644A1626
1.49" inside depth
644A1627
2.49" inside depth


Mating Plug 7007
4-Wire Cable Mounted Plug for Parallel Connections (Round Handle)
7013
2-Wire Cable Mounted Plug
(T Handle)

  7016
2-Wire Cable Mounted Plug
(T or Round Handle)
7017
2-Wire Cable Mounted Plug
(T or Round Handle)
