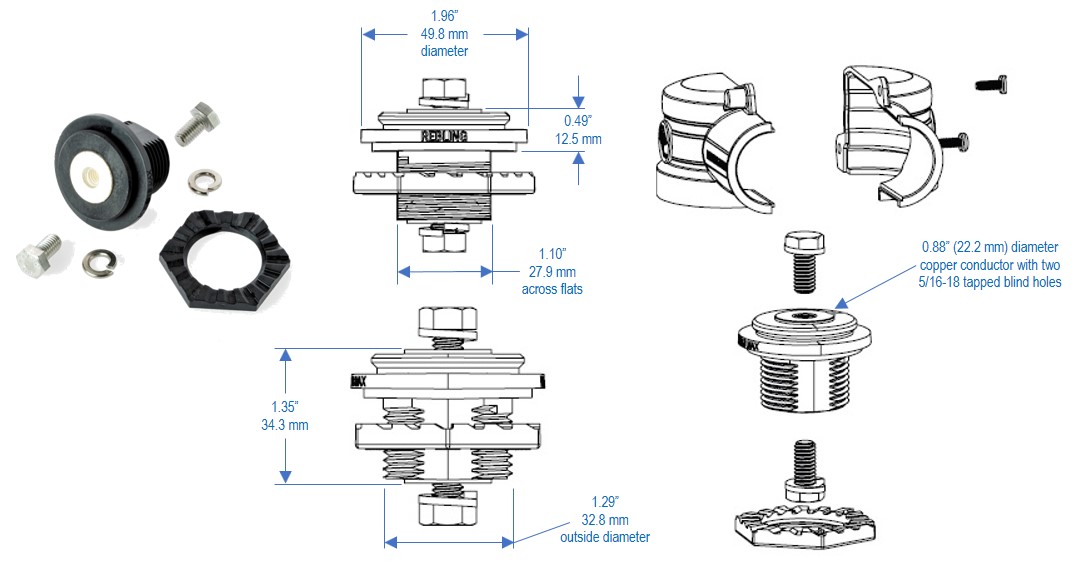

1,000 amp BFT-style Lithium Battery Terminal

For complete technical information: Download Datasheet

ELECTRICAL:

Rated Current 1,000 amps
Peak Current 5,000 amps
Rated Voltage 2,000 volts
Withstand Voltage 5,000 volts
Insulation Resistance 500 MΩ
Max Contact Resistance 70 μΩ

MECHANICAL:

Min Panel Thickness 0.080" (2.1 mm)
Max Cable Size 750 MCM (380 mm2)
Mechanical Shock 50 Gs (3 axes)
Vibration
 10 Gs (3 axes)

ENVIRONMENTAL:

Flammability UL94V-0
Sealing
 IP68
Operating Temp -40℃ to +125℃

Product Information

Nickel
Plated
Terminal
Kit		 BFT-N-B
Black		 BFT-N-R
Red

Two-Piece
Cover		 648A1758
Black		 648A1779
Red
Flexible
Cover		 639A1830-B
Black		 639A1830-R
Red


Angled Covers for Two Cables Coming Soon! 850A1991-B
Black		 Coming Soon! 850A1991-R
Red


Straight Covers for Two Cables Coming Soon! 850A1992-B
Black		 Coming Soon! 850A1992-R
Red


Gasket 651A1811
Gasket
