500 amp Top Seal Lithium Battery Terminal

For complete technical information: Download Datasheet

ELECTRICAL:

Rated Current 500 amps
Peak Current 3,000 amps
Rated Voltage 2,000 volts
Withstand Voltage 5,000 volts
Insulation Resistance 500 MΩ
Max Contact Resistance 70 μΩ

MECHANICAL:

Min Panel Thickness 0.040" (1.00 mm)
Max Cable Size 450 MCM (230 mm2)
Mechanical Shock 50 Gs (3 axes)
Vibration
 10 Gs (3 axes)

ENVIRONMENTAL:

Flammability UL94V-0
Sealing
 IP68
Operating Temp -40℃ to +125℃

Product Information



Nickel
Plated
Terminal

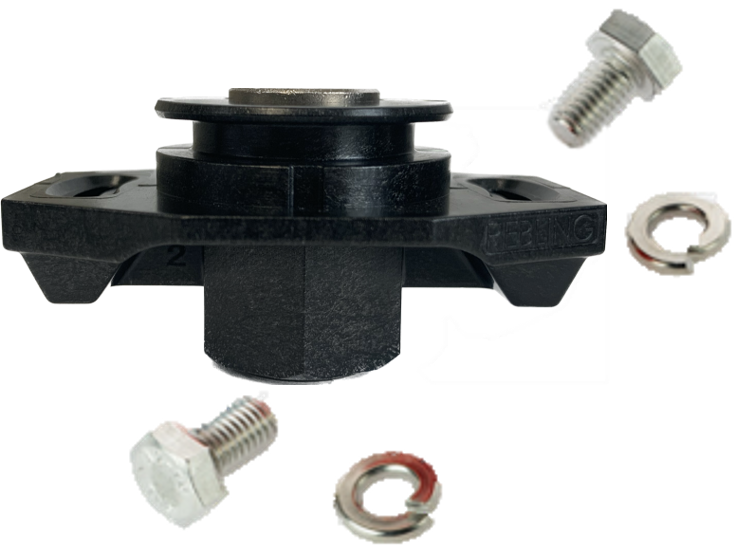

Kit		   Top500-P-B

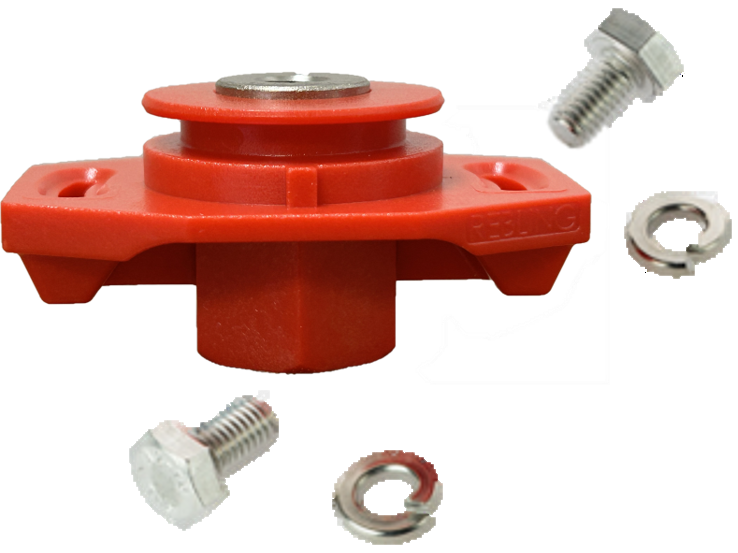

Black		   Top500-P-R
Red

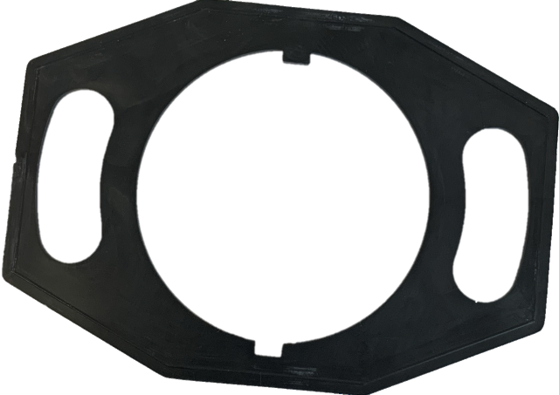

Gasket   812A1951
Black


Short
Rigid
Snap-On
Cover 		 698A1789-S-B
Black		 698A1789-S-R
Red


Flexible
Snap-On
Cover		 713A1806-B
Black		 713A1806-R
Red
