750 amp XFT-style Lithium Battery Terminal

For complete technical information: Download Datasheet or Contact Us



ELECTRICAL:

Rated Current 750 amps
Peak Current 4,000 amps
Rated Voltage 2,000 volts
Withstand Voltage 5,000 volts
Insulation Resistance 500 MΩ
Max Contact Resistance 70 μΩ

MECHANICAL:

Min Panel Thickness 0.025" (0.64 mm)
Max Cable Size 750MCM AWG (380 mm2)
Mechanical Shock 50 Gs (3 axes)
Vibration
 10 Gs (3 axes)

ENVIRONMENTAL:

Flammability UL94V-0
Sealing
 IP68
Operating Temp -40℃ to +125℃

Product Information

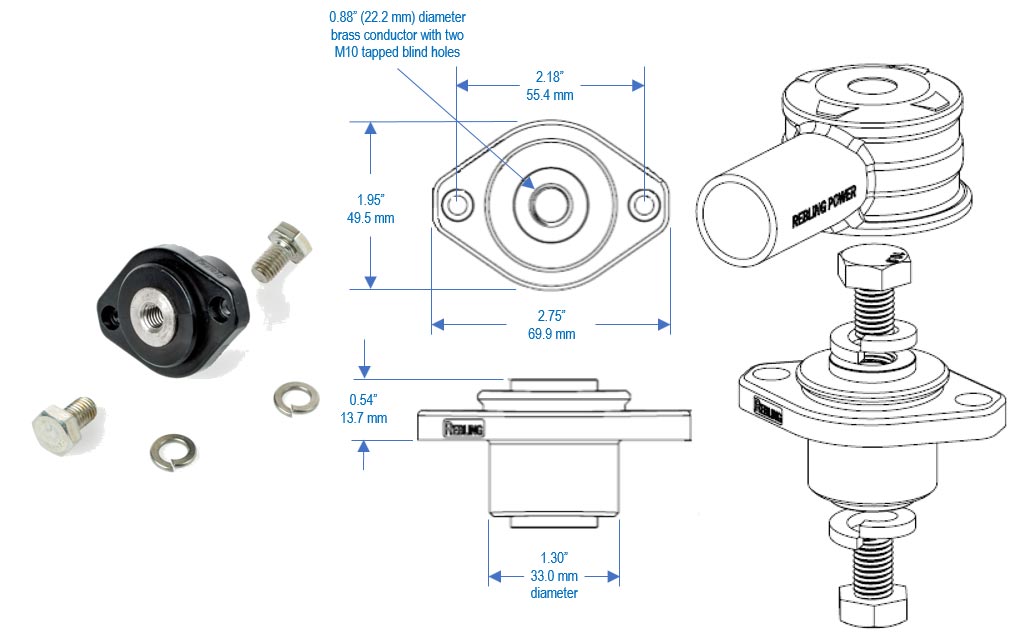

Our 750 amp XFT-style terminal (with mounting ears) has performance characteristics identical to our BFT-style 750 amp terminal but is specially designed for mounting onto thin or weak panels. The XFT-style 750 amp terminal’s nickel-plated brass core stays cool at 750 amps of continuous current or for short term peaks of 4,000 amps. These terminals are designed for the temperature-sensitive environment of lithium battery cells and the charging rates of ultracapacitors and supercapacitors. Equipping your power module with these watertight, single-pole, wrench disconnect, brass battery terminals will facilitate the incorporation of your modules into cutting edge GenSet, APU, or Vehicle Electrification systems.

Nickel
Plated
Terminal
Kit		 XFT-P-B
Black		 XFT-P-R
Red
Flexible
Cover		 639A1830-B
Black		 639A1830-R
Red
Angled Covers for Two Cables 850A1991-B
Black		 850A1991-R
Red
Straight Covers for Two Cables 850A1992-B
Black		 850A1992-R
Red

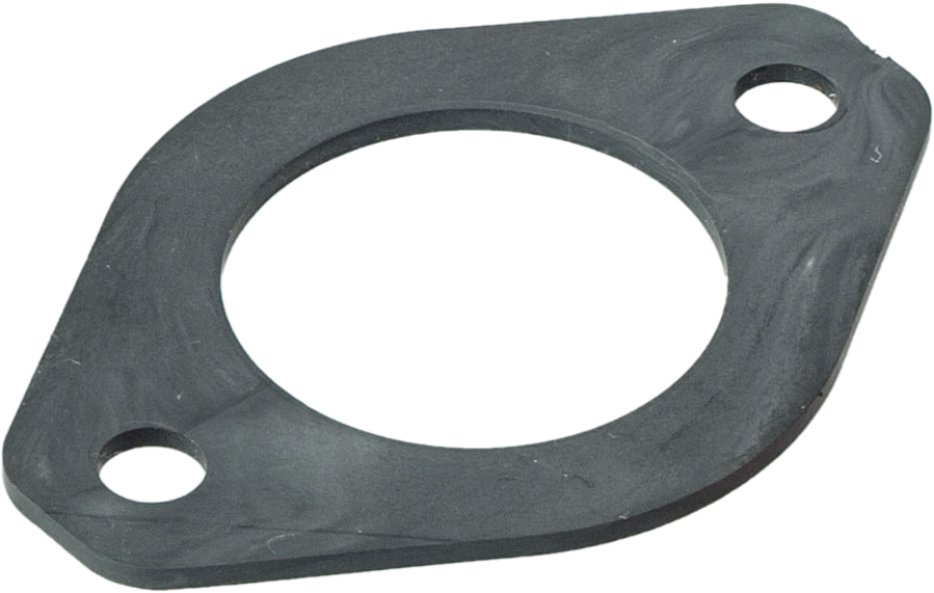

Gasket 720A1817
Gasket
