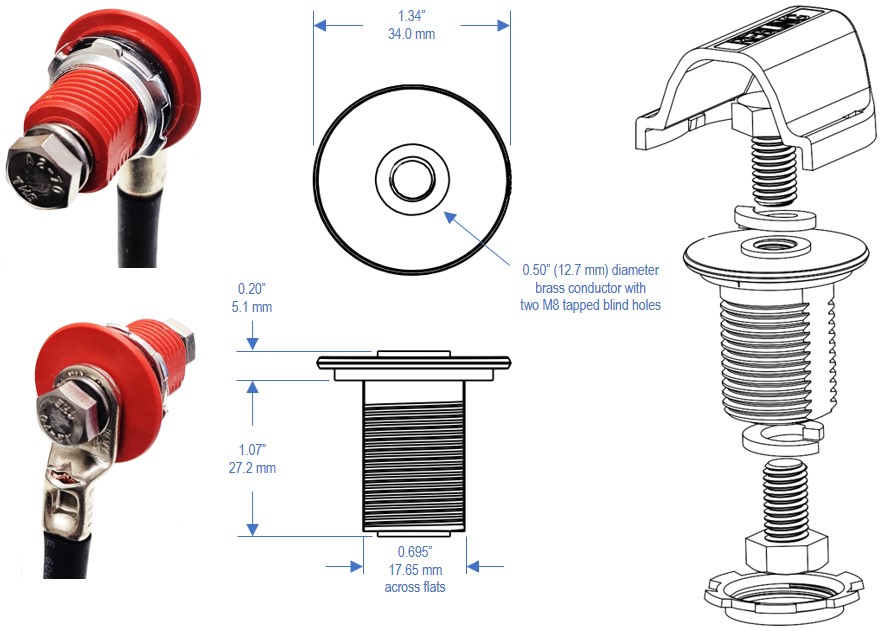

250 amp LFT-style Lithium Battery Terminal

250 amp LFT-style Lithium Battery Terminal

For complete technical information: Download Datasheet




ELECTRICAL:

Rated Current 250 amps
Peak Current 1,500 amps
Rated Voltage 2,000 volts
Withstand Voltage 5,000 volts
Insulation Resistance 500 MΩ
Max Contact Resistance 70 μΩ


MECHANICAL:

Min Panel Thickness 0.110" (2.8 mm)
Max Cable Size 4/0 (110 mm2)
Mechanical Shock 50 Gs (3 axes)
Vibration 10 Gs (3 axes)


ENVIRONMENTAL:

Flammability per UL94 5VA
Sealing IP68
Operating Temp -40℃ to +125℃





Product Information


Unplated
Terminal
Kit
LFT-B-B
Black
LFT-B-R
Red
LFT-B-E
Blue


Nickel
Plated

Terminal
Kit
LFT-P-B
Black
LFT-P-R
Red
LFT-P-E
Blue


Short
Rigid
Snap-On
Cover
698A1789-S-B
Black
698A1789-S-R
Red
698A1789-S-E
Blue


Long
Rigid
Snap-On
Cover
698A1789-L-B
Black
698A1789-L-R
Red
698A1789-L-E
Blue


Flexible
Snap-On
Cover
713A1806-B
Black
713A1806-R
Red
713A1806-E
Blue


O-Ring 700A1799
Black, (0.799" x 3/32)
