750 amp BFT-style Lithium Battery Terminal

For complete technical information: Download Datasheet or Contact Us

ELECTRICAL:

Rated Current 750 amps
Peak Current 4,000 amps
Rated Voltage 2,000 volts
Withstand Voltage 5,000 volts
Insulation Resistance 500 MΩ
Max Contact Resistance 70 μΩ

MECHANICAL:

Min Panel Thickness 0.080" (2.1 mm)
Max Cable Size 750 MCM (380 mm2)
Mechanical Shock 50 Gs (3 axes)
Vibration
 10 Gs (3 axes)

ENVIRONMENTAL:

Flammability UL94V-0
Sealing
 IP68
Operating Temp -40℃ to +125℃

Product Information

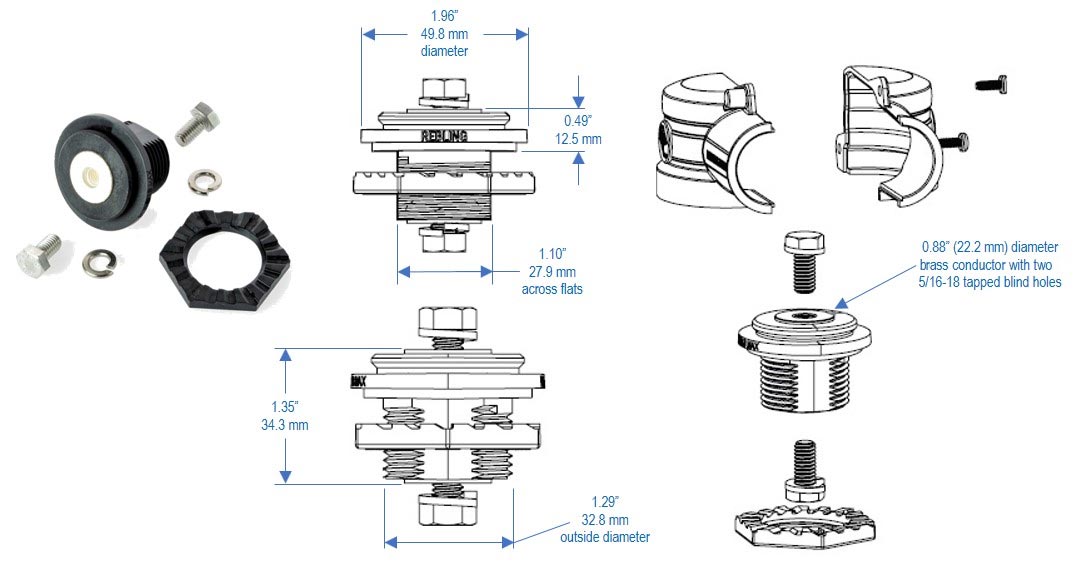

Our 750 amp BFT-style terminal (without mounting ears) consists of a nickel-plated brass core which stays cool at 750 amps of continuous current or when charge and discharge currents hit short term peaks of 4,000 amps. These small footprint terminals are designed for the temperature-sensitive environment of lithium battery cells and the charging rates of ultracapacitors and supercapacitors. Equipping your power module with these watertight, single-pole, wrench disconnect, brass battery terminals will facilitate the incorporation of your modules into cutting edge GenSet, APU or Vehicle Electrification systems

Nickel
Plated
Terminal
Kit		 BFT-P-B
Black		 BFT-P-R
Red
Two-Piece
Cover		 648A1758
Black		 648A1779
Red
Flexible
Cover		 639A1830-B
Black		 639A1830-R
Red

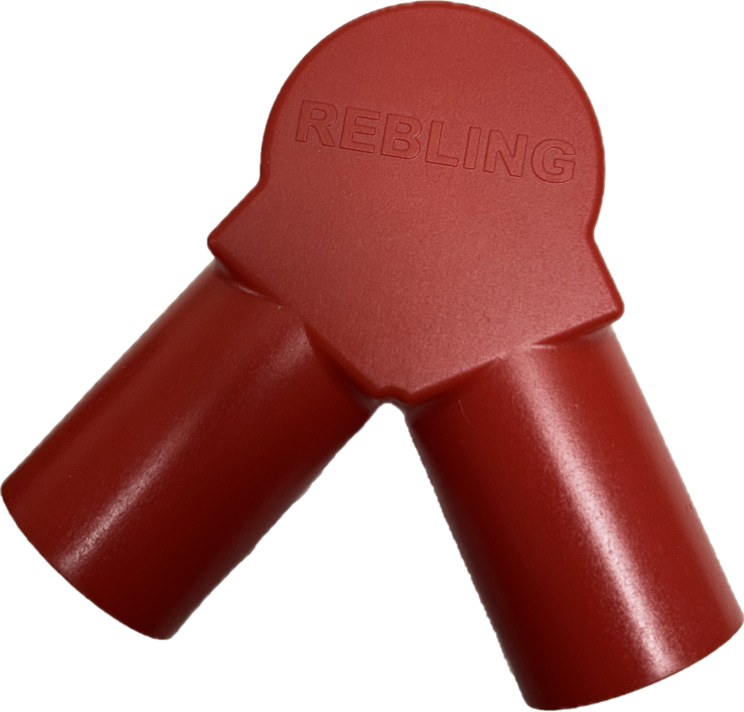

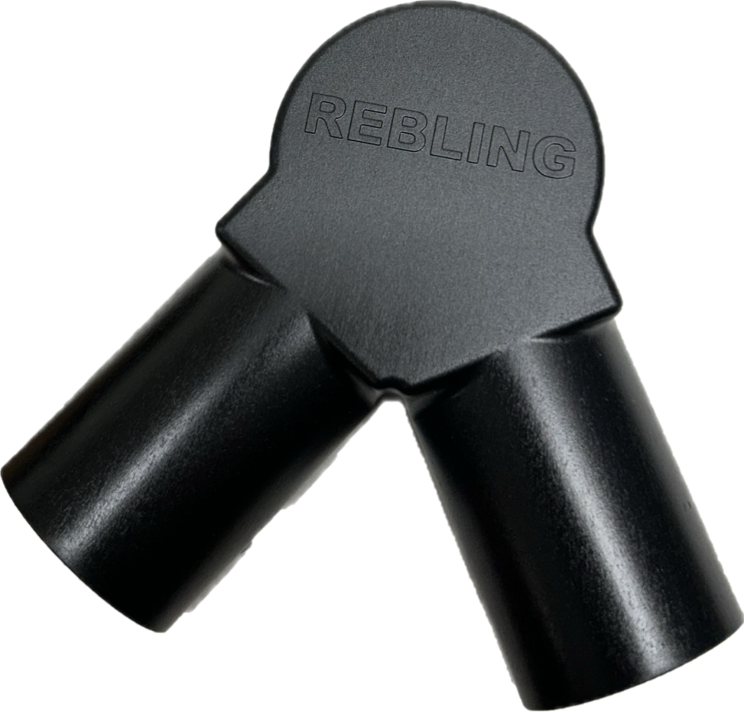

Angled Covers for Two Cables 850A1991-B
Black		 850A1991-R
Red

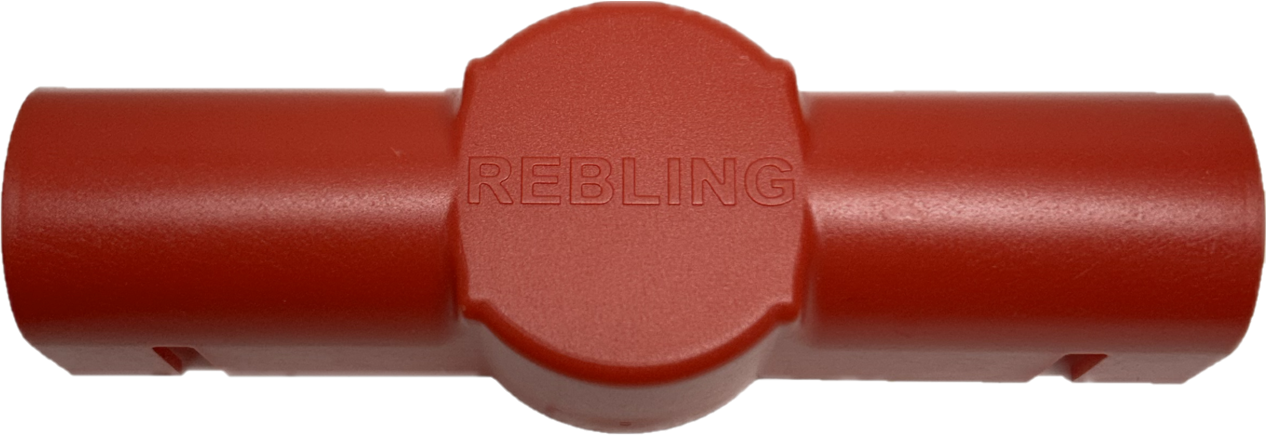

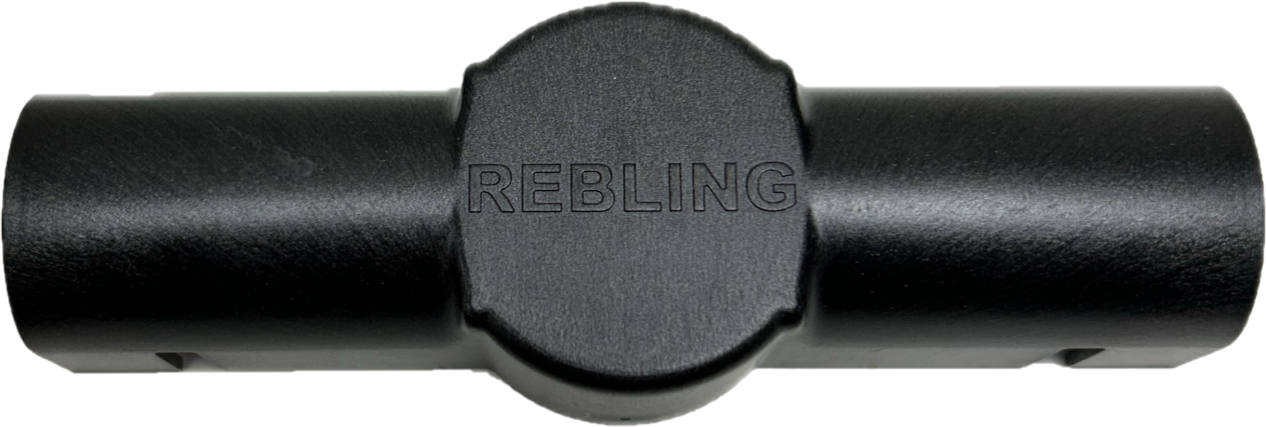

Straight Covers for Two Cables 850A1992-B
Black		 850A1992-R
Red
Gasket 651A1811
Gasket
