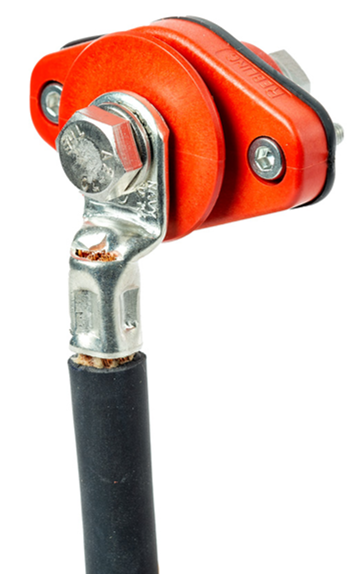

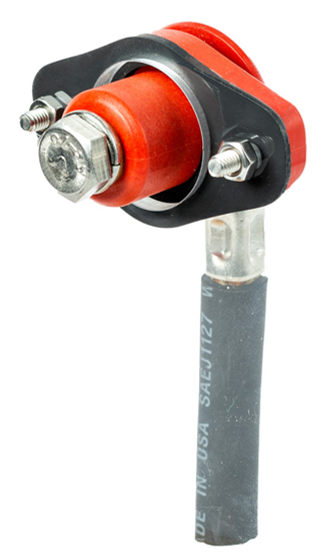

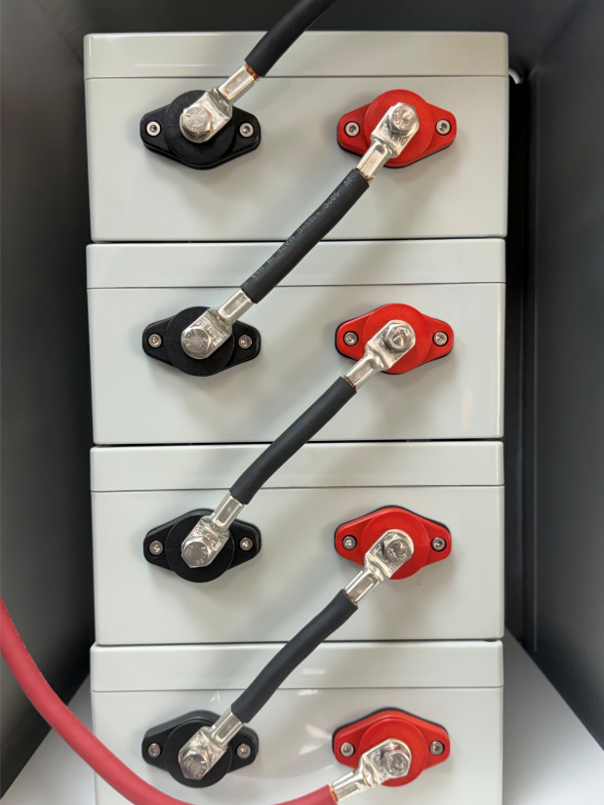

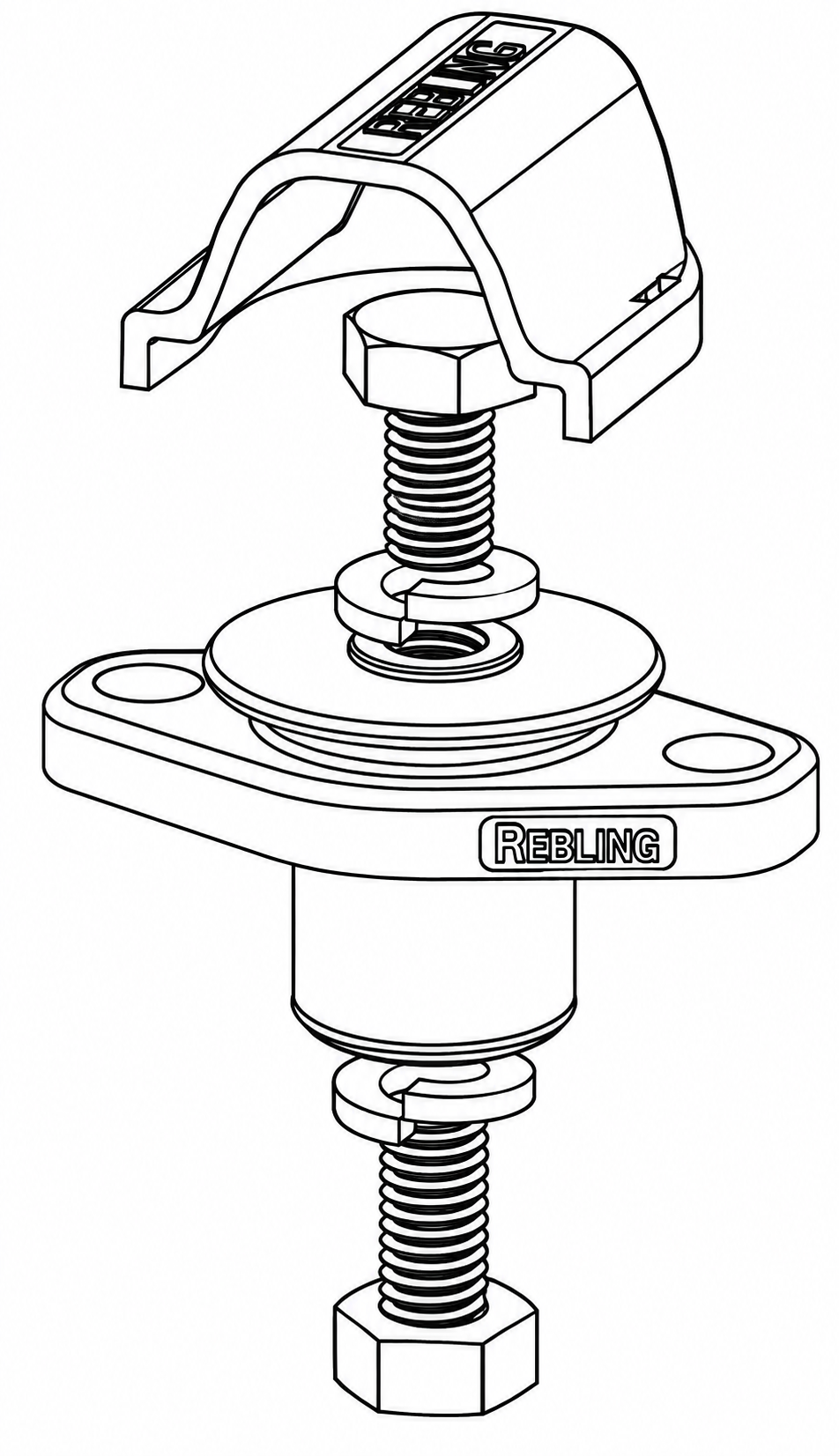

250 amp SFT-style Lithium Battery Terminal

250 amp SFT-style Lithium Battery Terminal

For complete technical information: Download Datasheet




ELECTRICAL:

Rated Current 250 amps
Peak Current 1,500 amps
Rated Voltage 2,000 volts
Withstand Voltage 5,000 volts
Insulation Resistance 500 MΩ
Max Contact Resistance 70 μΩ

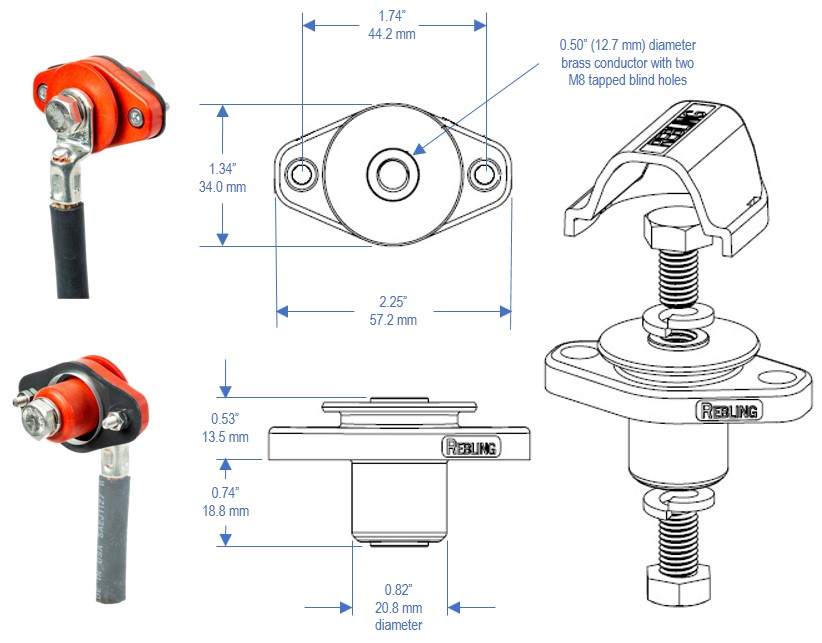

MECHANICAL:

Min Panel Thickness 0.025" (0.64 mm)
Max Cable Size 4/0 (110 mm2)
Mechanical Shock 50 Gs (3 axes)
Vibration 10 Gs (3 axes)


ENVIRONMENTAL:

Flammability per UL94 V-0
Sealing IP68
Operating Temp -40℃ to +125℃



Product Information


Unplated
Terminal
Kit
SFT-B-B
Black
SFT-B-R
Red
SFT-B-E
Blue


Nickel
Plated

Terminal
Kit
SFT-P-B
Black
SFT-P-R
Red
SFT-P-E
Blue


Short
Rigid
Snap-On
Cover
698A1789-S-B
Black
698A1789-S-R
Red
698A1789-S-E
Blue


Long
Rigid
Snap-On
Cover
698A1789-L-B
Black
698A1789-L-R
Red
698A1789-L-E
Blue


Flexible
Snap-On
Cover
713A1806-B
Black
713A1806-R
Red
713A1806-E
Blue


Gasket

716A1814

Black
