100 amp TFT-style Lithium Battery Terminal

For complete technical information: Download Datasheet or Contact Us


ELECTRICAL:

Rated Current 100 amps
Peak Current 600 amps
Rated Voltage 2,000 volts
Withstand Voltage 5,000 volts
Insulation Resistance 500 MΩ
Max Contact Resistance 70 μΩ

MECHANICAL:

Min Panel Thickness 0.025" (0.6 mm)
Max Cable Size 1 AWG (40 mm2)
Mechanical Shock 50 Gs (3 axes)
Vibration
 10 Gs (3 axes)

ENVIRONMENTAL:

Flammability
UL94V-0
Sealing
 IP68
Operating Temp -40℃ to +125℃

Product Information



Our TFT-style terminal (without mounting ears) is the most economical, smallest footprint, simplest environmental seal, battery terminal, which can reduce connector costs on a single microgrid energy storage system by $2,000 and offers a battery module designer the protection options of snap-on rigid or flexible covers.

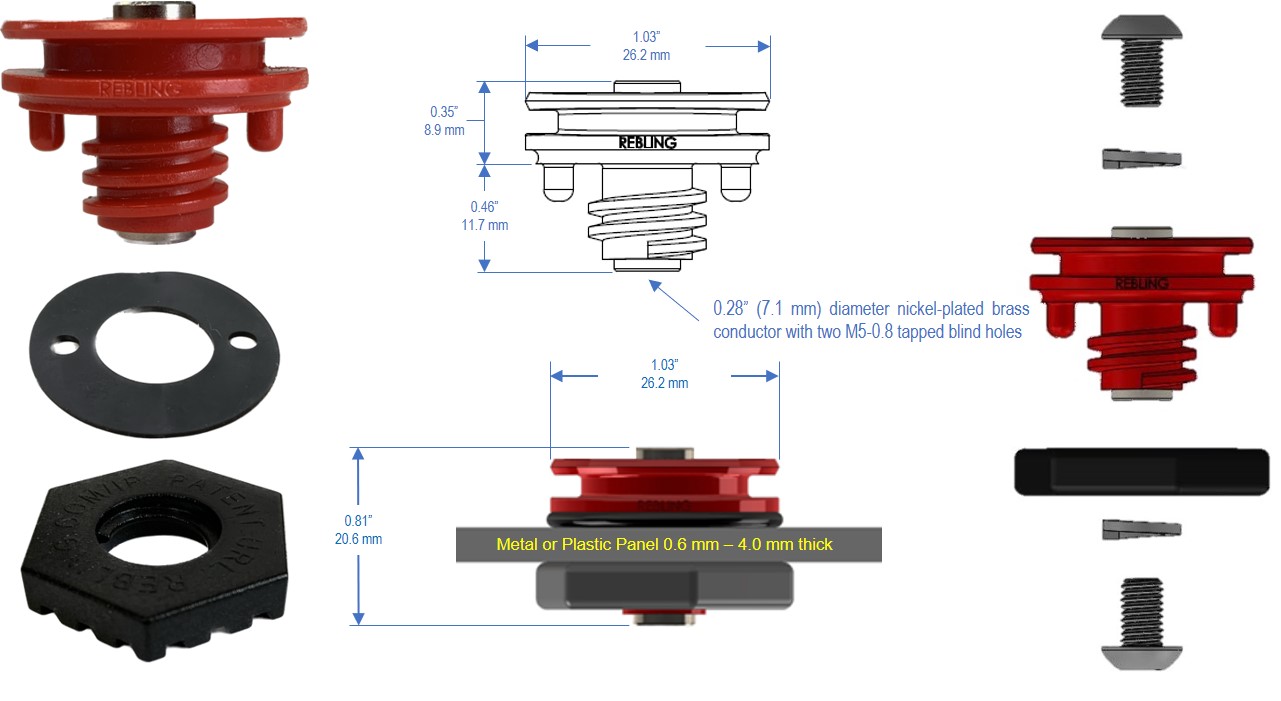

This 100 amp terminal can accommodate 8 AWG to 2 AWG (8 mm2 to 34 mm2) cables, and snap-on Flexible or Rigid Covers. Unlike our SFT-style Terminal, the TFT-style Terminal does not require panel mounting screws, because it has molded-in mounting pegs. These cylindrical molded pegs enable the TFT to resist the tightening torque the user will apply to the terminal’s M5 electrical connection bolts.

Brass,
Nickel-Plated
Terminal Kit		 TFT-P-B
Black		 TFT-P-R
Red		 TFT-P-E
Blue
Rigid
Snap-On
Cover		 814A1926-B
Black		 814A1926-R
Red		 814A1926-E
Blue
Flexible
Snap-On
Cover		 815A1927-B
Black		 815A1927-R
Red		 815A1927-E
Blue
Accessories 812A1925
O-Ring
(0.86" x 0.063")		 825A1959
Gasket		 813A1930
Panel Nut
Black
