7016 Two-Wire Cable-Mounted Plug

7016 Two-Wire Cable-Mounted Plug

For complete technical information: Download Datasheet


ELECTRICAL:

Rated Current 750 amps
Rated Voltage 750 volts
Withstand Voltage 2,500 volts
Contact Resistance 60 µΩ


MECHANICAL:

Max Cable Size 4/0 (110 mm2)
Mechanical Shock 20 Gs (3 axes)
Vibration 10 Gs (3 axes)


ENVIRONMENTAL:

Flammability per UL94 V-0
Sealing IP13
Operating Temp -85℃ to +71℃



Product Information


Plug
Kit

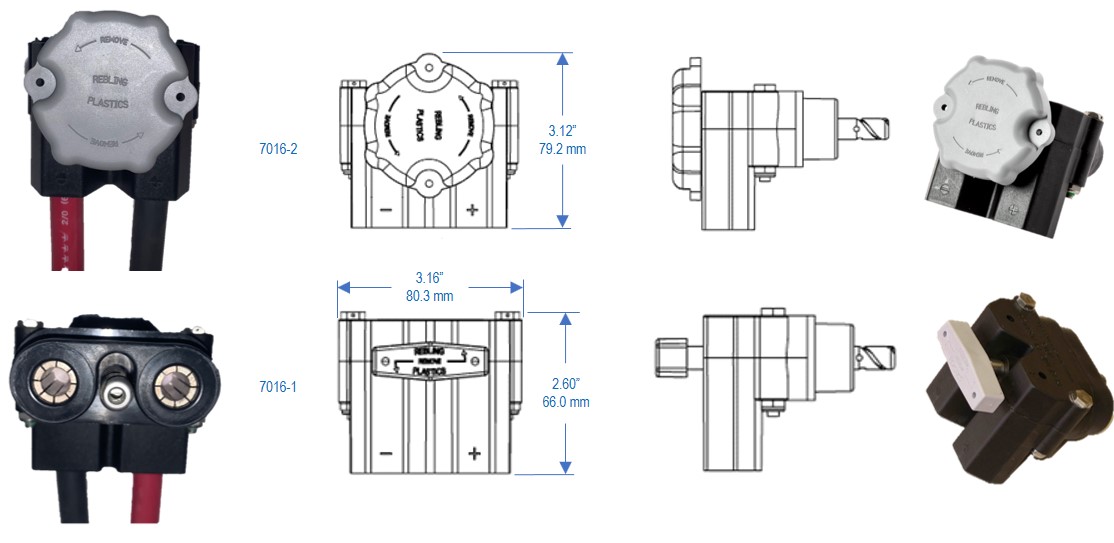

7016-1
T-Handle, 1/2" Shorter Backshell, Black
7016-2
Round Handle, 1/2" Shorter Backshell, Black




Mating
Receptacle
7002-9
Threaded Posts, Black
  7009-3
Threaded Posts, Black

7009-7
Threaded Posts, Brown



7009-51
EMI Shielded Threaded Posts, Grey


7002-3
Hollow Posts, Blue

7002-5-20
Threaded Posts, with Gasket, Pink

7002-5-30
Threaded Posts, Pink

7002-5-30G
Threaded Posts, Green
7002-7
Threaded Posts, Blue

7002-37
Blank Receptacle, Grey





Plug
Socket Gauge
Gauge29
Go/No Go Fixture
