250 amp SIP-style Lithium Battery Terminal
|
ELECTRICAL:
|
MECHANICAL:
|
ENVIRONMENTAL:
|

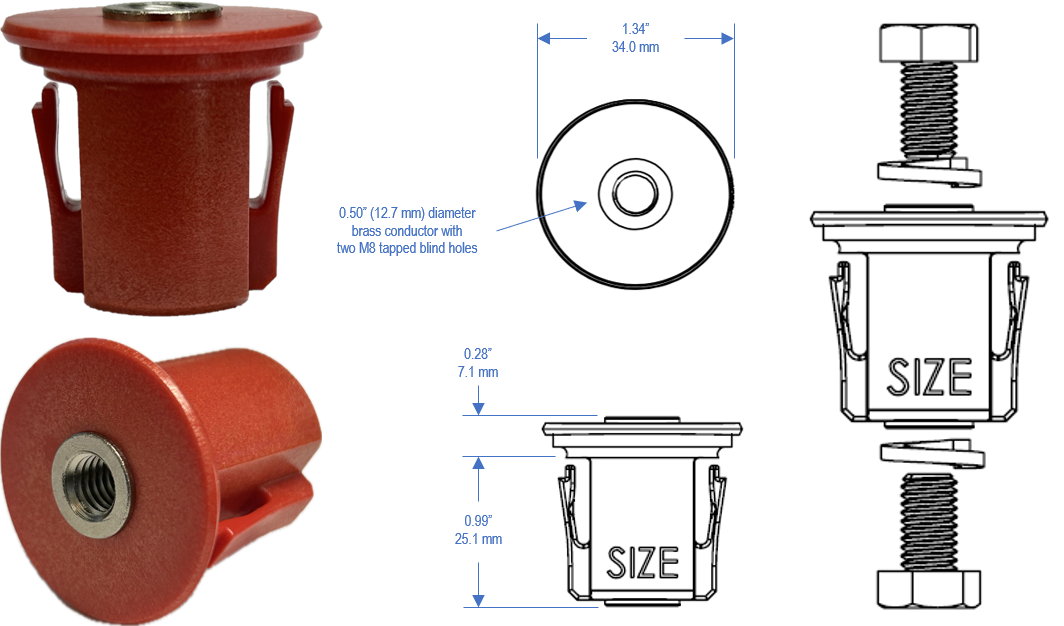

Our Snap Into Panel (SIP) Terminal represents a quantum leap forward in terminal technology by eliminating all panel-attachment hardware which reduces cost, minimizes assembly labor, and improves installation consistency and quality. The SIP is designed to be installed with a manual or pneumatic arbor press on panels from 0.057” to 0.255” thick. The patented SIP is designed for high vibration applications, has the same nickel-plated brass core as our other 250 amp terminals, accepts the same snap-on rigid or flexible covers, and stays cool at extreme charge or discharge rates. Equipping your design with these watertight terminals will enable system integrators to easily incorporate your battery modules into the MicroGrid, Reserve Power, Vehicle Electrification, or APU systems the end-user requires, regardless of battery chemistry. Whether you are coupling battery modules in series for a stationary power application, a genset SLI module, a datacenter reserve power system, or simply bringing DC power from the inside to the outside of a metal panel, our SIP Terminal, Covers, and Accessories were designed with your application in mind.
Product Information |
||||||

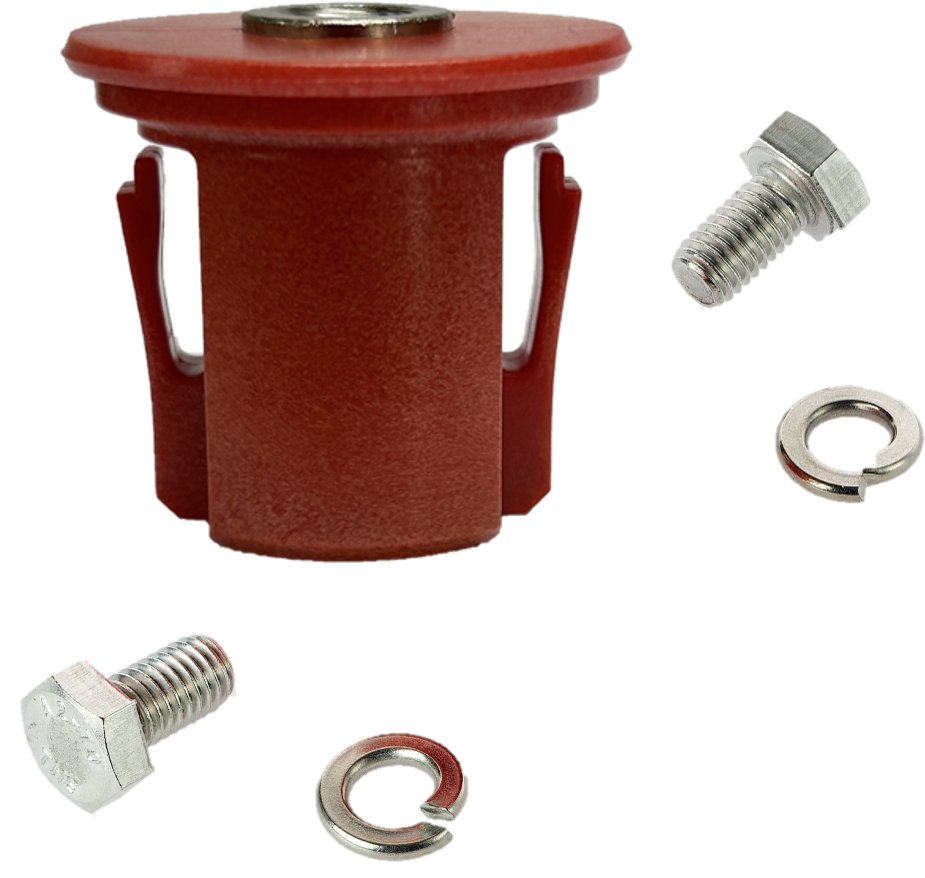

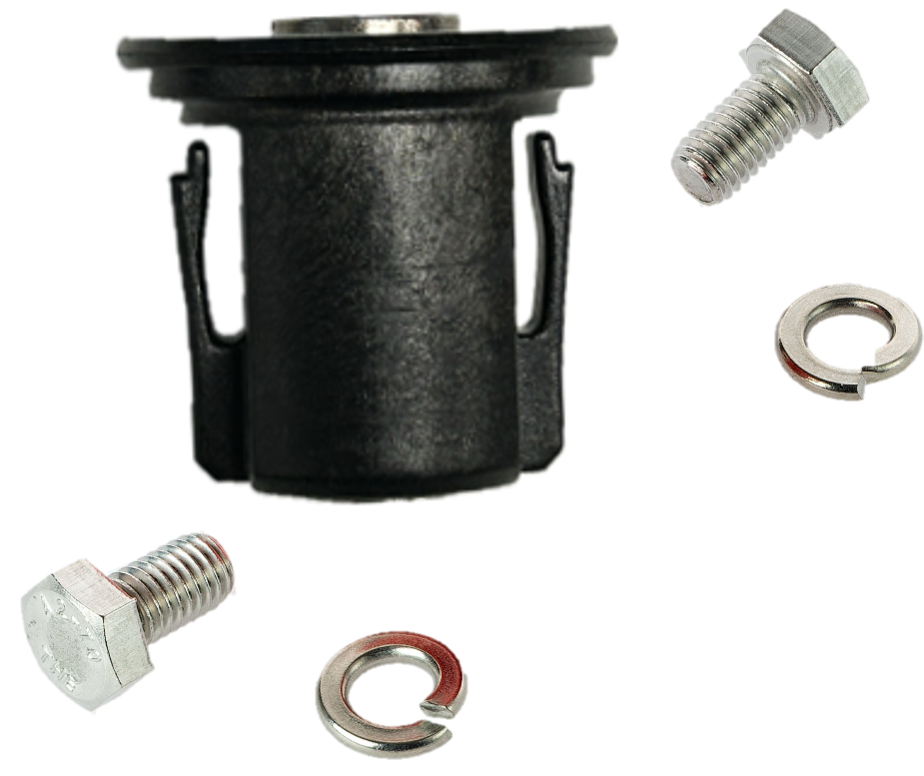

| Nickel-Plated Terminal Kit |
 |
SIP-250-062-B Black |
 |
SIP-250-062-R Red |
||
| SIP-250-077-B Black |
SIP-250-077-R Red |
|||||
 |
SIP-250-121-B Black |
 |
SIP-250-121-R Red |
|||
| SIP-250-250-B Black |
SIP-250-250-R Red |
|||||
| Short Rigid Snap-On Cover |
 |
698A1789-S-B Black |
 |
698A1789-S-R Red |
||
| Long Rigid Snap-On Cover |
 |
698A1789-L-B Black |
 |
698A1789-L-R Red |
||
| Flexible Snap-On Cover |
 |
713A1806-B Black |
 |
713A1806-R Red |
||
| Angled Covers for Two Cables |  |
850A1991-B Black |
 |
850A1991-R Red |
||
| Straight Covers for Two Cables |  |
850A1992-B Black |
 |
850A1992-R Red |
||
| O-Ring |  |
857A2014 Black |
||||
