250 amp SFT-style Imperial Feed Through Terminal

For complete technical information: Download Datasheet

Imperial Terminals are available exclusively through our authorized distributor, Flame Enterprises.

ELECTRICAL:

Rated Current 250 amps
Peak Current 1,500 amps
Rated Voltage 2,000 volts
Withstand Voltage 5,000 volts
Insulation Resistance 500 MΩ
Max Contact Resistance 70 μΩ

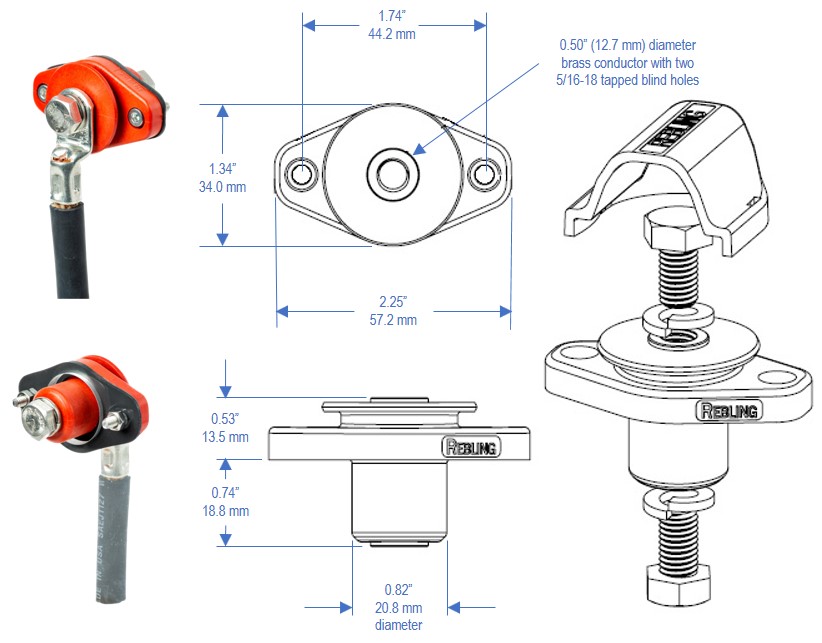

MECHANICAL:

Min Panel Thickness 0.025" (0.64 mm)
Max Cable Size 4/0 (110 mm2)
Mechanical Shock 50 Gs (3 axes)
Vibration
 10 Gs (3 axes)

ENVIRONMENTAL:

Flammability UL94V-0
Sealing
 IP68
Operating Temp -40℃ to +125℃

Product Information

Nickel
Plated
Terminal
Kit		 SFT-P-B-516
Black		 SFT-P-R-516
Red		 SFT-P-E-516
Blue


Short
Rigid
Snap-On
Cover		 698A1789-S-B
Black		 698A1789-S-R
Red		 698A1789-S-E
Blue


Long
Rigid
Snap-On
Cover		 698A1789-L-B
Black		 698A1789-L-R
Red		 698A1789-L-E
Blue


Flexible
Snap-On
Cover		 713A1806-B
Black		 713A1806-R
Red		 713A1806-E
Blue


Angled Covers for Two Cables 850A1991-B
Black		 850A1991-R
Red


Straight Covers for Two Cables 850A1992-B
Black		 850A1992-R
Red


Gasket   716A1814
Black
