1,000 amp XFT-style Imperial Feed-Through Terminals

For complete technical information: Download Datasheet

Imperial Terminals are available exclusively through our authorized distributor, Flame Enterprises.

ELECTRICAL:

Rated Current 1,000 amps
Peak Current 5,000 amps
Rated Voltage 2,000 volts
Withstand Voltage 5,000 volts
Insulation Resistance 500 MΩ
Max Contact Resistance 70 μΩ

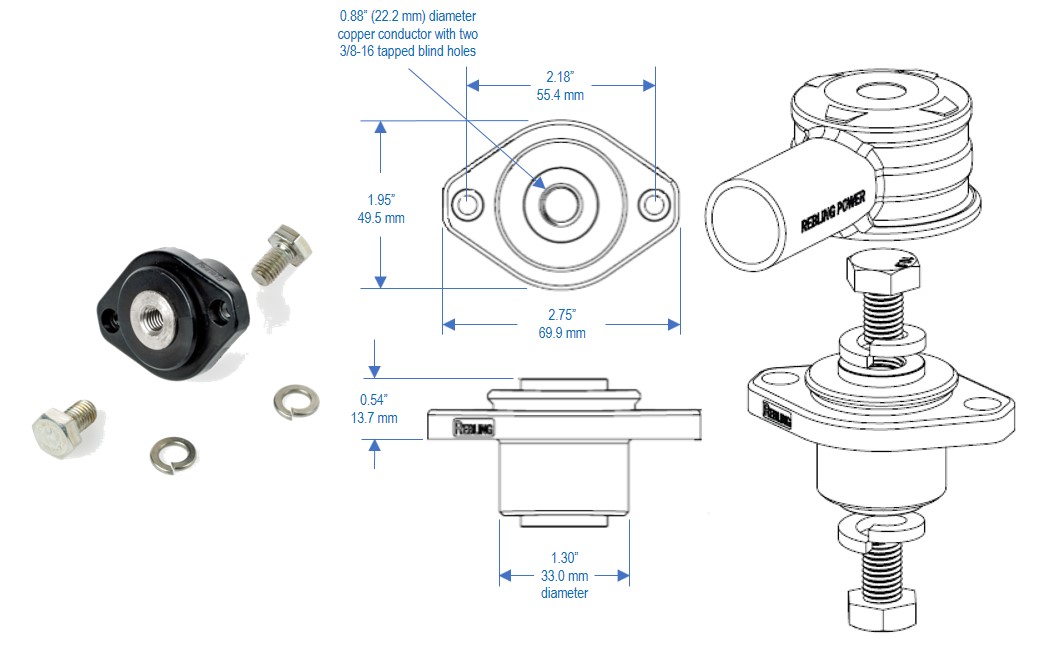

MECHANICAL:

Min Panel Thickness 0.025" (0.64 mm)
Max Cable Size 750 MCM (380 mm2)
Mechanical Shock 50 Gs (3 axes)
Vibration
 10 Gs (3 axes)

ENVIRONMENTAL:

Flammability UL94V-0
Sealing
 IP68
Operating Temp -40℃ to +125℃

Product Information

Nickel
Plated
Terminal
Kit		 XFT-N-B-38
Black		 XFT-N-R-38
Red



Flexible
Cover		 639A1830-B
Black		 639A1830-R
Red


Angled Covers for Two Cables Coming Soon! 850A1991-B
Black		 Coming Soon! 850A1991-R
Red


Straight Covers for Two Cables Coming Soon! 850A1992-B
Black		 Coming Soon! 850A1992-R
Red



Gasket		 720A1817
Gasket
