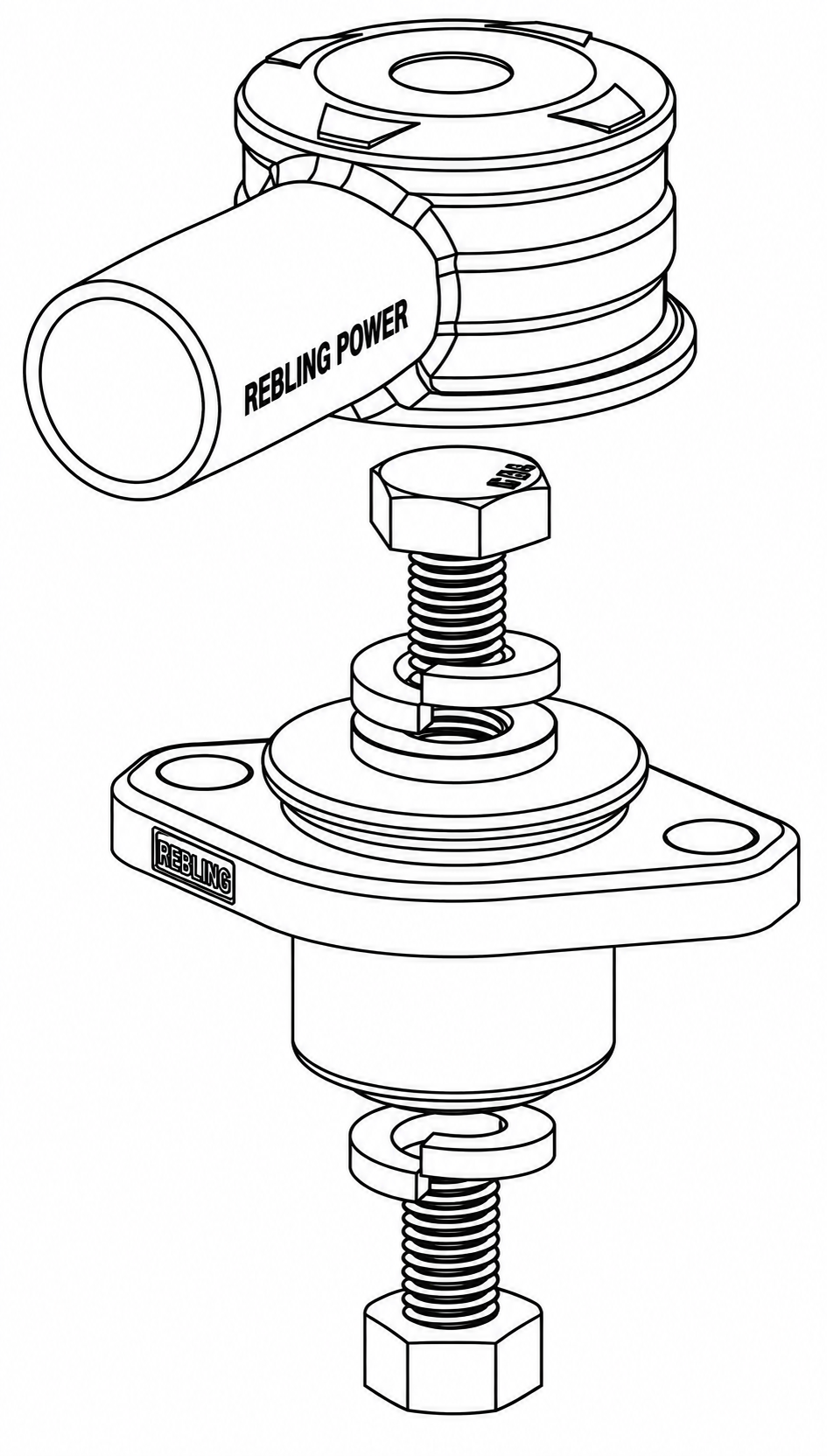

1,000 amp XFT-style Lithium Battery Terminal

For complete technical information: Download Datasheet

ELECTRICAL:

Rated Current 1,000 amps
Peak Current 5,000 amps
Rated Voltage 2,000 volts
Withstand Voltage 5,000 volts
Insulation Resistance 500 MΩ
Max Contact Resistance 70 μΩ

MECHANICAL:

Min Panel Thickness 0.025" (0.64 mm)
Max Cable Size 750 MCM (380 mm2)
Mechanical Shock 50 Gs (3 axes)
Vibration
 10 Gs (3 axes)

ENVIRONMENTAL:

Flammability UL94V-0
Sealing
 IP68
Operating Temp -40℃ to +125℃

Product Information

Nickel
Plated
Terminal

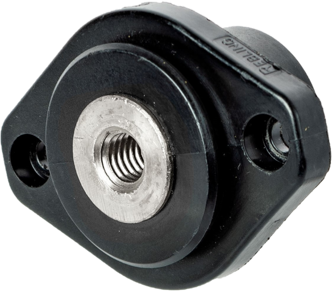

Kit		 XFT-N-B

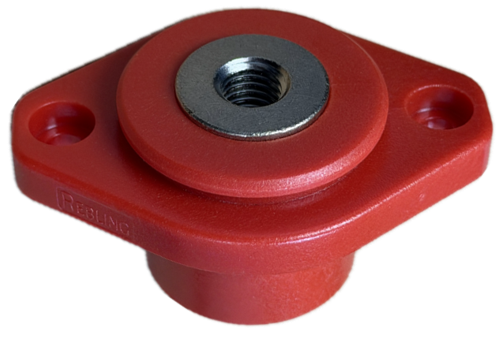

Black		 XFT-N-R
Red



Flexible
Cover		 639A1830-B
Black		 639A1830-R
Red

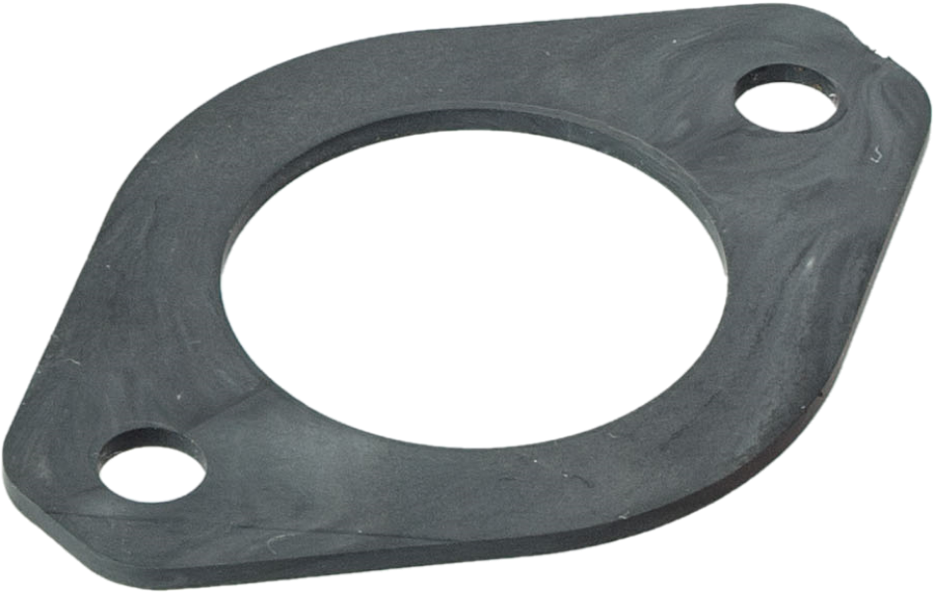

Gasket		 720A1817
Gasket
