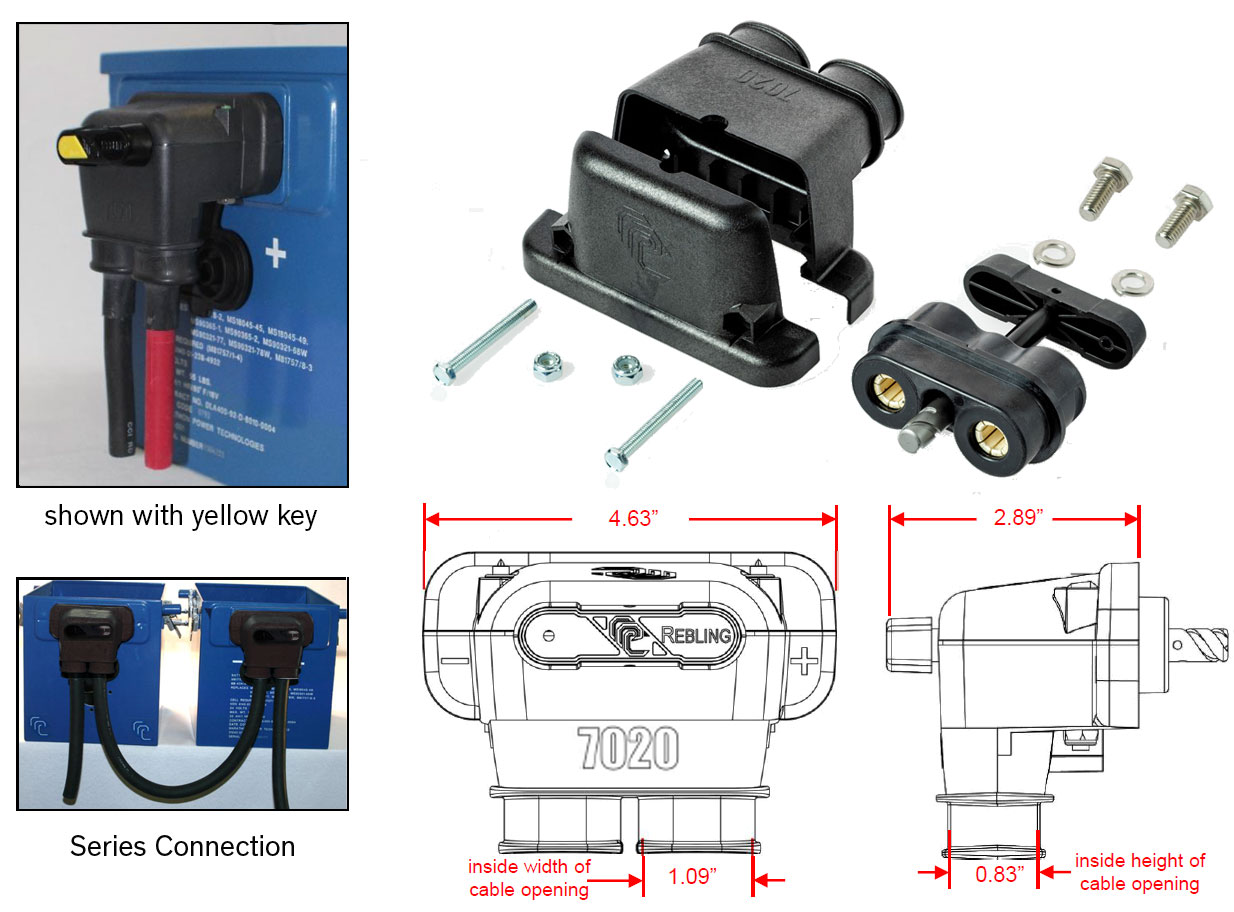

7020 Keyable Cable-Mounted Plug

For complete technical information: Download Datasheet

ELECTRICAL:

Rated Current 500 amps
Peak Current 3,000 amps
Rated Voltage 1,500 volts
Withstand Voltage 3,000 volts
Max Contact Resistance 70 μΩ

MECHANICAL:

Max Cable Size 4/0 (110 mm2)
Mechanical Shock 50 Gs (3 axes)
Vibration
 10 Gs (3 axes)

ENVIRONMENTAL:

Flammability UL94V-0
Sealing
 IP56
Operating Temp -40℃ to +125℃

Product Information

Plug
Kit		 7020-T
Cable Mounted Plug Kit (Black)		 7020-O
Cable Mounted Plug Kit (Orange)


Magnet & Magnetic
Switch
Kit
 643A1757
HVIL Switch & Magnet Kit

643A1647

1/8 x 5/8 Magnet for HVIL Plug

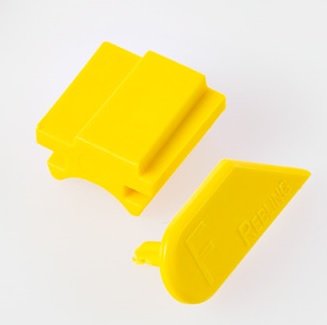

Key
fits all "T" handle plugs and 7010 Series receptacles		 684A1765-A
Receptacle Key
(Orange)		 684A1765-B
Receptacle Key
(Blue)		 684A1765-C
Receptacle Key
(Green)
  684A1765-D
Receptacle Key
(Pink)		 684A1765-E
Receptacle Key
(White)		   684A1765-F
Receptacle Key
(Yellow)


Mating Receptacle 7010-3
Black
