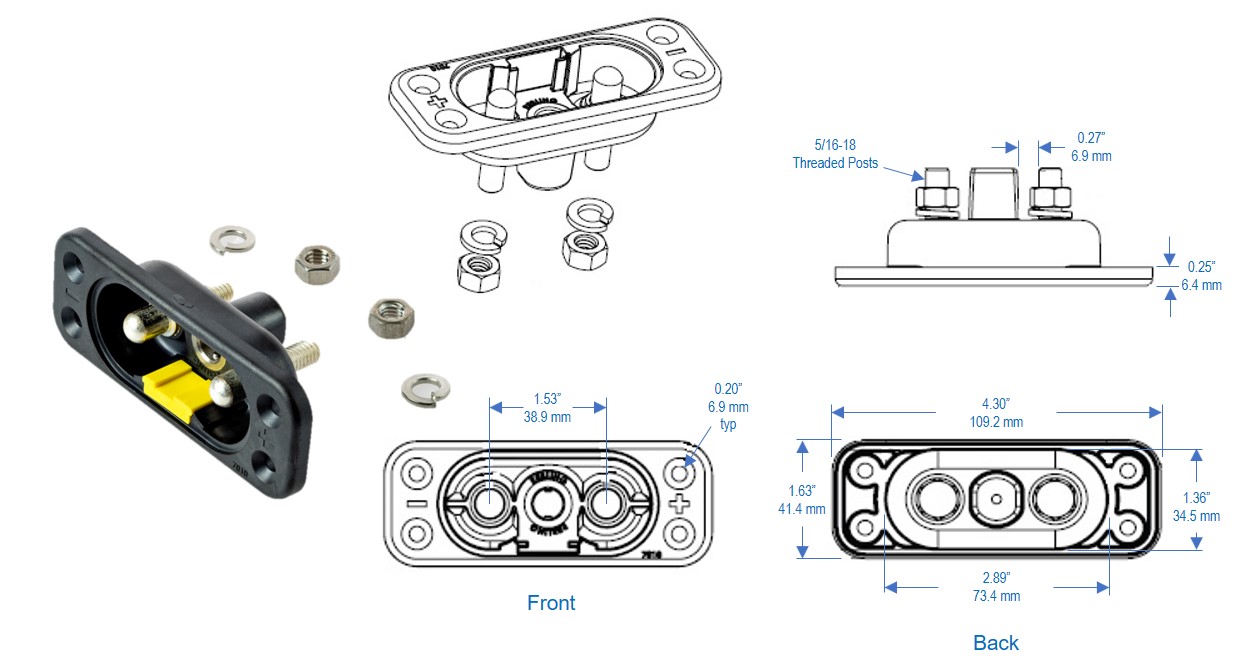

7010 Keyable Receptacle

For complete technical information: Download Datasheet



ELECTRICAL:

Rated Current 500 amps
Peak Current 3,000 amps
Rated Voltage 1,500 volts
Withstand Voltage 3,000 volts
Max Contact Resistance 60 μΩ

MECHANICAL:

Max Cable Size 4/0 (110 mm2)
Mechanical Shock 50 Gs (3 axes)
Vibration
10 Gs (3 axes)

ENVIRONMENTAL:

Flammability UL94V-0
Sealing
IP68
Operating Temp -40℃ to +140℃

Product Information


Receptacle
Kit
7010-3
Black





Backshell 644A1626
1.49" inside depth
644A1627
2.49" inside depth




Receptacle
Key

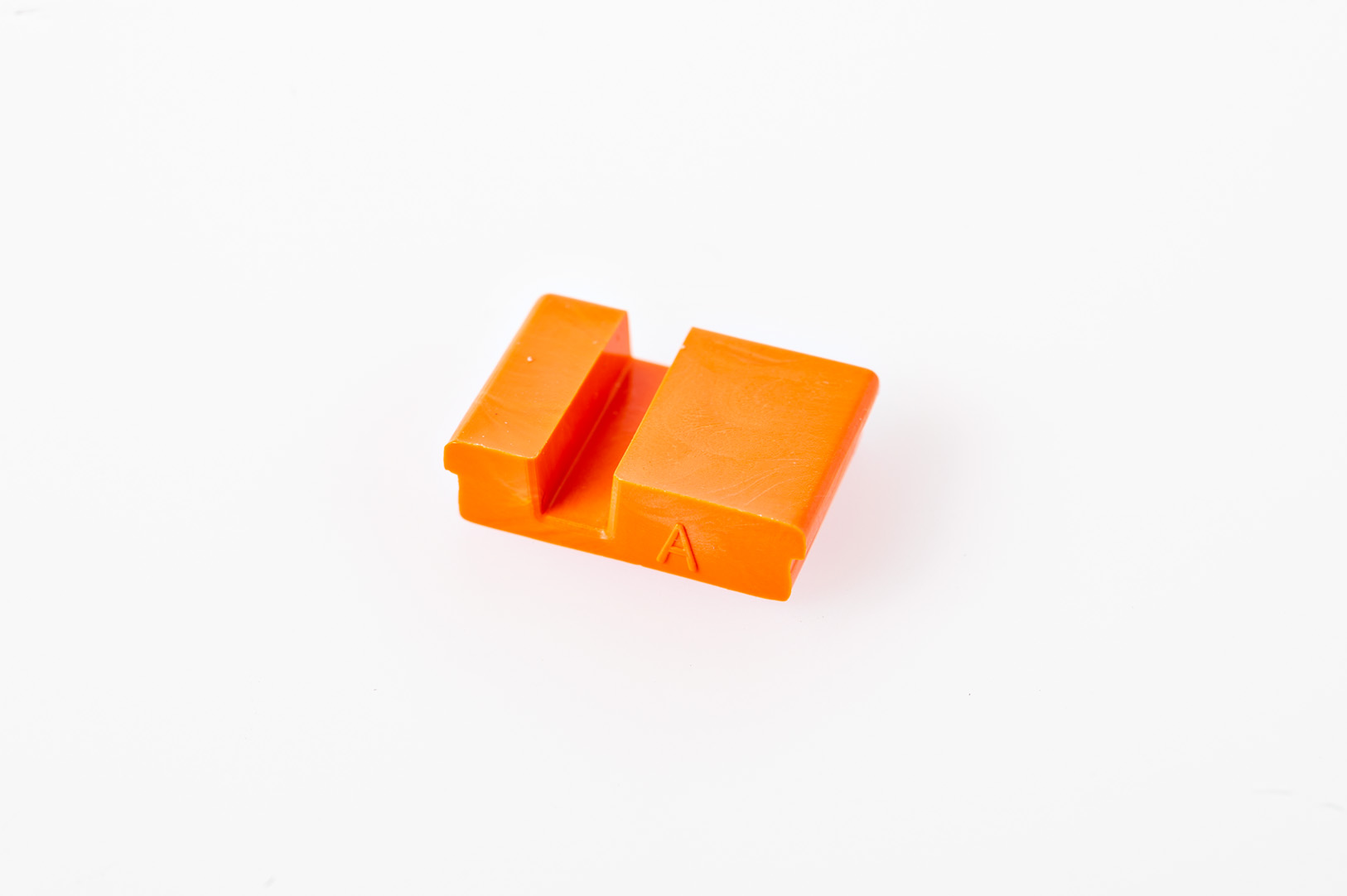

  684A1763-A
Receptacle Key
(Orange)

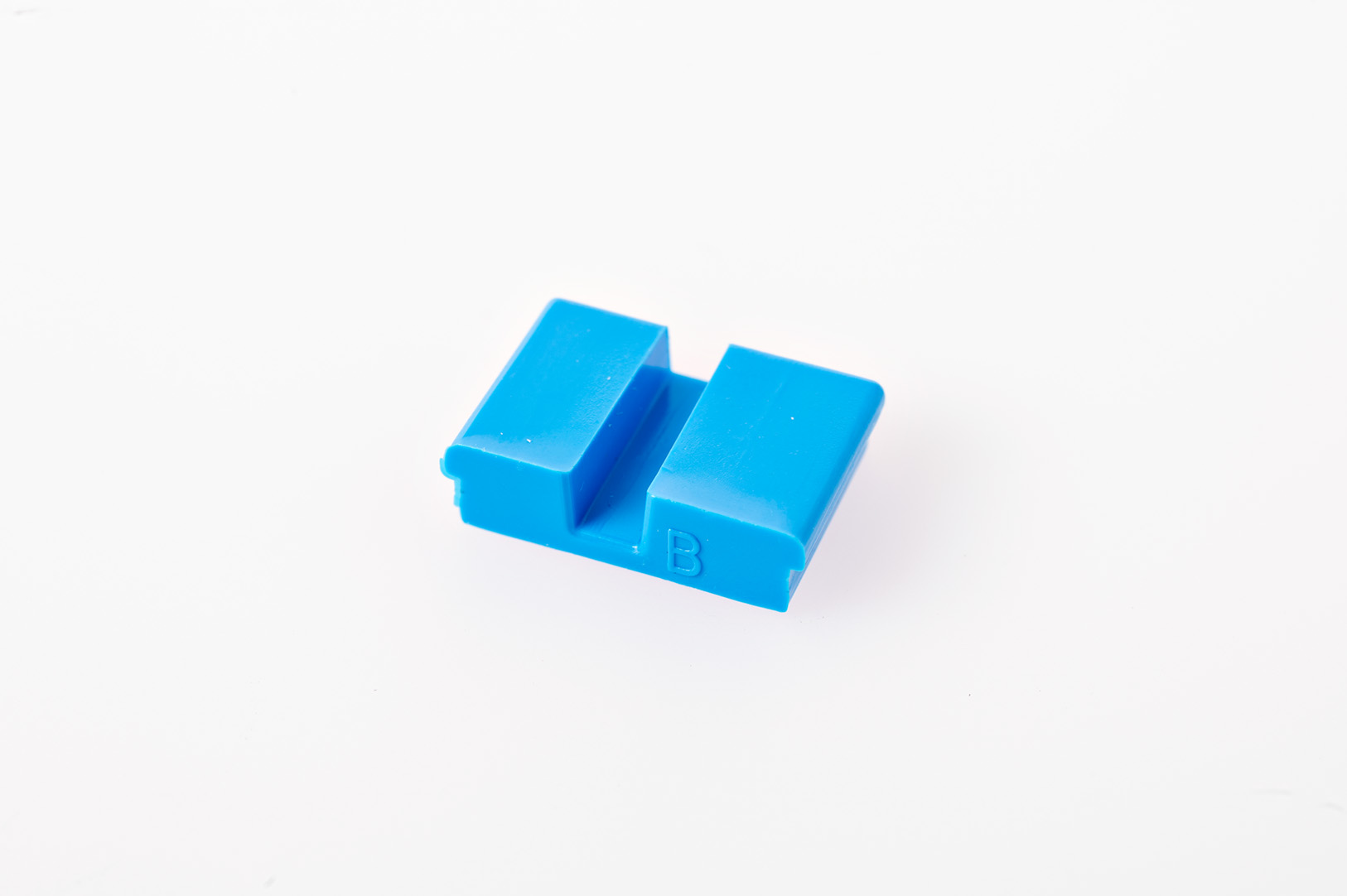

  684A1763-B
Receptacle Key
(Blue)

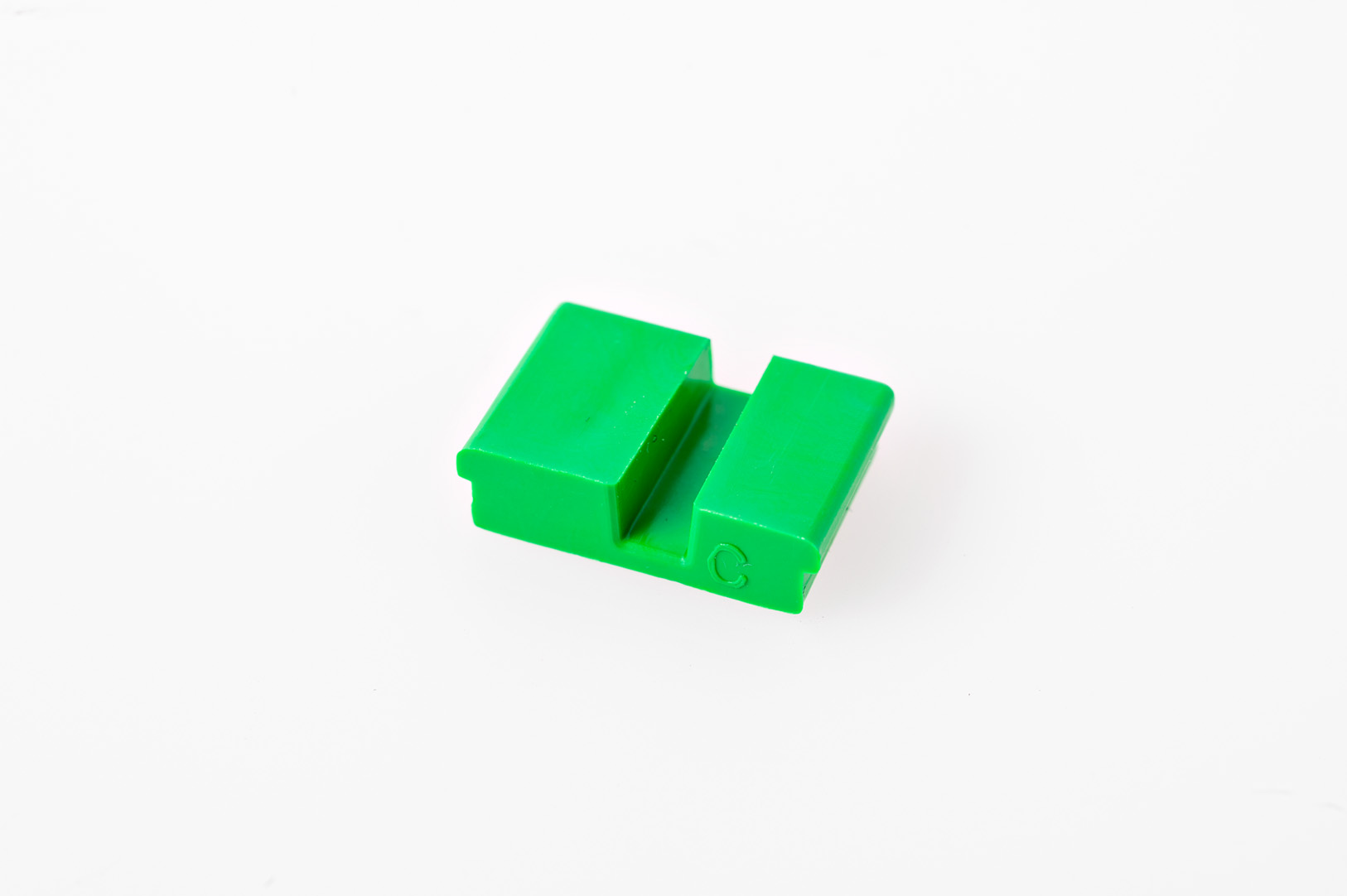

  684A1763-C
Receptacle Key
(Green)

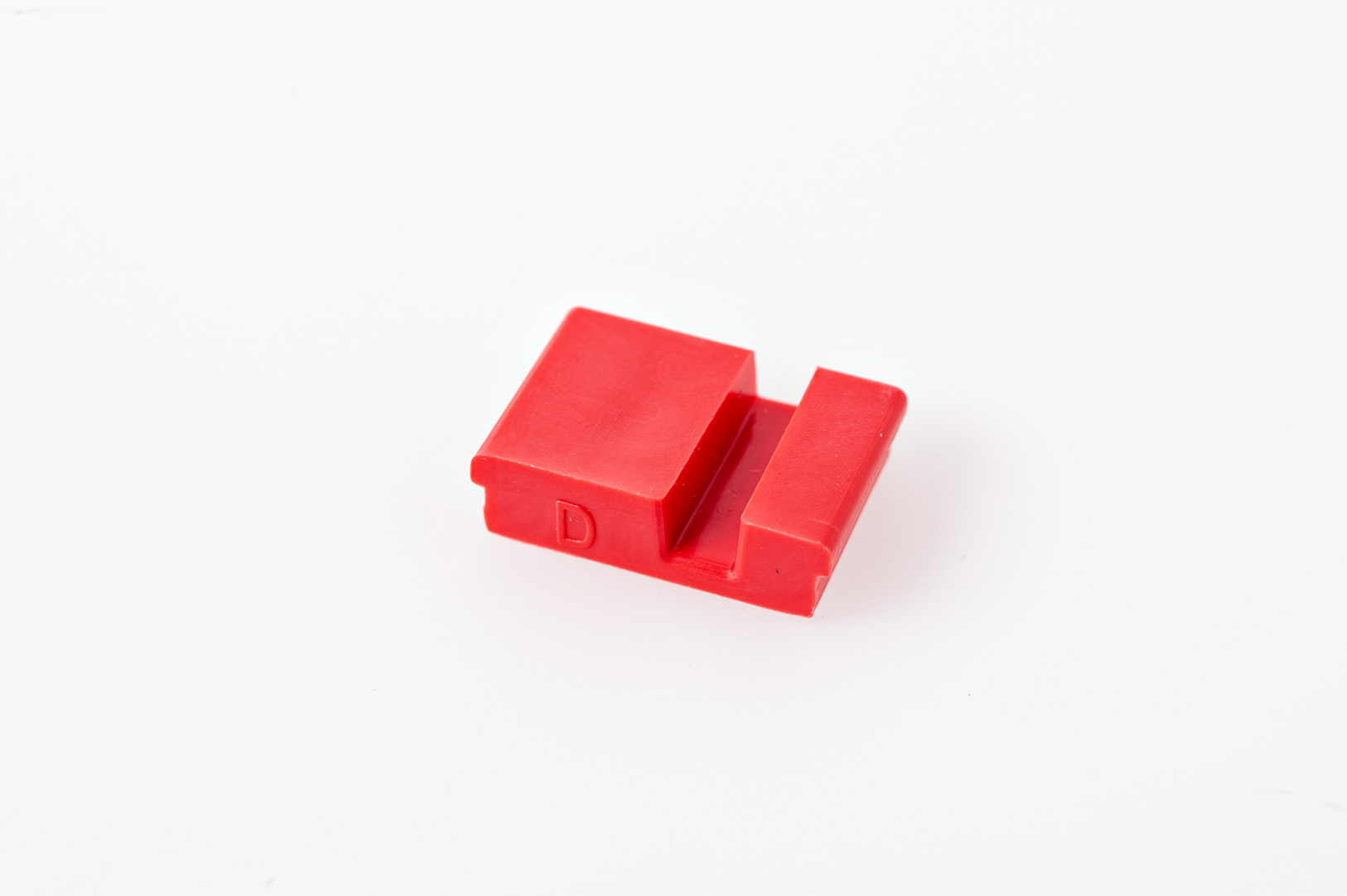

    684A1763-D
Receptacle Key
(Pink)

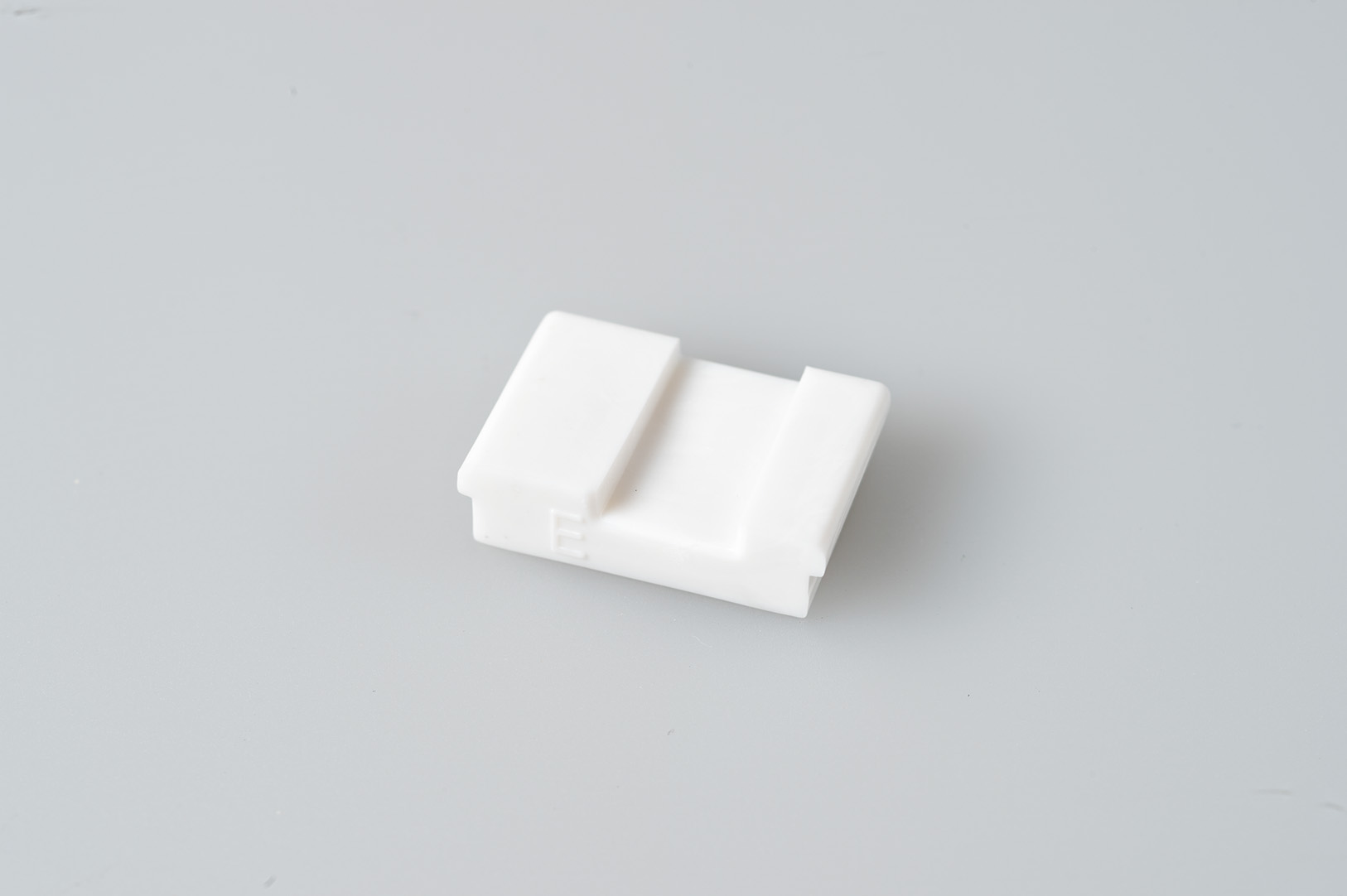

  684A1763-E
Receptacle Key
(White)

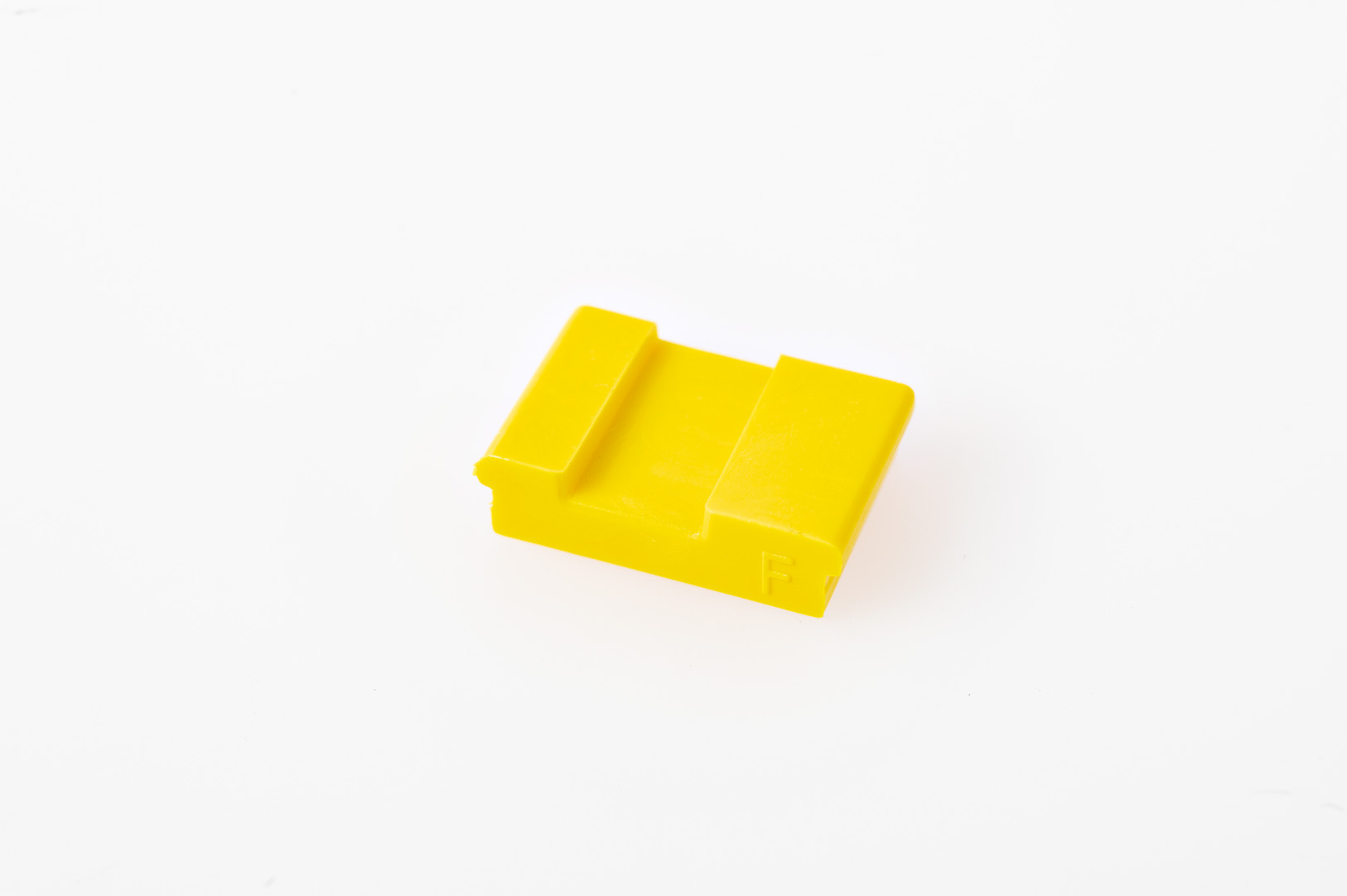

684A1763-F
Receptacle Key
(Yellow)



Gasket 685A1766
Gasket with Dust-Cover, Black
100A1784
Foam Gasket, Black




Mates with these Plugs 7020-T
Cable Mounted Plug Kit (Black)
7020-O
Cable Mounted Plug Kit (Orange)
